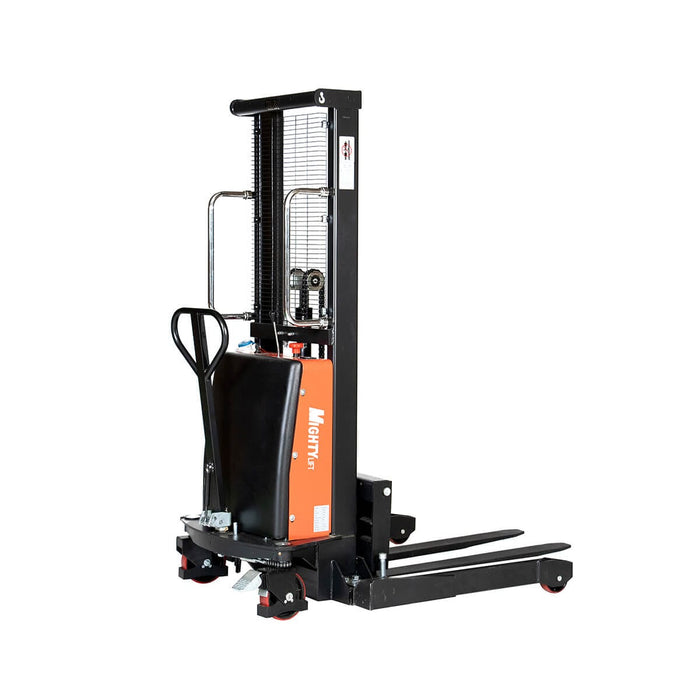

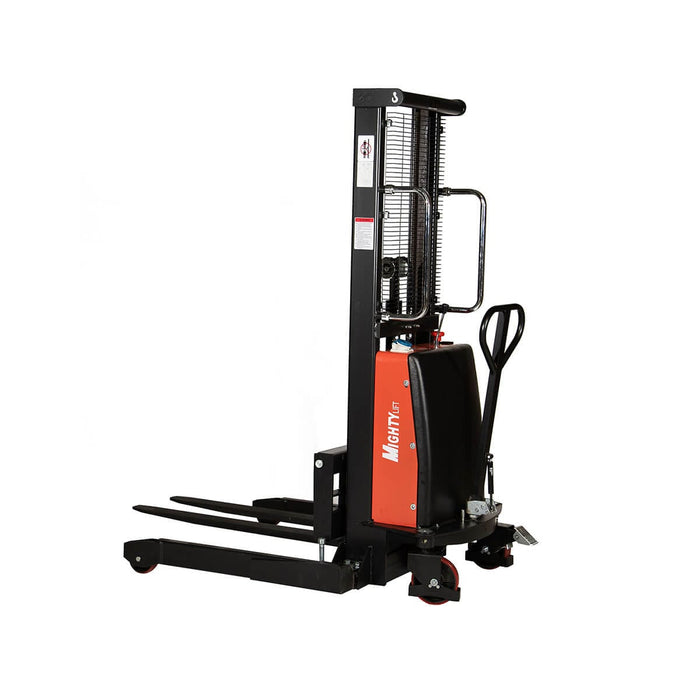

Mighty Lift SEST2205 Semi-Electric Stacker 63″ Lift Height

The Mighty Lift SEST2205 is a semi-electric straddle stacker that lifts a 2,200 lb load to a maximum fork height of 63 inches at a 24-inch load center. A 1.2 Hp electric motor raises and lowers the forks at the push of a button, while the operator positions the unit by hand — a layout that removes the strain of manual stacking without the cost or footprint of a fully powered forklift.

Adjustable straddle legs open from 38 to 50 inches on the inside (46 to 58 inches outside), so one unit handles a range of pallet and skid widths instead of being locked to a single size. The forks adjust as well to suit different load footprints. With an overall length of 66.5 inches and a 59-inch turning radius, the SEST2205 maneuvers in the tighter staging areas, stockrooms, and dock spaces where a counterbalanced truck won't fit.

A hard chrome-plated lift piston carries the load for long service life under repeated cycling, paired with a heavy-duty mast. The unit ships with an integrated 150 Ah maintenance-free battery and a 110V charger, so it runs on standard building power without a dedicated charging installation. This model reaches 63 inches; Mighty Lift also offers the SEST line in a taller 137-inch maximum-height configuration for higher stacking.

For operations weighing lift heights and capacities across walk-behind straddle stackers, the SEST2205 covers light-to-mid-duty staging at a sub-forklift price.

• Electric lift and lower driven by a 1.2 Hp motor; the operator pushes to maneuver and position by hand.
• Hard chrome-plated lift piston for long, repeatable service under continued cycling.
• Adjustable straddle legs — 38 to 50 inches inside — to lift pallets and skids of varying widths.
• Adjustable forks to accommodate different load footprints.
• Heavy-duty mast construction for stability through the full 63-inch lift range.
• Integrated 150 Ah maintenance-free battery with a 110V charger, ready to run on standard building power.

How high and how much does the SEST2205 lift?

It lifts up to 2,200 lb at a 24-inch load center to a maximum fork height of 63 inches, with a lowered fork height of 2.125 inches.

Does it drive itself?

Lifting and lowering are electric. Positioning is manual — the operator pushes the unit to maneuver it into place.

What pallet and skid sizes does it handle?

The straddle legs adjust from 38 to 50 inches inside (46 to 58 inches outside), and the forks are adjustable. Forks are 42 inches long and 4 inches wide.

What power does it need?

It uses an integrated 12V / 150 Ah maintenance-free battery and a 110V charger, so it runs on standard building power.

How much space does it need to turn?

Overall length is 66.5 inches with a 59-inch turning radius, suited to tighter staging and stockroom aisles.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
