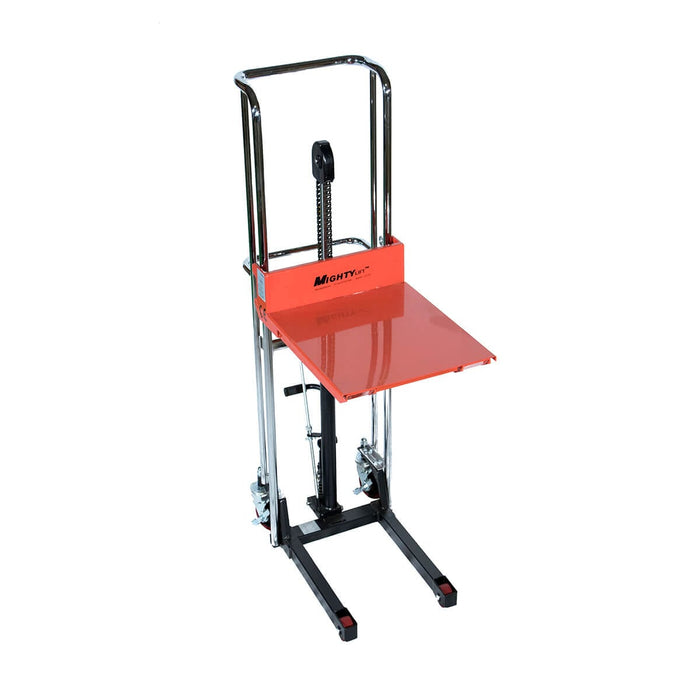

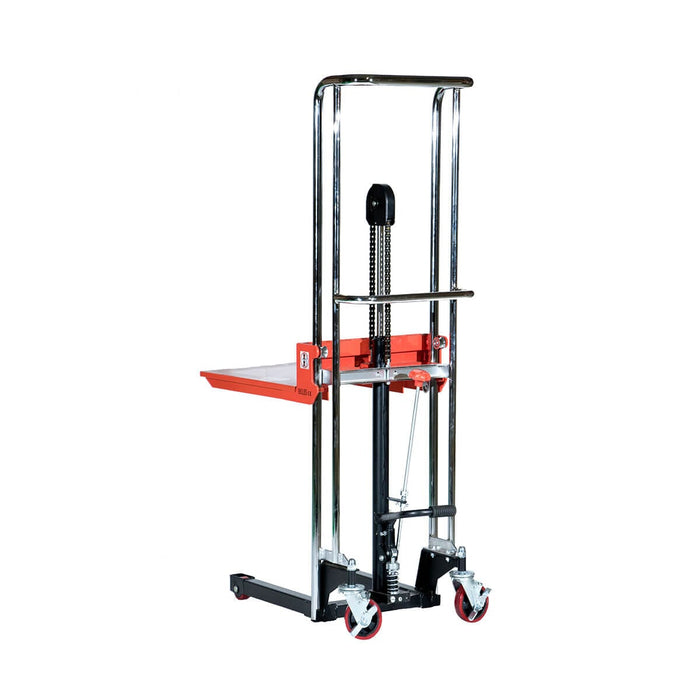

Mighty Lift MPSL0805 Lift-Out Platform Stacker

The Mighty Lift MPSL0805 is a manual platform stacker that raises loads up to 880 lbs to a maximum lifting height of 56 inches with a foot-pedal hydraulic lift. A lift-out platform sits over a pair of forks, giving the unit two ways to carry a load: the flat platform for boxes, totes, and cartons, and the forks underneath for skids and small pallets once the platform is lifted out of the way.

Operation is fully manual. A push-down foot pedal raises the platform to working height, and a notched release knob lowers it under control. A cushioned descending mechanism slows the platform on the way down to guard against sudden load drop, tilting, and damage. The unit rolls on 5-inch swivel casters with side locks that immobilize it once positioned, so a load can be held at a fixed working height for order picking, machine feeding, assembly, and general workshop tasks.

The frame is reinforced high-tensile steel, with corrosion-resistant chrome-plated guide rails and push handles. At a net weight of 200 lbs and an overall width of 24 inches, the MPSL0805 passes through standard doorways and aisles and can be repositioned by a single operator. It ships via freight — contact Forklift King to arrange delivery.

• Lift-out platform over forks — the platform carries flat loads, and the forks underneath take skids and small pallets when the platform is removed.
• Integrated pump and hydraulic cylinder — combining the pump and lift cylinder in one unit reduces the connectors and seals where hydraulic leaks typically start.
• Reinforced high-tensile-strength frame for rigidity under load.
• Cushioned descending mechanism slows the platform on descent to prevent sudden load drop, tilting, and damage.
• Push-down foot pedal raises the platform to working height and folds out of the way when not in use.
• Notched release knob sits within easy reach and grips securely for smooth, controlled lowering.
• Chrome-plated rails and push handles resist corrosion and keep the unit easy to move and position.
• 5-inch swivel casters with side locks immobilize the unit once it is in position.

One (1) Year or 2,000 Usage Hours Limited Parts Warranty on major components, whichever occurs first. Ninety (90) Day Warranty on batteries, battery chargers, wheels, bearings, brakes, and other wear items. Parts replacement only; labor not included.

Manual and technical documents available on request — contact support@forkliftking.com or call +1 (307) 441-9566.
