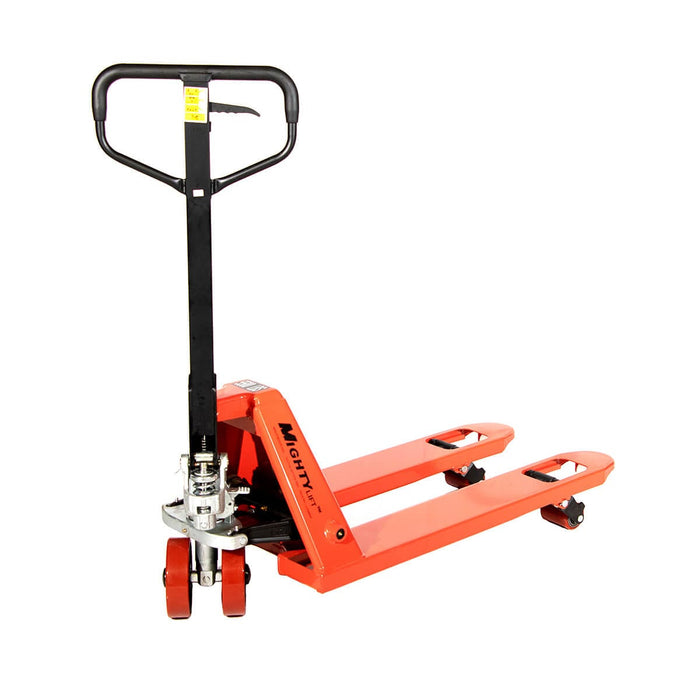

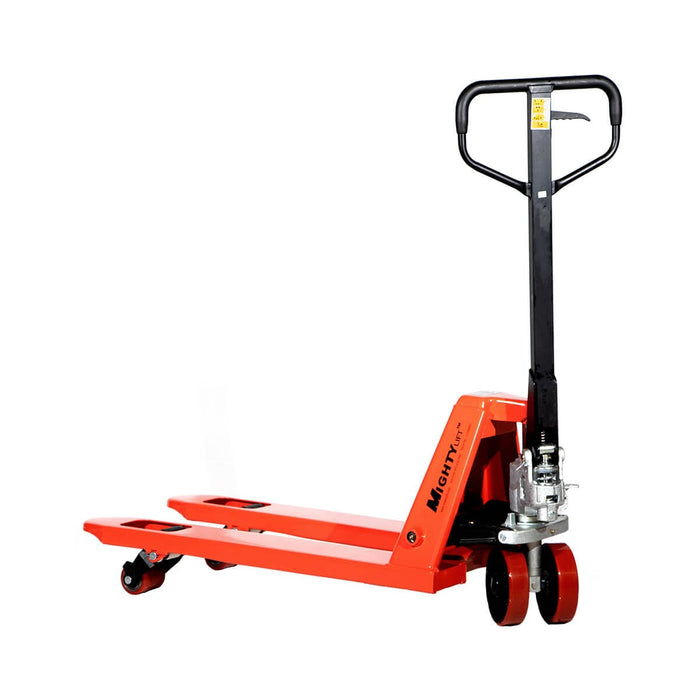

Mighty Lift ML2036 Short & Narrow Pallet Jack

The Mighty Lift ML2036 is a short-fork, narrow-frame pallet jack built for the spaces a standard unit cannot reach. It carries up to 5,500 lbs on forks that measure 20.5 inches across the outside and just 36 inches long, so it moves loads through compact aisles, cooler doorways, retail backrooms, and onto partial or undersized pallets where a full 48-inch fork will not fit.

The frame is reinforced high-tensile steel with an added 9-inch handle reinforcement, and the hydraulic pump is galvanized with built-in overload protection to resist corrosion in wash-down and outdoor use. A cushioned descending mechanism lowers loads under control instead of dropping them, and adjustable push rods keep the forks stable to protect both the load and the unit.

• 5,500 lb capacity for heavy-duty loads in a compact footprint.
• Short 36-inch forks and a 20.5-inch outside width for confined aisles and partial pallets.
• Galvanized hydraulic pump with overload protection — corrosion-resistant and built to last.
• Reinforced high-tensile-strength frame with additional 9-inch handle reinforcement.
• Cushioned descending mechanism guards against sudden load drops.
• Adjustable push rods stabilize the load and help prevent fork damage.
• Ergonomic handle with a shock-proof grip for comfortable, all-condition operation.
• 3-position hand control (Raise, Lower, Neutral) plus a foot-control mechanism for precise load management.

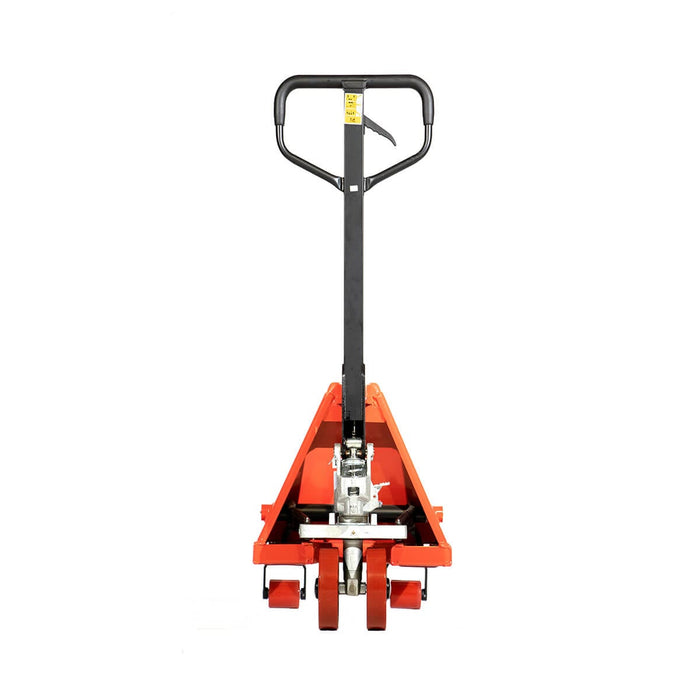

• Entry and exit rollers with 7-inch polyurethane steering wheels and 3-inch polyurethane load wheels for smooth movement.
• 210° steering arc for sharp turns in tightly constrained areas.

What are the fork dimensions on the ML2036?

The forks are 20.5 inches across the outside and 36 inches long, with 6.3-inch-wide individual forks and a 7.87-inch gap between them. Lowered fork height is 2.9 inches and raised height is 7.6 inches.

How much weight can the ML2036 handle?

The ML2036 is rated to lift and move loads up to 5,500 lbs.

What safety features does it include?

It uses a galvanized hydraulic pump with overload protection, a cushioned descending mechanism that prevents sudden load drops, and adjustable push rods that stabilize the load and protect the forks from tilt and damage.

Can the ML2036 be used outdoors?

Yes. The corrosion-resistant galvanized pump and reinforced high-tensile-strength frame make it suitable for both indoor and outdoor use across varying conditions.

How does it keep the operator comfortable in tight spaces?

The handle has a shock-proof ergonomic grip, the 3-position hand control and foot-control mechanism make load handling precise, and the 210° steering arc lets the operator maneuver sharply in narrow areas.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
