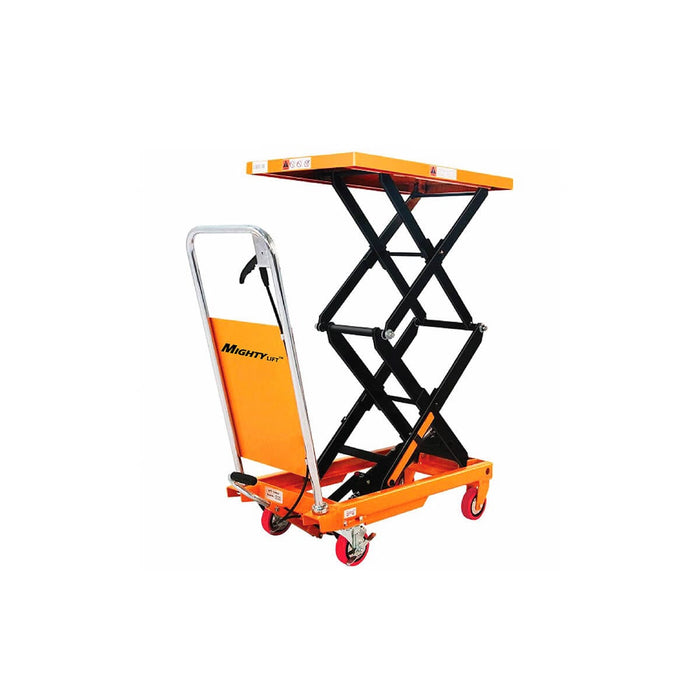

Mighty Lift LTD800 Scissor Lifting Table 51″ Height

The Mighty Lift LTD800 is a mobile, double-scissor hydraulic lift table that raises loads to a comfortable working height so operators stop bending over pallets, crates, and parts bins. Its double scissor action carries a 770 lb capacity through a travel range of 13.77 in at rest to 51.2 in fully raised — enough to move a load from floor level up to bench or shoulder height without a second handling step.

Raising is done with a foot-action lever, leaving both hands free for the load; lowering runs through a hand release lever with a cushioned descent for controlled, gradual setdown. The all-steel frame is built for repeated heavy cycles, and a chrome-plated hydraulic ram with an overload by-pass valve protects the cylinder if a load runs over capacity. Polyurethane casters — with wheel locks on the two swivel casters — let one person reposition the table across a shop or warehouse and hold it in place once parked.

With a 36 in by 20 in platform and a rated operating range of -4°F to 104°F, the LTD800 suits office, factory-floor, and most warehouse settings where loads need to be lifted, positioned, and moved without straining the operator.

• Heavy-duty double scissor action with a lift range of 13.77 in to 51.2 in
• 770 lb rated load capacity
• Rugged all-steel construction built for heavy loads
• Chrome-plated hydraulic ram for dependable cylinder service life
• Overload by-pass valve to protect against over-capacity loads
• Foot-action lever raises the platform hands-free
• Hand release lever with cushioned descent for controlled lowering
• Polyurethane casters with wheel locks on the two swivel casters
• Rated for operating temperatures from -4°F to 104°F

Product manual and technical documents for the LTD800 are available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
