Description

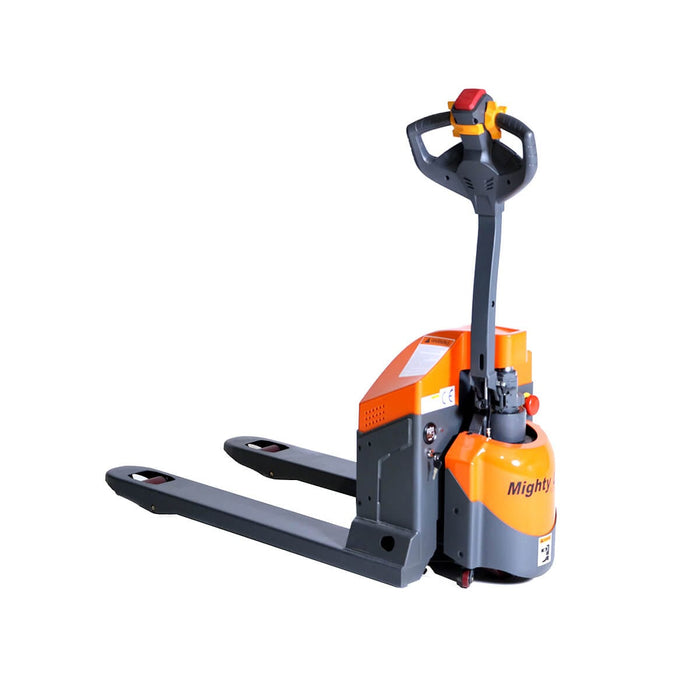

-The Mighty Lift EPT33B is a fully electric walk-behind pallet truck rated to move 3,300 lb at a 24-inch load center. Both lifting and travel run on battery power, so the operator guides the load rather than hand-pumping a handle or muscling it across the floor.
At 27 inches wide overall with a 56-inch turning radius, the EPT33B is sized for narrow spaces and small warehouses, manufacturing floors, retail back rooms, and transportation work. It is also offered in a 21-inch overall width for tighter aisles. A 24V 65Ah gel battery and an integrated onboard charger let the unit recharge from a standard outlet wherever it ends the shift, so no separate charging station is required.
Features
-- Fully electric lift and drive rated to 3,300 lb, with no hand-pumping.
- Long, ergonomic tiller handle with easy-to-reach control buttons.
- Emergency reverse button drives the unit forward and away from the operator when activated.
- Emergency shut-off switch deactivates the unit when depressed.
- Integrated onboard charger for charging from a standard outlet wherever the unit goes.

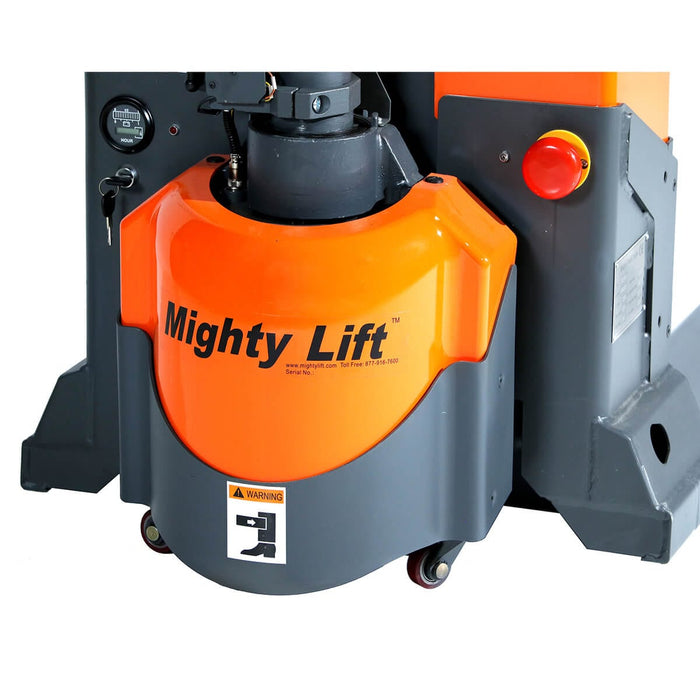

- Metal wrap-around cover helps guard against foot-related accidents.
- Stabilizing casters on either side of the drive wheel resist tipping when handling loads.
- 56-inch turning radius for maneuvering in areas with limited space.
- Available in 21-inch and 27-inch overall widths.
What's Included
-- 24V 65Ah gel battery, installed
- Integrated onboard battery charger
Specifications
-| Mighty Lift EPT33B Specifications | |
|---|---|
| Load Capacity | 3,300 lbs |
| Load Center Distance | 24 in |
| Max Lift Height | 7.5 in |
| Fork Height, Lowered | 3 in |
| Overall Length | 65 in |
| Overall Width | 27 in (21 in option available) |
| Length of Fork Face | 20 in |
| Fork Dimensions (H x W x L) | 2 x 6 x 45 in |
| Width Overall Forks | 27 in |
| Turning Radius | 56 in |
| Aisle Width (31 x 47 pallet, lengthways) | 76 in |
| Tiller Height, Drive Position (min/max) | 28 / 49 in |
| Travel Speed (laden / unladen) | 2.7 / 3 mph |
| Drive Wheel | 7.68 x 2.75 in |
| Load Wheels | 2.91 x 3.66 in |
| Wheels (front / rear, x = driven) | 1x-2/4 |
| Battery | 24V / 65Ah gel |
| Battery Weight | 79 lbs |
| Service Weight (with battery) | 452 lbs |
| Shipping Weight | 502 lbs |
| Shipping Dimensions (L x W x H) | 65 x 40 x 53 in |
| Spec values shown are for the 27-inch overall-width model. | |
FAQ
-How much can the EPT33B lift?
It is rated for 3,300 lb at a 24-inch load center.
What widths does it come in?
The EPT33B is available in 21-inch and 27-inch overall widths.
Does it include a charger?
Yes. An onboard charger is integrated into the unit, so it recharges from a standard outlet without a separate charging station.
What battery does it use?
A 24V 65Ah gel battery.
How tight a space can it work in?
It has a 56-inch turning radius and needs roughly a 76-inch aisle to handle 31 x 47-inch pallets lengthways.
Documents
-Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
