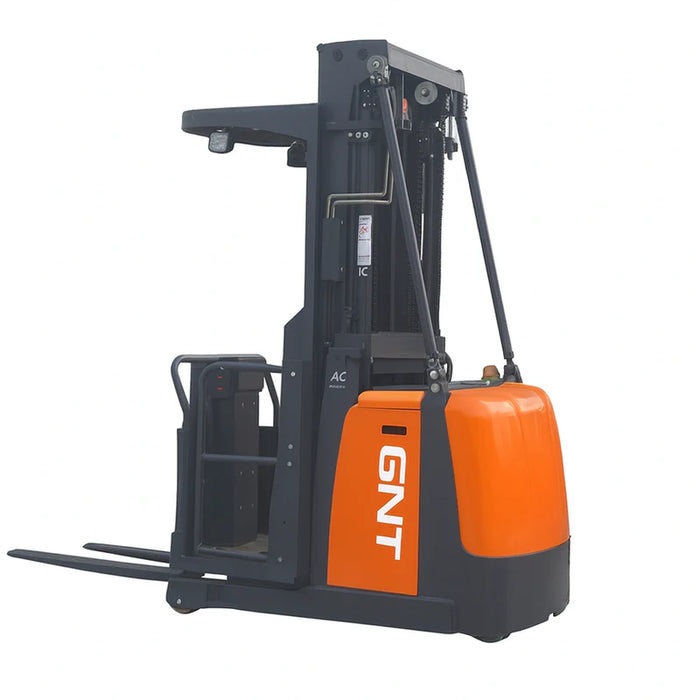

GNT GDF22-364Li Lithium Electric Order Picker

The GNT GDF22-364Li is a stand-on lithium electric order picker built for one job: pulling orders from racking, storage facilities, manufacturing floors, and warehouse pick faces. It carries a 2,200 lb load and raises to a 374-inch (about 31 ft) raised height on a triple mast, putting high-bay pick locations within reach of a single operator instead of a ladder or a second machine.

Drive comes from an AC drive system paired with electronic power steering, so acceleration and direction changes stay smooth and controlled under load. A maintenance-free 24V/350Ah lithium battery supplies the power and accepts fast charging from a matched 24V/50A lithium charger, keeping the machine working across long shifts without the watering and equalizing that flooded lead-acid packs demand. The chassis is steel with robotic welding, and polyurethane tires suit the smooth concrete of indoor pick aisles.

An ultra-small turning radius lets the GDF22-364Li work in narrow aisles and high-density storage without the swing room a counterbalanced truck needs. The operator stands on an ergonomic platform behind an intelligent control handle, protected by safety guardrails, overhead protection, and emergency braking for high-level picking. Adjustable forks plus an auxiliary fork let the operator stage and pick goods at different heights. Like other stand-on order pickers, the GDF22-364Li is purpose-built for picking at height rather than horizontal load transport.

• Maintenance-free lithium battery — the 24V/350Ah lithium pack delivers long runtime and fast charging with none of the watering or equalizing a lead-acid pack needs.
• AC drive system — smooth acceleration and precise control for reliable performance under heavy-duty, repetitive picking.
• Ergonomic operator platform — a spacious standing area with an intelligent control handle for comfortable long-hour operation.
• Ultra-small turning radius — maneuverability in narrow aisles and high-density warehouse storage.
• Enhanced safety protection — safety guardrails, overhead protection, and emergency braking for high-level work.
• Fork lifting function — adjustable forks plus an auxiliary fork raise and lower to pick goods at different heights.
• Electronic power steering — lighter steering effort and tighter directional control in tight aisles.
• Robotic-welded steel construction — a steel chassis built to take impacts, heavy usage, and repeated directional changes.

What is the rated load capacity?

The GDF22-364Li is rated for 2,200 lbs.

How high does it reach?

It raises to a 374-inch (about 31 ft) raised height on a triple mast, which is what lets a single operator pick from high-bay rack locations.

What battery and charger does it use?

It runs on a maintenance-free 24V/350Ah lithium battery and is matched with a 24V/50A lithium charger for fast charging between or during shifts.

What surfaces and aisles is it built for?

Polyurethane tires and an ultra-small turning radius suit smooth indoor concrete and narrow, high-density aisles. It is designed for indoor pick-face work, not uneven outdoor ground.

How does it ship?

This order picker ships via LTL freight. Contact Forklift King to arrange scheduling and delivery details for your location.

Manual and technical documents are available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
