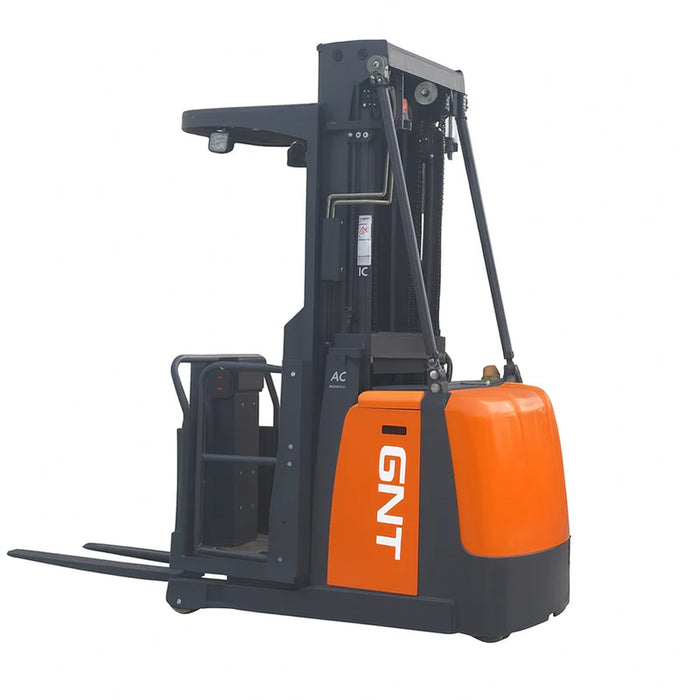

GNT GDF22-196Li Lithium Electric Order Picker

The GNT GDF22-196Li is a stand-on lithium electric order picker built for one job: pulling orders from racking and storage facilities, manufacturing floors, and high-density warehouses. It carries a rated capacity of 2,200 lb and raises the operator and forks to a 196-inch (16.33 ft) working height on a triple mast, so stock three and four levels up comes down without a ladder or a rolling stair.

Power comes from a maintenance-free 24V / 350Ah lithium battery driving an AC drive system, which delivers smooth acceleration and precise low-speed control for the start-stop rhythm of a picking shift. Lithium chemistry means opportunity charging between picks and no battery-room maintenance, and the unit is specified with a matched 24V / 50A lithium charger. Electronic Power Steering (EPS) and polyurethane tires keep the truck responsive in narrow aisles and tight, high-density layouts.

At a 196-inch pick height, operator protection carries the design. The GDF22-196Li uses safety guardrails, overhead protection, and emergency braking so the operator stays secured while working at the top of the mast. The forks are adjustable and include an auxiliary fork, and they raise and lower independently so goods can be picked and staged at different heights rather than at a single fixed level.

The frame is steel, joined with robotic welding for consistent, repeatable joints across the load-bearing structure. Among electric order pickers, the GDF22-196Li is positioned as a high-reach, low-maintenance picker for operations that run long shifts and value uptime over ceremony.

• Maintenance-free lithium battery — 24V / 350Ah lithium pack for long runtime, fast charging, and no battery-room upkeep.
• AC drive system — smooth acceleration and precise control under repetitive, heavy-duty picking cycles.
• Triple mast to 196 inches — raises operator and load to a 16.33 ft working height for high-level picking.
• Adjustable forks with auxiliary fork — forks raise and lower independently to pick and stage goods at varying heights.
• Electronic Power Steering (EPS) — responsive steering for narrow-aisle maneuvering and directional changes.
• Ergonomic operator platform — spacious standing area with an intelligent control handle for long-hour operation.
• Enhanced safety protection — safety guardrails, overhead protection, and emergency braking for high-level work.
• Steel construction with robotic welding — durable load-bearing structure built for heavy usage, impacts, and directional changes.
• Polyurethane tires — suited to smooth, high-density warehouse floors.

How high does the GDF22-196Li lift?

It raises the operator and forks to 196 inches (16.33 ft) on a triple mast.

What is the rated load capacity?

The GDF22-196Li is rated for 2,200 lb.

What battery and charger does it use?

It runs on a maintenance-free 24V / 350Ah lithium battery and is specified with a matched 24V / 50A lithium charger.

What tires and steering does it have?

Polyurethane tires and Electronic Power Steering (EPS), suited to smooth-floor, narrow-aisle warehouse work.

How does it protect the operator at height?

It combines safety guardrails, overhead protection, and emergency braking to keep the operator secured during high-level picking.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
