GNT G40BC-118Li Full Powered Lithium Straddle Stacker

Name: GNT G40BC-118Li Full Powered Lithium Straddle Stacker
Brand: GNT Lifts
SKU: G40BC-118Li
Price: 13198.0 USD
Availability: InStock

SKU G40BC-118Li

In Stock

$13,198.00 - $13,198.00

$13,198.00

$13,198.00 - $13,198.00

$13,198.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

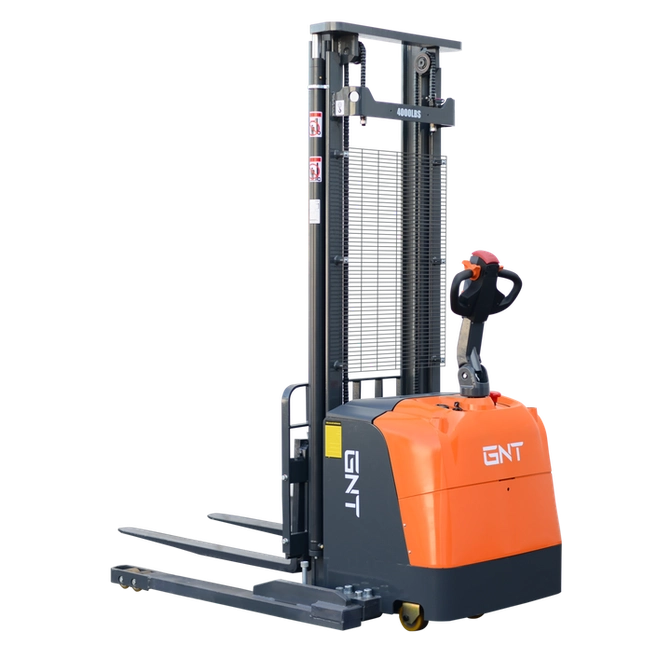

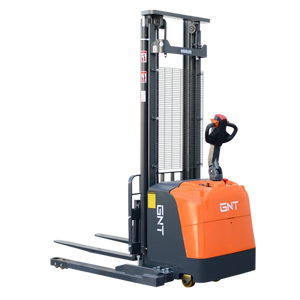

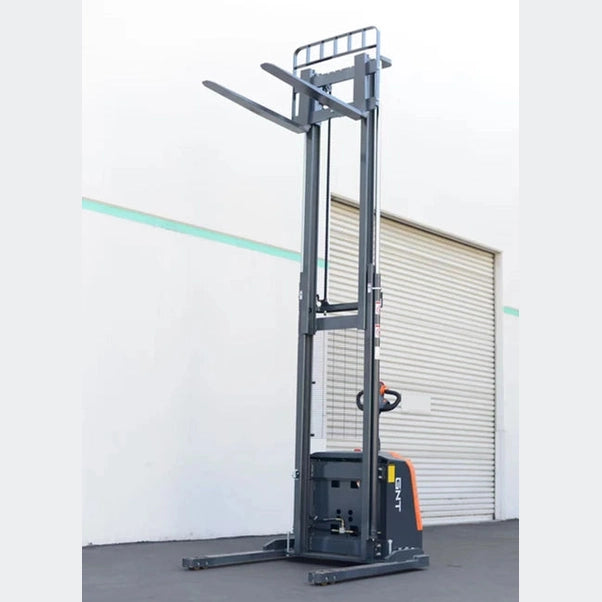

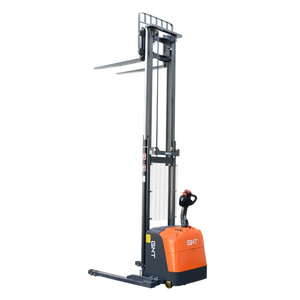

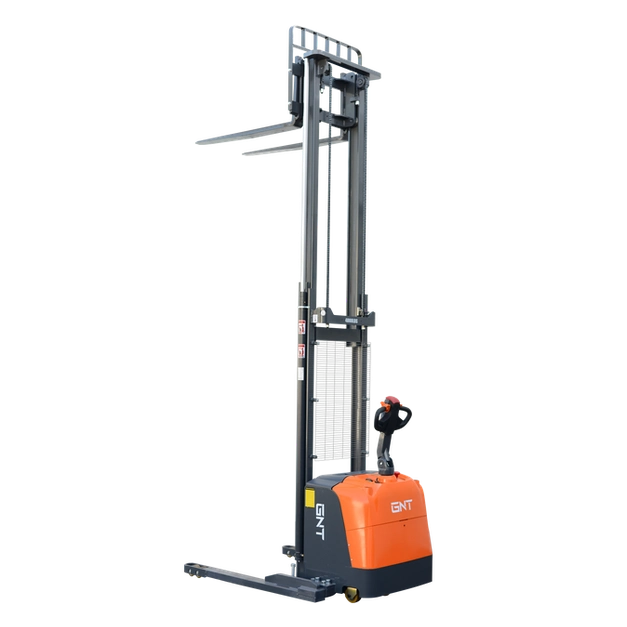

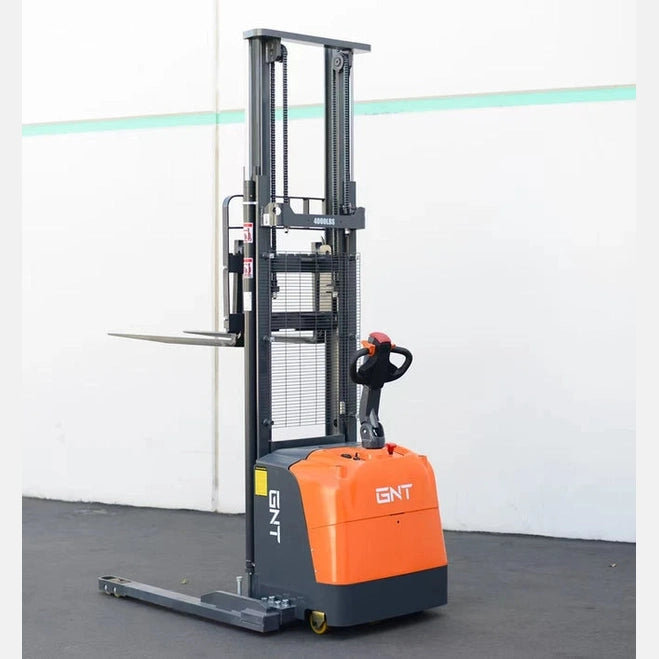

The GNT G40BC-118Li is a full-powered lithium straddle stacker that lifts 4,000 lb to a raised height of 118 inches. The straddle legs run beneath the load on either side, giving the stacker the stability to handle palletized loads through stock rooms, loading docks, manufacturing floors, and general warehousing without the footprint of a sit-down forklift.

Both lifting and driving run off a 24V lithium battery, so there is no hand-pumping and no manual towing — the operator walks the load in on powered drive and raises it on powered lift. The battery and a matching 24V/30A charger are included, and a Curtis controller meters power to the 24V DC drive motor and the 24V lift motor.

Features

4,000 lb capacity — rated to move and stack demanding warehouse loads.
Lithium battery power — long runtime, fast charging, and no watering or equalizing maintenance.
Ergonomic control handle — twin grips, a butterfly throttle, and thumb controls keep travel, lift, and horn within reach for precise low-speed maneuvering.
Steel straddle structure — robotically welded steel construction with adjustable straddle legs for stability under load.

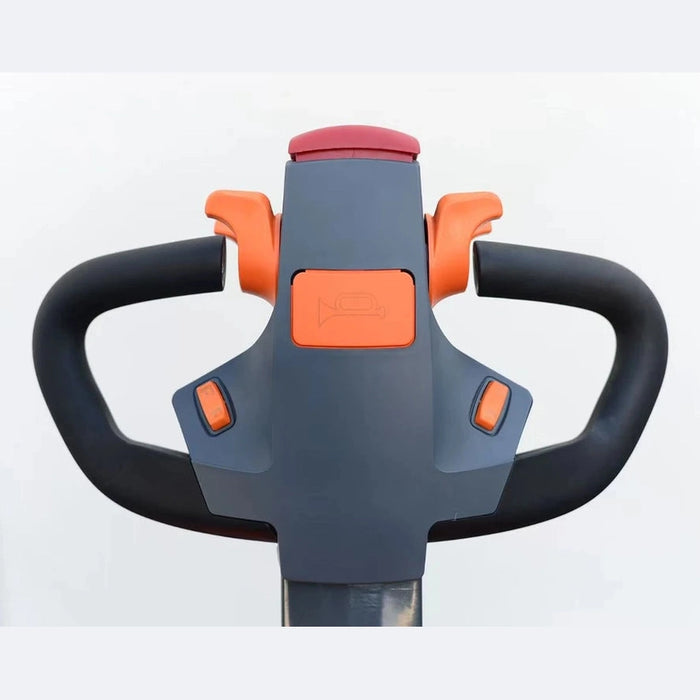

GNT straddle stacker tiller head with twin grips, butterfly throttle, and horn button — Ergonomic tiller head with twin grips and butterfly throttle.

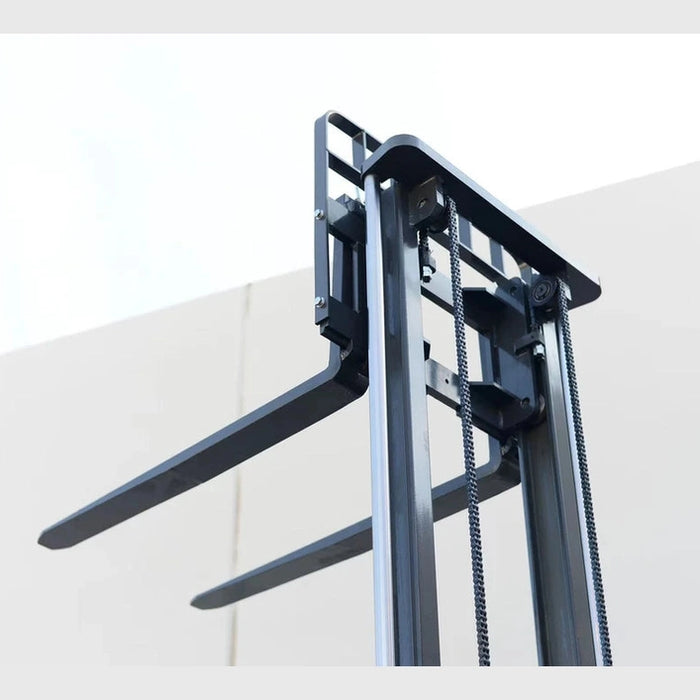

Raised fork carriage and mast of the GNT G40BC straddle stacker with lift chains — Fork carriage and mast with lift chains, raised.

What's Included

GNT G40BC-118Li straddle stacker
24V / 90Ah lithium battery
24V / 30A charger

Specifications

GNT G40BC-118Li Specifications
Load Capacity	4,000 lb
Raised Height	118"
Fork Length	45.3"
Adjustable Forks	8.66"–32"
Adjustable Legs	39.76"–55.55"
Controller	Curtis
Drive Motor	24V DC
Lift Motor	24V
Battery	24V / 90Ah Lithium (included)
Charger	24V / 30A (included)
Wheels	Polyurethane
Construction	Steel, robotic welding

FAQ

How much does the G40BC-118Li lift, and how high?

It is rated for 4,000 lb and raises the forks to 118 inches.

Does it come with a battery and charger?

Yes. A 24V/90Ah lithium battery and a 24V/30A charger are both included.

How far do the forks and straddle legs adjust?

The forks adjust from 8.66" to 32", and the straddle legs adjust from 39.76" to 55.55" to straddle a range of pallet and load widths.

What powers the drive and lift?

A Curtis controller meters a 24V DC drive motor and a separate 24V lift motor, both fed by the onboard 24V lithium battery.

What wheels does it run on?

It rides on polyurethane wheels, suited to smooth, finished indoor floors.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
