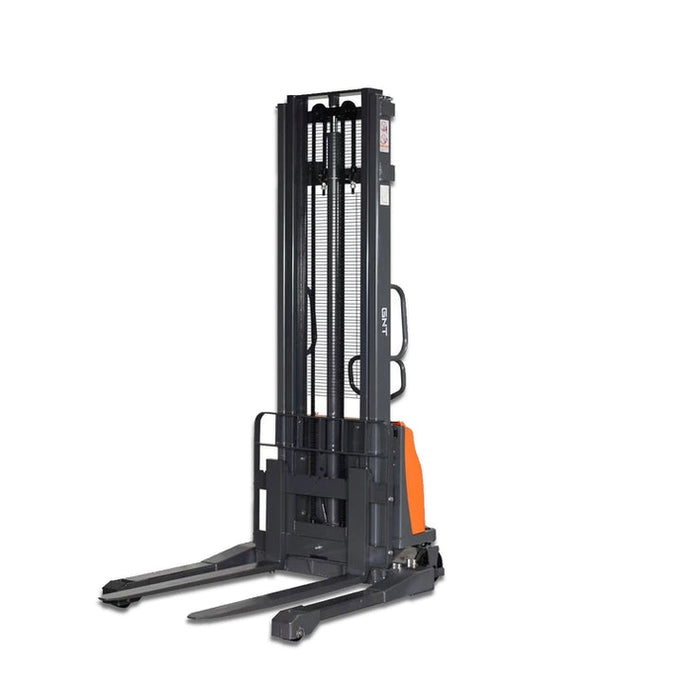

GNT G33EA-138 Semi-Electric Straddle Stacker

Name: GNT G33EA-138 Semi-Electric Straddle Stacker
Brand: GNT Lifts
SKU: G33EA-138
Price: 4999.0 USD
Availability: InStock

SKU G33EA-138

In Stock

$4,999.00 - $4,999.00

$4,999.00

$4,999.00 - $4,999.00

$4,999.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

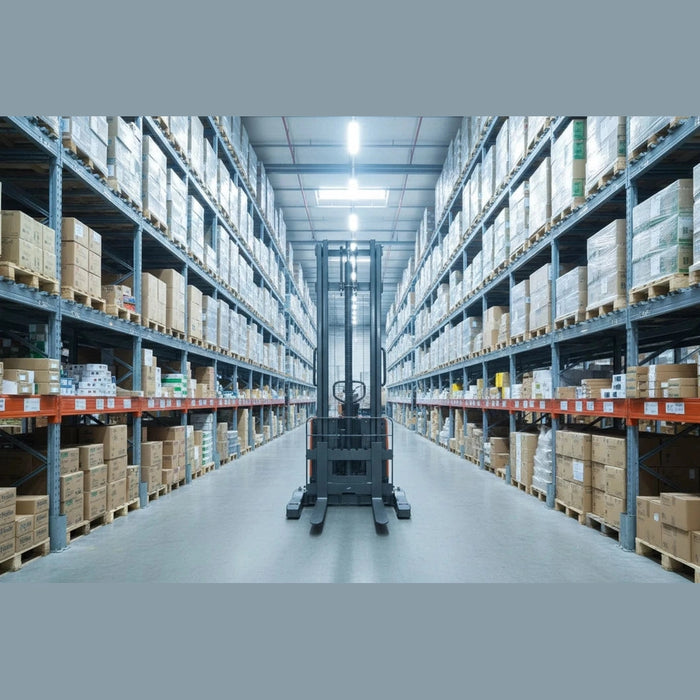

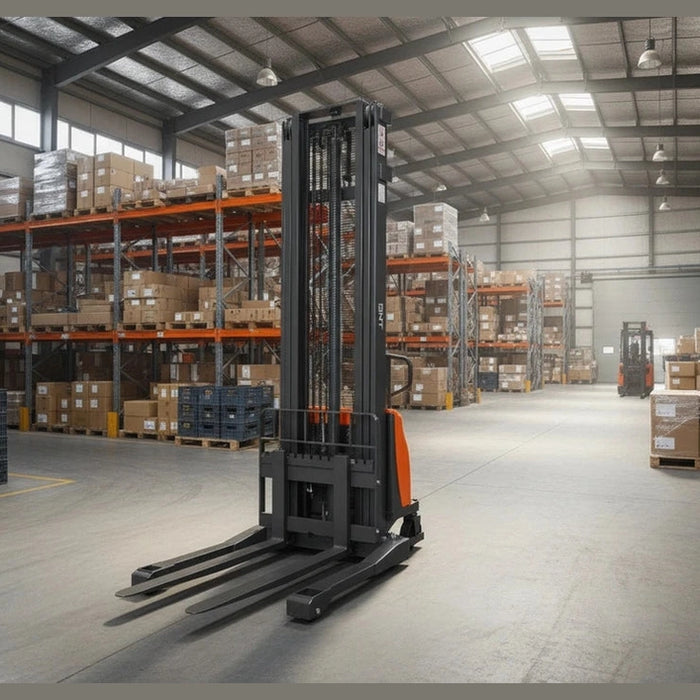

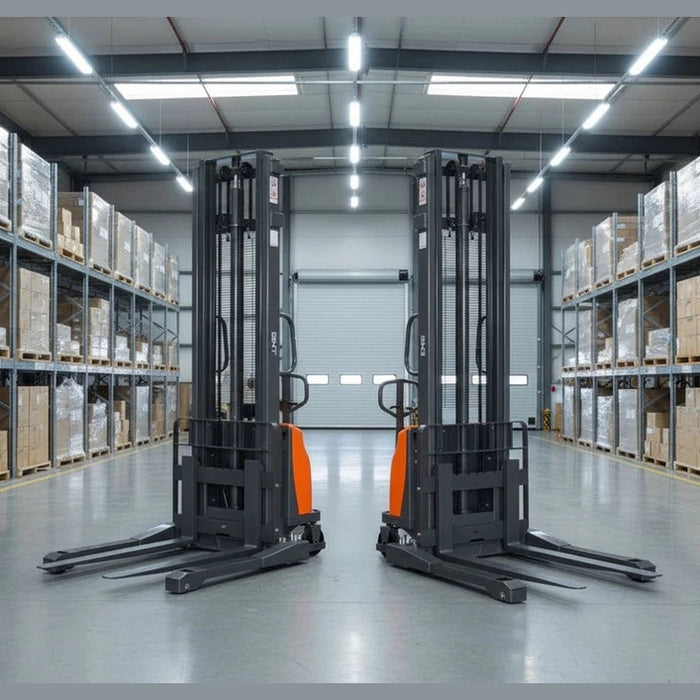

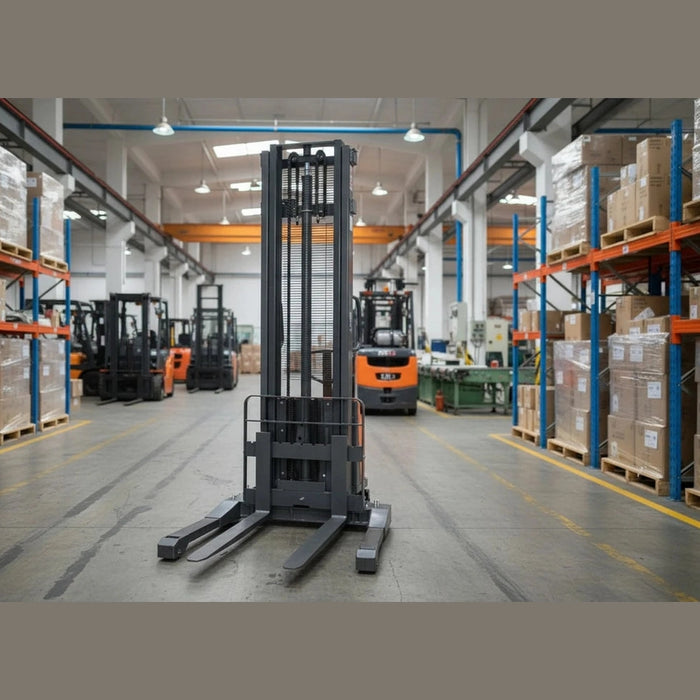

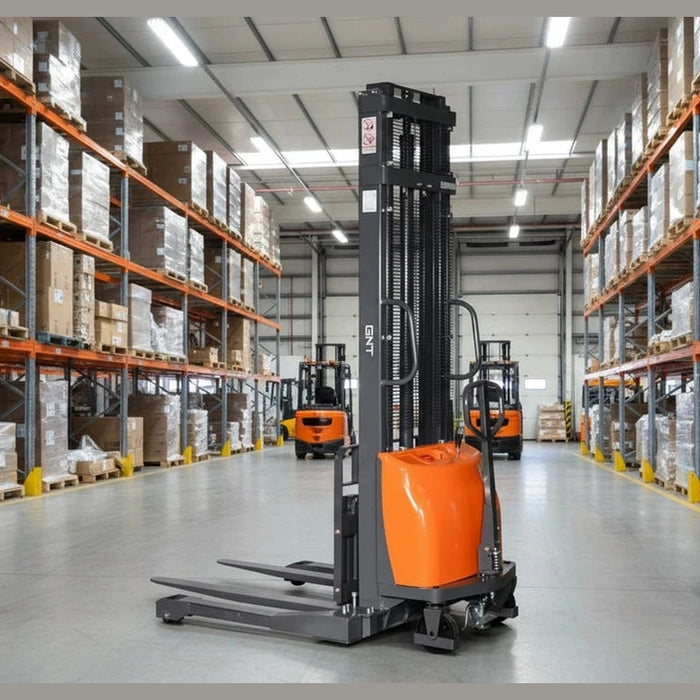

The GNT G33EA-138 is a semi-electric straddle stacker that combines the reach of a forklift with the compact footprint of a pallet stacker. It lifts 3,300 lb to a raised fork height of 138 inches (11.5 feet), reaching high rack levels, truck beds, and loading docks without the floor space or expense of a sit-down forklift.

Lifting is electric and travel is manual: the operator pushes the stacker into position by hand, then raises the load under power. That split keeps the purchase price and upkeep low while still covering daily stacking, truck loading and unloading, stock rooms, manufacturing floors, and general warehousing.

Adjustable forks and straddle legs let it work with a range of pallet and load sizes, and a small turning radius suits narrow aisles and medium-sized warehouses. The frame is built from steel with robotic welding for consistent weld quality across the structure.

Features

Electric lift, manual travel — raise loads under power, position by hand for low-cost, low-maintenance operation.
3,300 lb capacity to 138 in (11.5 ft) — stacks full pallets onto high rack levels and into trucks.
Adjustable forks, 8.66–32 in — fork width adjusts to match different pallet and load widths.
Adjustable straddle legs, 35–51 in — straddle width opens to clear a range of pallet and load footprints.
45 in fork length — standard fork length for full-depth pallet support.
Battery and charger included — ships with a 12V/120Ah lead-acid battery and a 12V/15A internal charger.

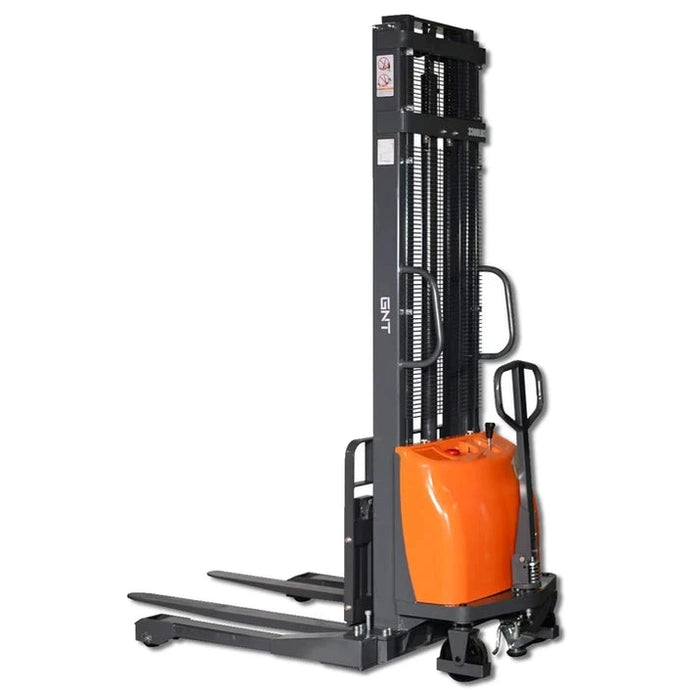

Ergonomic comfort handle — shaped control handle for easier maneuvering during manual travel.
Steel construction with robotic welding — steel frame and components built for durable, repeated use.

What's Included

GNT G33EA-138 semi-electric straddle stacker
12V/120Ah lead-acid battery
12V/15A internal charger

Specifications

GNT G33EA-138 Semi-Electric Straddle Stacker Specifications
Load Capacity	3,300 lb
Maximum Lift Height	138 in (11.5 ft)
Fork Length	45 in
Adjustable Fork Width	8.66–32 in
Adjustable Straddle Legs	35–51 in
Lift	Electric (powered)
Travel	Manual
Battery	12V / 120Ah lead-acid (included)
Charger	12V / 15A internal (included)
Construction	Steel, robotic welding

FAQ

Is the G33EA-138 fully electric?

No — it is semi-electric. Lifting is powered and travel is manual, so the operator pushes the stacker into position by hand and raises the load under electric power.

Does it come with a battery and charger?

Yes. A 12V/120Ah lead-acid battery and a 12V/15A internal charger are included.

How high does it lift, and how much can it carry?

It lifts up to 3,300 lb to a maximum fork height of 138 inches (11.5 feet).

Can it handle different pallet sizes?

The forks adjust from 8.66 to 32 inches and the straddle legs adjust from 35 to 51 inches, so it accommodates a range of pallet and load footprints. Fork length is 45 inches.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
