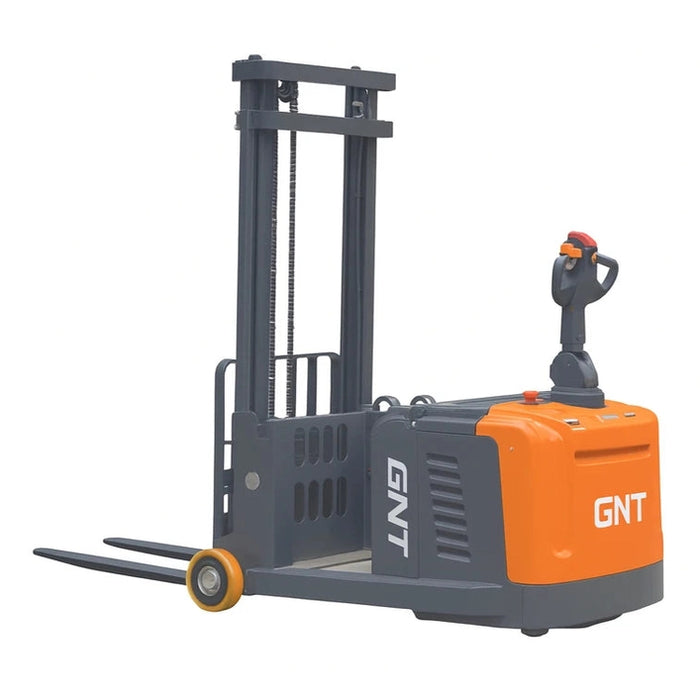

GNT G33CBS-189LI Lithium Counterbalanced Walkie Stacker

The GNT G33CBS-189LI is a fully powered counterbalanced walkie stacker that lifts 3,300 lb to a raised height of 189 inches (15.75 ft), pairing the load handling of a counterbalanced forklift with the compact, walk-behind footprint of a stacker. It is built for loading and unloading trucks, working loading docks, and moving palletized loads through stock rooms, manufacturing floors, and warehouse aisles.

Because the design is counterbalanced rather than straddle, there are no outrigger legs around the load. The truck approaches a pallet head-on, which lets it handle closed-bottom pallets, stillages, and non-standard loads that a straddle stacker cannot get under, while keeping a turning footprint far smaller than a sit-down forklift.

Integrated side-shift moves the forks laterally so the operator can line up with a pallet without repositioning the whole truck — faster placement into racking and tighter spotting on a trailer. Power comes from an AC Vertical Drive System with a 24V AC drive motor, managed by a Curtis controller, with EPS electronic power steering for low-effort maneuvering in tight aisles. The lithium battery and matching charger are included, so the unit arrives ready to put to work.

• Counterbalanced design — no straddle legs, so it handles closed-bottom pallets and oversized loads while keeping a compact walk-behind footprint
• Integrated side-shift — forks shift laterally to align with the load without moving the whole truck
• AC Vertical Drive System with a 24V AC drive motor for strong torque, smooth acceleration, and reduced maintenance
• Curtis controller managing drive and lift
• EPS electronic power steering for low-effort steering in confined spaces
• Adjustable forks from 8.6 in to 28.3 in spread, 45.3 in long, to fit a range of pallet sizes
• Mast tilt of 2° / 5° for load stability and pickup
• Polyurethane load wheels and an ergonomic tiller handle with integrated controls
• Steel construction with robotic welding

• Lithium battery
• Matching charger

Every G33CBS-189LI is backed by a 3-year limited warranty from GNT.

How much can the G33CBS-189LI lift, and how high?

It is rated for 3,300 lb and raises the load to 189 inches — 15.75 feet.

How is a counterbalanced stacker different from a straddle stacker?

A counterbalanced stacker has no straddle legs around the load, so it can approach closed-bottom pallets, stillages, and oversized loads head-on. A straddle stacker has to fit its legs under or around the pallet, which limits what it can pick up.

Does it have side-shift?

Yes. Side-shift is standard, letting the operator move the forks laterally to line up with a pallet without repositioning the truck.

Are the battery and charger included?

Yes. The unit ships with its lithium battery and a matching charger.

What voltage is the drive system?

The drive motor and lift motor both run on 24V, driven by an AC Vertical Drive System and a Curtis controller.

Can the forks be adjusted to different pallet sizes?

Yes. The forks adjust from 8.6 in to 28.3 in in spread and are 45.3 in long.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
