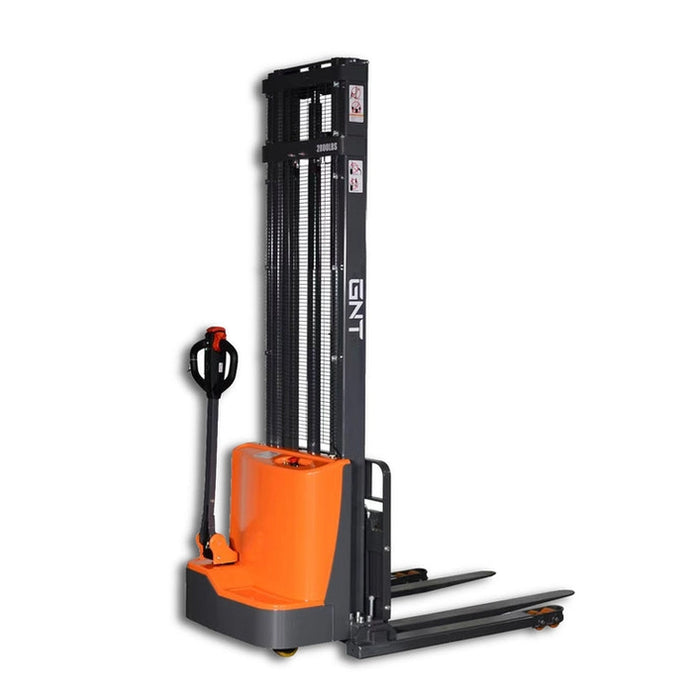

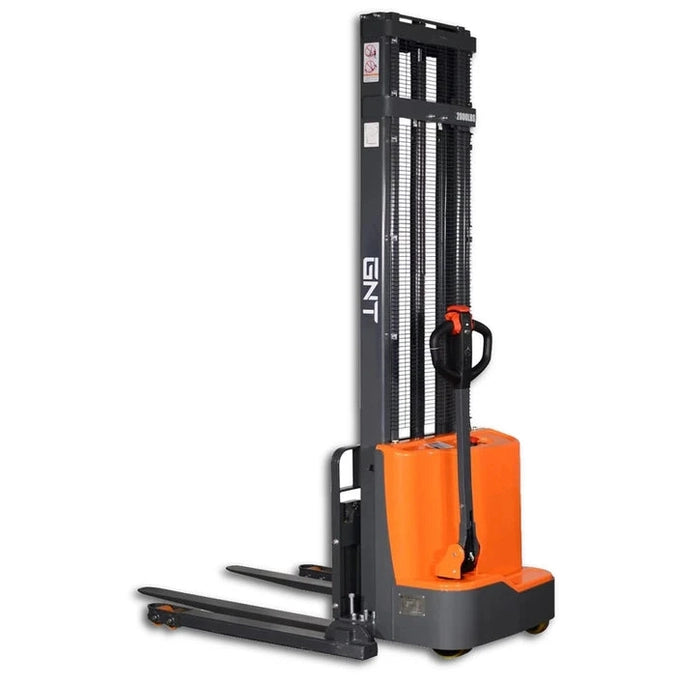

GNT G28BC-145Li Lithium Straddle Stacker

The GNT G28BC-145Li is a lithium-powered electric straddle stacker that lifts 2,800 lb to a raised height of 145 inches — just over 12 feet. Its straddle legs pass on either side of the load, so the stacker handles pallets, skids, and stillages without a counterweight extending its footprint. That keeps the truck compact enough to work the tight aisles of stockrooms, manufacturing floors, and warehousing while still reaching the upper beam levels of standard pallet racking.

GNT builds the G28BC-145Li to do the work of three machines in one walk-behind unit. It loads and unloads trucks and docks like a forklift, reaches into racking like a reach truck, and moves palletized loads down an aisle like a walkie stacker. A DC drive motor and an ultra-small turning radius let the operator change direction in confined space, and the steel mast and chassis are built to take the impacts and directional changes of daily handling.

Power comes from an onboard 24V/50Ah lithium battery. Lithium holds voltage through the discharge curve, charges in shorter windows than lead-acid, and needs no watering or equalizing — so the truck opportunity-charges between tasks and stays in service without a battery-maintenance routine. Polyurethane wheels run quiet on smooth concrete and resist marking, and the ergonomic handle places lift, lower, and travel controls under the operator's thumb for smooth, precise moves.

• 2,800 lb capacity to 145 inches — lifts just over 12 feet to reach upper-beam pallet racking.
• Three trucks in one — forklift loading, reach-truck height, and walkie-stacker maneuverability in a single walk-behind unit.
• 24V/50Ah lithium battery — fast charging and long runtime with no watering or equalizing.
• Adjustable forks and straddle legs — forks span 8.6–32.1 inches and the legs adjust 35.4–51.2 inches to fit varied pallet and skid widths.
• Ultra-small turning radius — changes direction in narrow aisles and tight staging areas.
• DC drive motor, polyurethane wheels, steel construction — built for repeated impacts, directional changes, and daily warehouse duty.

How much can the G28BC-145Li lift, and how high?

It carries up to 2,800 lb and raises the forks to 145 inches — just over 12 feet, enough to reach the upper beam levels of standard pallet racking.

What kind of battery does it use, and does it need maintenance?

It runs on a 24V/50Ah lithium battery. Lithium charges in shorter windows than lead-acid and needs no watering or equalizing, so the truck can opportunity-charge between tasks instead of swapping or servicing a battery.

Will it fit narrow aisles?

The walk-behind footprint, straddle-leg design, and ultra-small turning radius let it change direction in narrow aisles and tight staging areas without the swing room a counterbalanced truck needs.

Can it handle different pallet and skid sizes?

Yes. The forks adjust from 8.6 to 32.1 inches and the straddle legs adjust from 35.4 to 51.2 inches, so the stacker fits a range of pallet and skid widths.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
