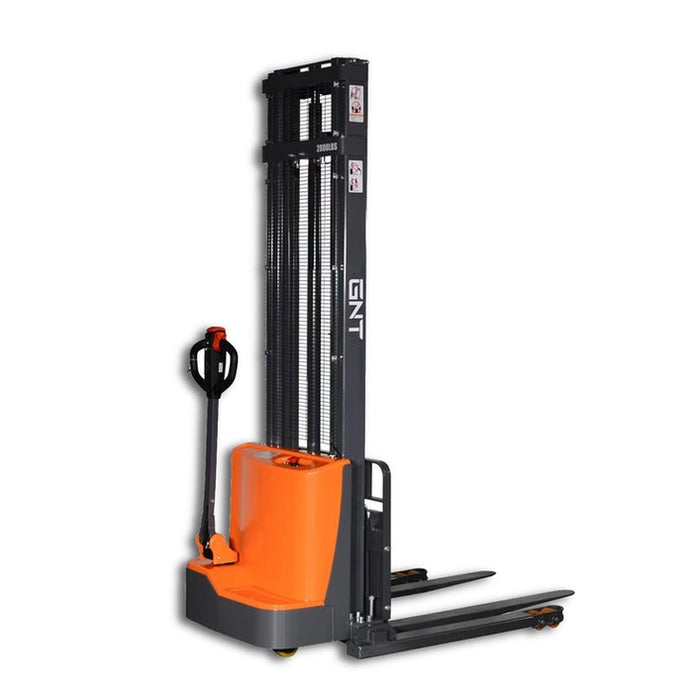

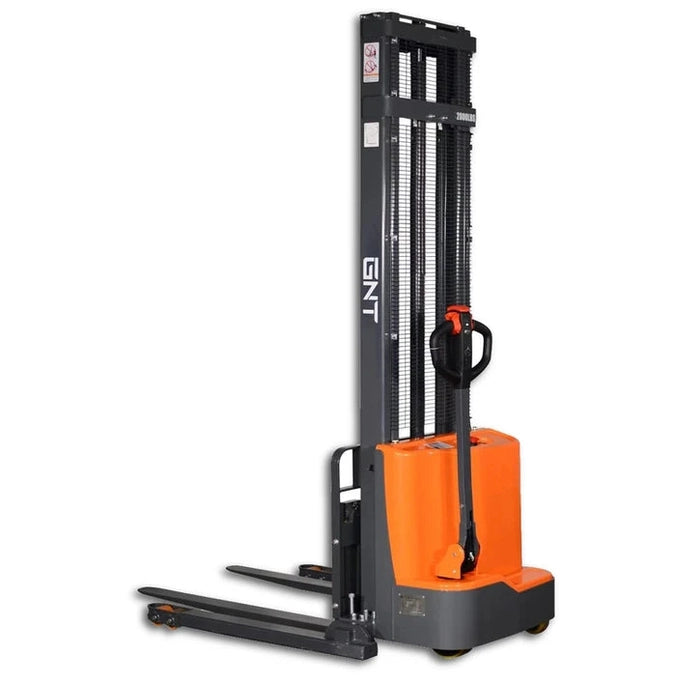

GNT G28BC-118Li Lithium Straddle Stacker

Name: GNT G28BC-118Li Lithium Straddle Stacker
Brand: GNT Lifts
SKU: G28BC-118Li
Price: 6398.0 USD
Availability: InStock

SKU G28BC-118Li

In Stock

$6,398.00 - $6,398.00

$6,398.00

$6,398.00 - $6,398.00

$6,398.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

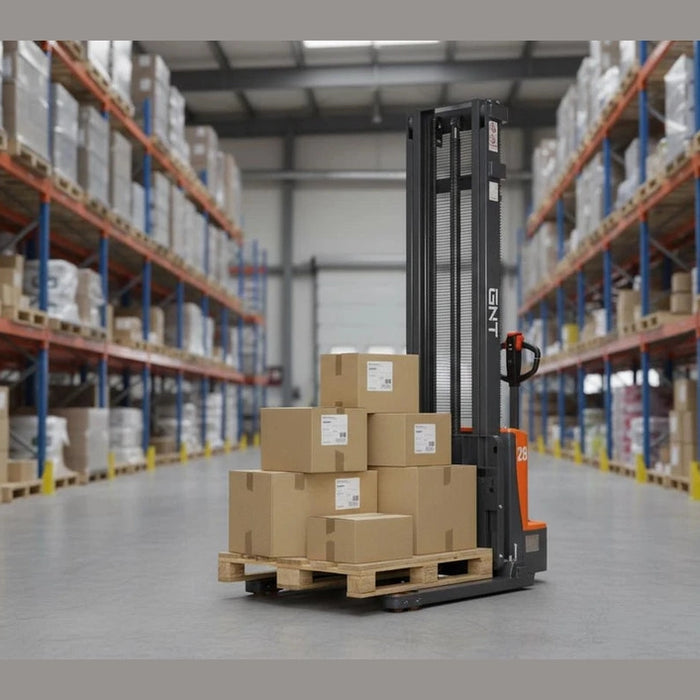

The GNT G28BC-118Li is a lithium-powered electric straddle stacker built to move and stack palletized loads in warehouses, stockrooms, on manufacturing floors, and at loading docks. It carries a rated capacity of 2,800 lb and raises loads to a 118-inch maximum lift height, pairing the reach of a stacker with powered drive so operators are not pushing loaded weight by hand.

A 24V/50Ah lithium-ion battery powers the DC drive motor and the lift, delivering long runtime between charges, fast recharging, and maintenance-free operation. The straddle legs adjust from 35.4 to 51.2 inches and the forks adjust from 8.6 to 32.1 inches, so the truck can be set to a range of pallet and load footprints rather than one fixed size.

An ultra-small turning radius lets the G28BC-118Li work in narrow aisles and tight staging areas, and the ergonomic tiller handle keeps the drive, lift, and lowering controls under one hand for precise, repeatable handling through a shift. The chassis and mast are steel, and the truck rolls on polyurethane wheels suited to smooth indoor floors.

Features

2,800 lb rated capacity for warehouse and stockroom lifting.
24V/50Ah lithium-ion battery — long runtime, fast charging, and maintenance-free operation.
Ultra-small turning radius for maneuvering in narrow aisles and tight spaces.
Adjustable forks (8.6"–32.1") and straddle legs (35.4"–51.2") to match varied load footprints.
DC drive motor with powered travel and ergonomic single-hand controls.
Steel construction with polyurethane wheels for smooth indoor floors.

Specifications

GNT G28BC-118Li Lithium Straddle Stacker Specifications
Load Capacity	2,800 lb
Maximum Lift Height	118"
Fork Length	45.3"
Adjustable Fork Spread	8.6"–32.1"
Adjustable Straddle Legs	35.4"–51.2"
Drive Motor	DC
Battery	24V / 50Ah lithium-ion
Wheels	Polyurethane
Construction	Steel

FAQ

How much can the G28BC-118Li lift, and how high?

It is rated to lift 2,800 lb to a maximum height of 118 inches.

What battery does it use?

A 24V/50Ah lithium-ion battery powers the DC drive motor and the lift, with long runtime, fast charging, and maintenance-free operation.

Can the forks and legs be adjusted to fit my loads?

Yes. The forks adjust from 8.6 to 32.1 inches and the straddle legs adjust from 35.4 to 51.2 inches.

Will it fit narrow aisles?

Its ultra-small turning radius is designed for narrow aisles and tight staging areas.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
