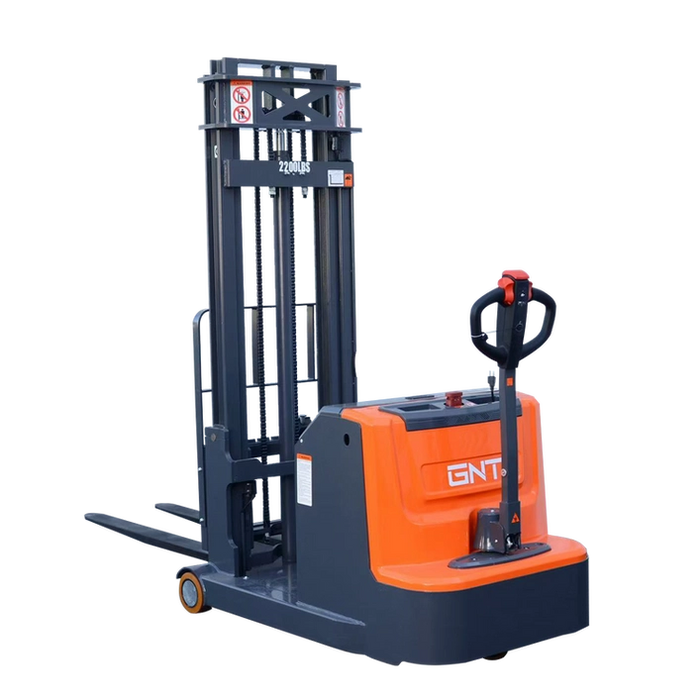

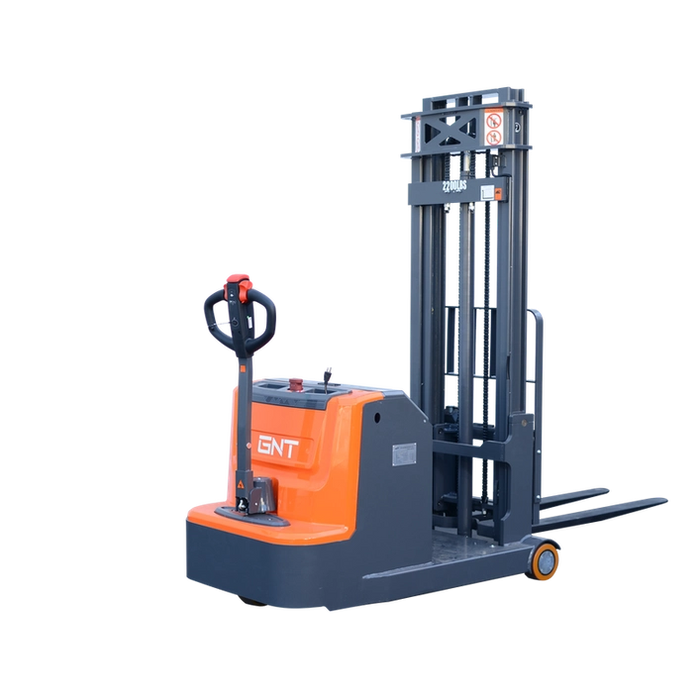

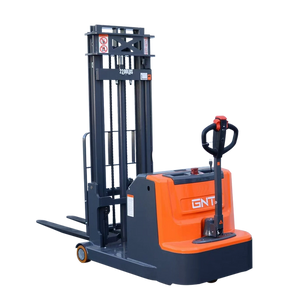

GNT G22CB-138LI Counterbalanced Walkie Stacker

The GNT G22CB-138LI is a counterbalanced electric walkie stacker rated to lift 2,200 lbs to a height of 138 inches at a 24-inch load center. Its counterbalanced chassis carries the load on a weighted base instead of outrigger legs, so the forks sit flush to the floor and reach closed-bottom pallets, skids, and stacked loads that a straddle stacker cannot get under.

Power comes from an onboard 24V/100Ah lithium-ion battery with a built-in 24V/30A charger. There is no external charger to wire in and no separate charging station to find floor space for — the charger lives on the truck. GNT rates the pack for fast charging and long-lasting performance across demanding warehouse shifts, and the electric drivetrain runs clean and quiet for indoor handling.

With a 53-inch turning radius and no straddle legs to swing, the G22CB-138LI works in tight aisles and congested staging areas where a wider truck would need multiple moves. Service weight is 3,597 lbs — the counterweight that lets this compact frame handle a 2,200 lb load without outriggers — so confirm your floor, dock, and any mezzanine structure are rated for it before siting the truck.

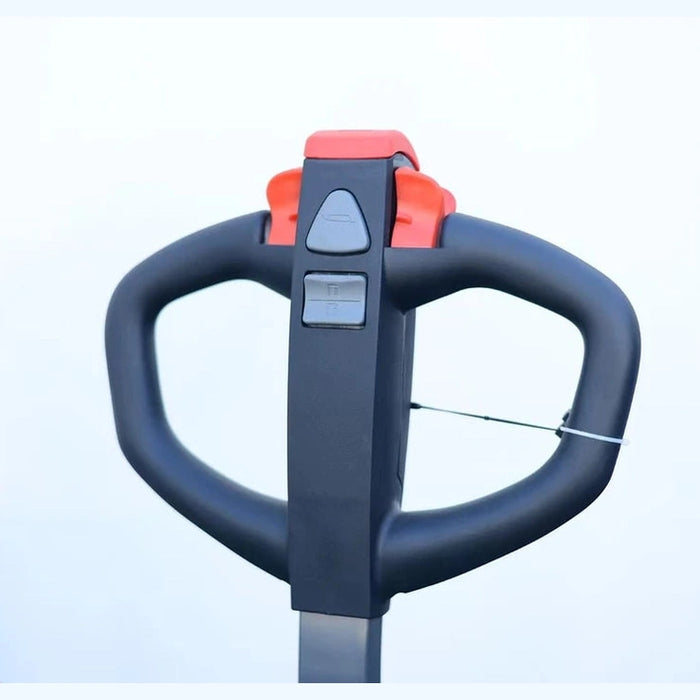

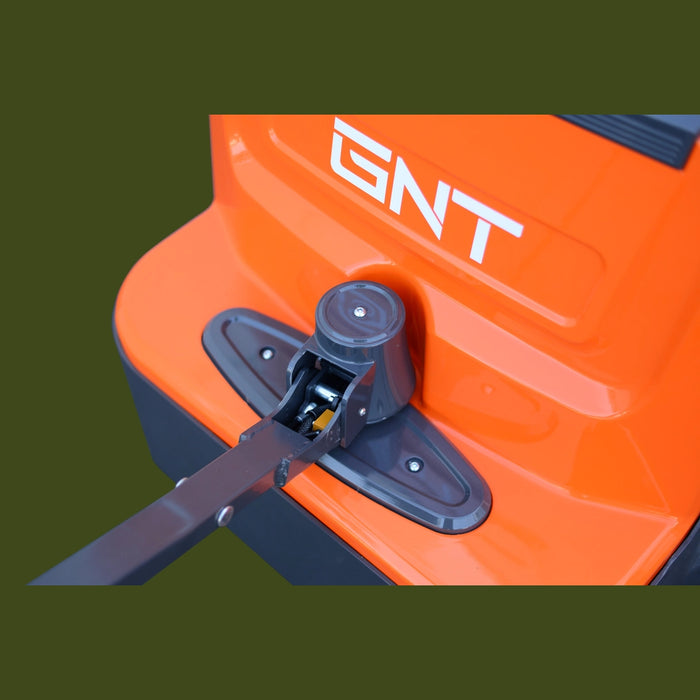

The stacker is steered by a walk-behind tiller. Its control head groups the thumb-operated buttons and wrap-around grip together so the operator manages travel and lift from the handle.

• Counterbalanced design — load rides on a weighted base, not straddle legs, so the forks sit flush to the floor and reach closed-bottom pallets and skids.
• Onboard lithium power — 24V/100Ah lithium-ion battery with a built-in 24V/30A charger; no external charger and no separate charging station required.
• 138-inch lift height — reaches high rack positions from a single walk-behind unit.
• 53-inch turning radius — compact footprint for tight aisles and congested staging areas.
• Clean, quiet electric drive — no exhaust or engine noise for indoor handling.

• 24V/100Ah lithium-ion battery
• Built-in 24V/30A charger

The G22CB-138LI is covered by a 3-year limited warranty.

Does this stacker have straddle legs?

No. It is a counterbalanced design — the load is carried on a weighted base instead of outrigger straddle legs, so the forks reach closed-bottom pallets and skids that straddle legs would block.

Are the battery and charger included?

Yes. The 24V/100Ah lithium-ion battery and a built-in 24V/30A charger both ship with the truck.

Do I need an external charger or a separate charging station?

No. The charger is built into the unit, so there is no external charger to wire in and no separate charging station to allocate floor space for.

What load center is the 2,200 lb capacity rated at?

The 2,200 lb capacity is rated at a 24-inch load center.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
