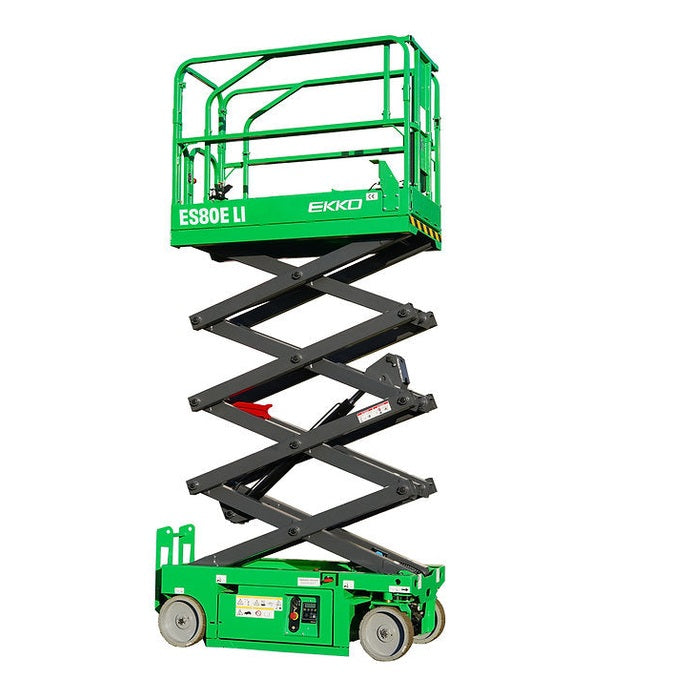

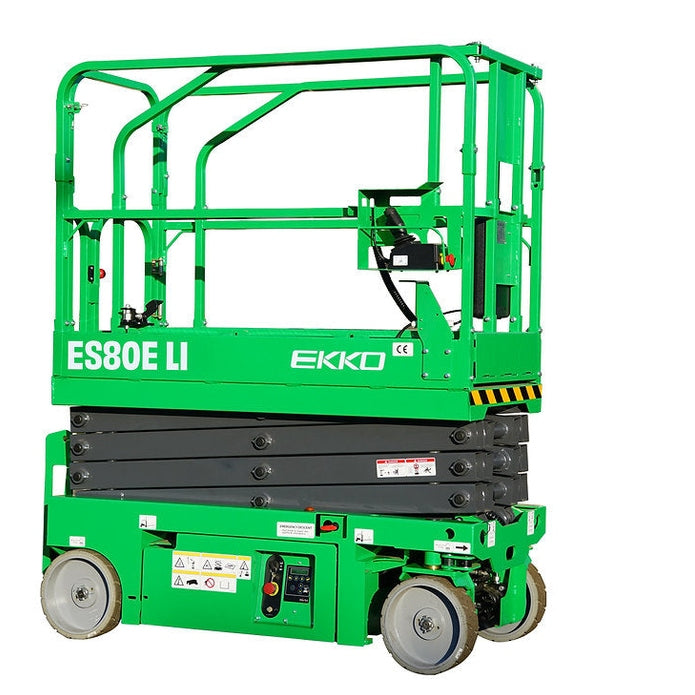

EKKO ES80E-Li Scissor Lift Height 26.2' (315'')

The EKKO ES80E-Li is a self-propelled electric scissor lift that raises a 990 lb work platform to a 26.2 ft (315 in) platform height, putting an operator at roughly a 32.8 ft (394 in) working height once they reach overhead. It runs on a 25.6-volt lithium-ion battery, steers on four wheels, and is managed by a Curtis controller with proportional control, so raising, lowering, and travel stay smooth and predictable rather than abrupt. The chassis is steel, and the machine is built to the GB25849 and EN280 work-platform standards.

A roll-out deck extension adds 39.37 in of forward reach over the work area, and the guardrails fold down to bring the stowed machine low enough to clear standard doorways and trailer openings. At 45.27 in wide with a zero-degree inside turning radius, it works in tight aisles and around fixed obstructions where a larger platform would not fit.

• Lithium-ion power. A 25.6 V / 230 Ah lithium-ion battery drives the 3.3 kW lift motor and dual 0.7 kW travel motors, with onboard charging at 36 A output.
• Curtis controller with proportional control. Lift, lower, and travel respond proportionally to operator input for fine load positioning.
• Roll-out platform extension. The deck extends 39.37 in to reach over fixed obstacles, rated for 265 lb on the extended section.
• Folding guardrails. Rails fold to drop the stowed height to 67 in so the machine clears standard doorways and fits through trailer openings for transport.
• Four-wheel drive base. Double front-wheel drive and double rear-wheel braking on 15 x 5 in solid tires, with 30% gradeability for ramps and inclines.
• Compact, maneuverable footprint. 45.27 in overall width and a zero-inch inside turning radius for work in narrow aisles.

The ES80E-Li is rated for both indoor and outdoor work, with different limits for each. Indoors it carries up to 2 workers in still air (0 m/s wind rating); outdoors it is rated for 1 worker in wind up to 12.5 m/s (about 28 mph). Maximum allowable lateral force is 400 N indoors and 200 N outdoors. The machine is built to the GB25849 and EN280 mobile elevating work platform standards.

The ES80E-Li is covered by a 3-year limited warranty.

How high does this scissor lift reach?

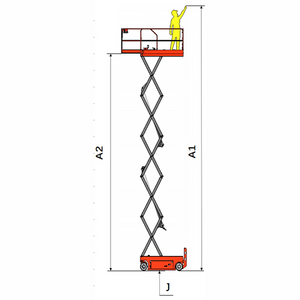

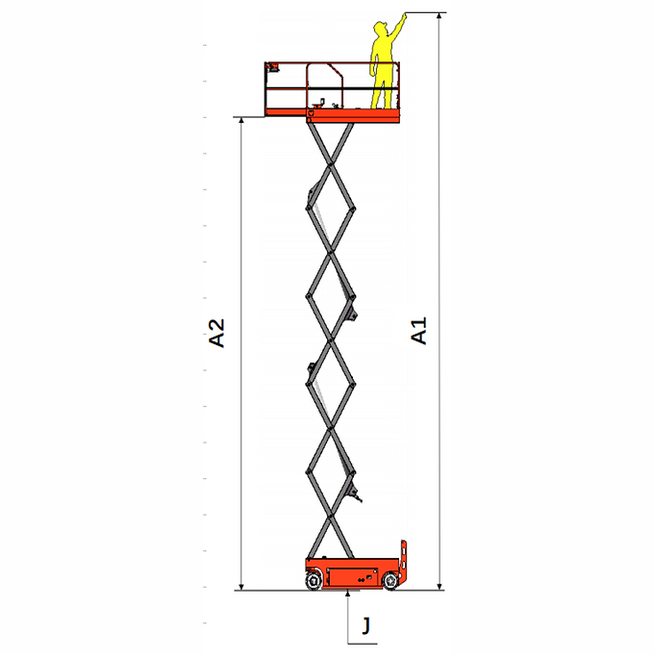

The platform raises to 26.2 ft (315 in). With an operator standing and reaching overhead, the usable working height is about 32.8 ft (394 in).

How much can the platform hold?

The platform is rated for 990 lb total. The roll-out deck extension is separately rated for 265 lb.

Can it be used outdoors?

Yes, with limits. Outdoors it is rated for 1 worker in wind up to 12.5 m/s (about 28 mph). Indoors, in still air, it is rated for 2 workers.

How is it powered?

It runs on a 25.6 V / 230 Ah lithium-ion battery with onboard charging at 36 A output. No fuel, no emissions.

Will it fit through a standard doorway?

The machine is 45.27 in wide, and folding the guardrails brings the stowed height down to 67 in, which clears most standard doorways and trailer openings.

Can it handle ramps?

It is rated for 30% gradeability when stowed for travel.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
