EKKO ES80E Aerial Work Platform Lift Height 26.2' (315'')

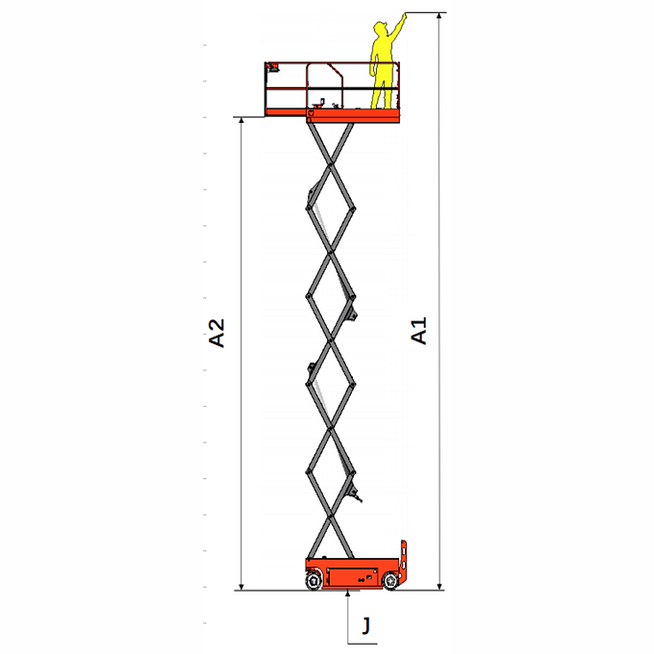

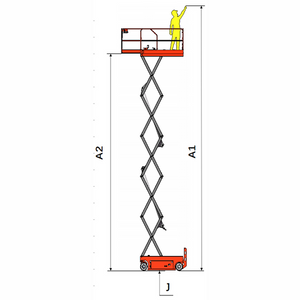

The EKKO ES80E is a self-propelled electric scissor lift that raises a 990 lb platform to a height of 26.2 ft (315 in), with a maximum working height of about 32.8 ft (394 in) once an operator is standing on the deck. It runs on a 24-volt battery system, drives itself at up to 3.2 km/h (roughly 2 mph) when lowered, and rolls on a chassis 94.5 in long and 45.27 in wide with solid 15 × 5 in tires.

This aerial work platform is sized for taller reaching work — warehouse high-bay maintenance, ceiling and structural work, lighting and signage, and similar two-story tasks that a smaller lift or a ladder cannot reach safely. Unlike compact indoor-only platforms, the ES80E is rated for limited outdoor use: up to two occupants indoors and one outdoors, with an outdoor wind rating of 12.5 m/s (about 28 mph). It should still be operated on firm, level ground, but it is not confined to interior floors.

Its inside turning radius is zero, so the lift pivots within its own footprint to reposition between bays. Drive and lift run through proportional control with a Curtis controller, which meters speed smoothly rather than switching on and off, paired with double front-wheel drive and rear-wheel braking. A roll-out platform extension adds 39.37 in of reach with its own 265 lb rating, and the steel-construction platform folds its guardrails down to a 67 in stowed height for moving through doorways and into freight elevators.

EKKO Lifts is a US-based material handling manufacturer with a Class I–V equipment range, and it backs the ES80E with a 3-year limited warranty. The lift ships via freight; contact Forklift King to arrange scheduling and delivery.

• 26.2 ft (315 in) platform height, reaching a working height of about 32.8 ft (394 in).
• Indoor and limited-outdoor rated — up to two occupants indoors, one outdoors, with a 12.5 m/s (≈28 mph) outdoor wind rating.
• Zero inside turning radius for repositioning within the machine's own footprint.
• Self-propelled 24V electric drive with double front-wheel drive and rear-wheel braking; up to 3.2 km/h (≈2 mph) lowered and 0.8 km/h (≈0.5 mph) raised.
• Proportional control via a Curtis controller for smooth, metered drive and lift.
• 39.37 in roll-out platform extension rated for an additional 265 lb.
• Folding guardrails bring the stowed height down to 67 in; steel platform and scissor structure, 5,412 lb total.

The EKKO ES80E carries a 3-year limited warranty from EKKO. Full warranty terms are available on request.

Can the EKKO ES80E be used outdoors?

Yes, within limits. It is rated for up to two occupants indoors and one outdoors, with an outdoor wind rating of 12.5 m/s (about 28 mph). Operate it on firm, level ground in either setting.

How high does it reach?

The platform raises to 26.2 ft (315 in), and the maximum working height — measured to where an operator can reach standing on the deck — is about 32.8 ft (394 in).

How much weight can the platform hold?

The main platform is rated for 990 lb. The 39.37 in roll-out extension is separately rated for 265 lb.

How is it powered and charged?

It runs on a 24-volt system built from four 6V, 225 Ah batteries. The charger accepts 100–240V AC at 36 A, so it tops up from a standard wall outlet.

Will it fit through doorways and freight elevators?

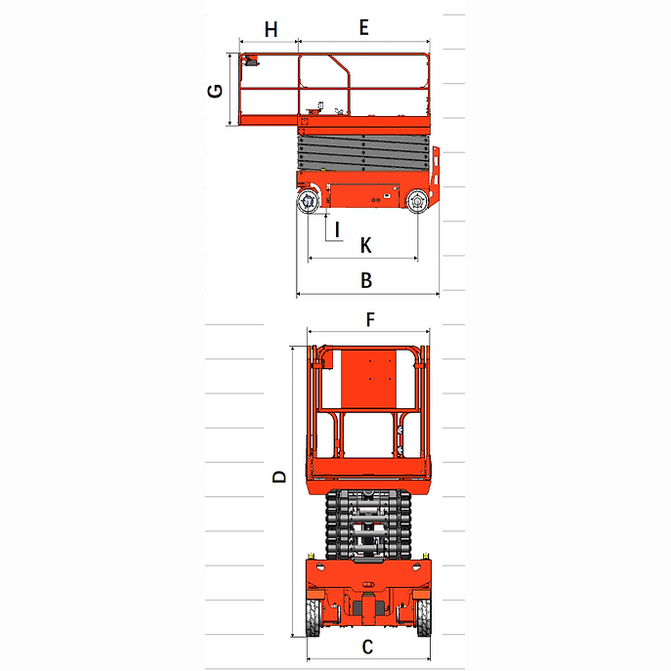

With the guardrails folded, the stowed height drops to 67 in. The chassis is 94.5 in long and 45.27 in wide with a zero inside turning radius.

How fast does it drive?

Up to 3.2 km/h (about 2 mph) when lowered, and up to 0.8 km/h (about 0.5 mph) when raised.

What safety standards does it meet?

EKKO states the ES80E complies with the EN280 and GB25849 aerial work platform standards. For US ANSI A92.20 or CSA compliance status, contact Forklift King — the documentation supplied lists EN280 and GB25849.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
