EKKO ES60E Aerial Work Platform Lift Height 19' (228'')

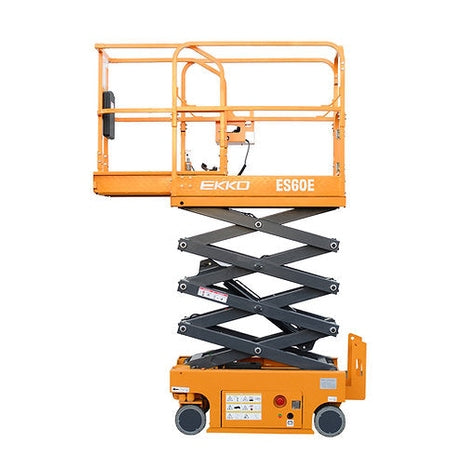

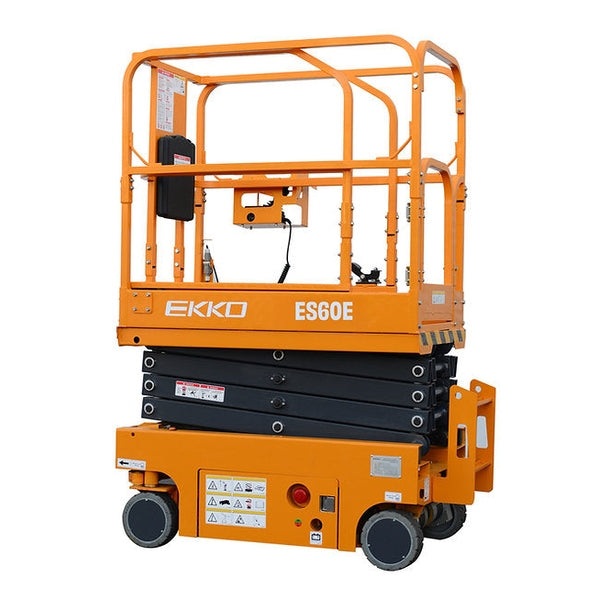

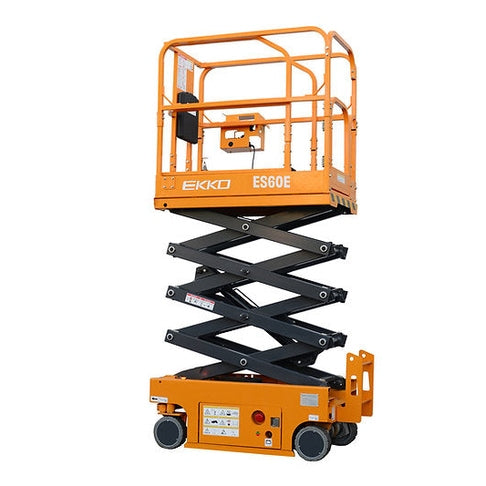

The EKKO ES60E is a self-propelled electric scissor lift that raises a work platform to 19 ft — a working height of roughly 25.5 ft once an operator's reach is added — and carries up to 506 lb on the platform. It runs on a 24-volt battery with proportional control through a Curtis controller, so a single operator drives it into position, raises the deck, and works overhead without a generator, cords, or engine exhaust.

EKKO Lifts builds the ES60E on a steel chassis with a folding scissor stack and a compact 72.44 in by 29.92 in footprint. Two front drive wheels and two rear braking wheels give it a zero-inch inside turning radius, so it pivots within its own length in tight aisles, and 30% gradeability lets it climb ramps to the work area. With the guardrails folded the machine stands 65 in tall and 29.92 in wide — low enough to pass through a standard doorway — and ground clearance drops from 2.36 in to 0.59 in once the platform is raised, settling the chassis for a stable elevated stance.

The ES60E is rated for indoor work with up to two occupants and meets EN280 and GB25849 standards. A roll-out deck extension adds 35.43 in of reach and carries up to 264 lb when extended. The platform raises in 18 seconds and lowers in 28, and the onboard charger accepts standard 100–240-volt power, so the battery recharges from an ordinary wall outlet.

• Raises to a 19 ft platform height — about 25.5 ft working height with operator reach
• 506 lb platform capacity; 264 lb on the 35.43 in roll-out deck extension
• Self-propelled 24-volt electric drive — 2.2 kW lift motor and two 0.7 kW drive motors
• Proportional control through a Curtis controller
• Zero-inch inside turning radius and 30% gradeability for tight, sloped work areas
• Compact 72.44 in x 29.92 in footprint; folds to 65 in tall for transport and doorways
• Onboard charger runs on standard 100–240-volt power
• Solid (cushion) tires, 12.71 in x 3.93 in
• Rated for indoor use, up to 2 occupants
• Meets EN280 and GB25849 standards
• Steel construction
• 3-year limited warranty

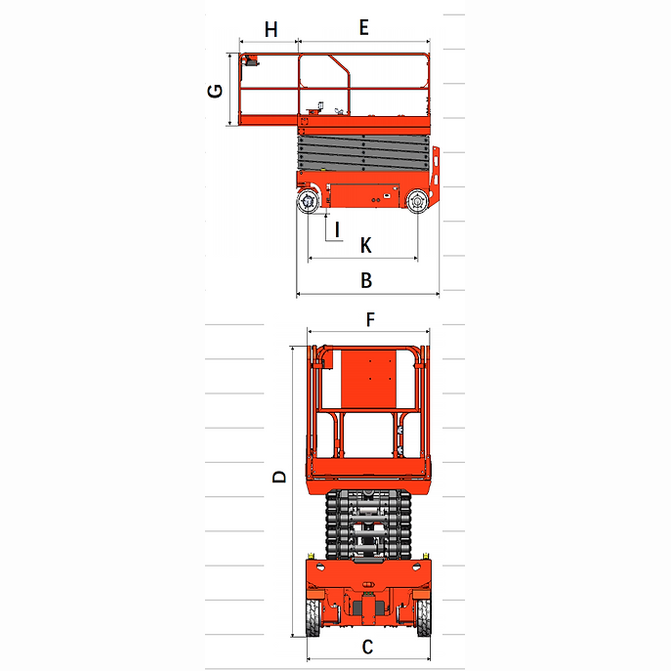

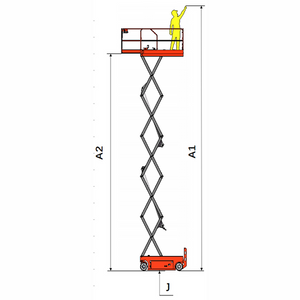

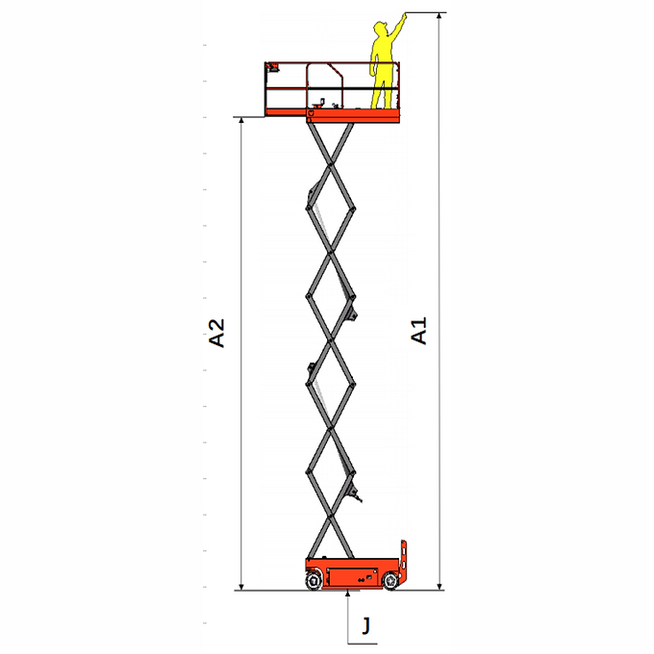

The diagrams below show where each lettered dimension is measured.

The ES60E is covered by a 3-year limited warranty.

How high does the ES60E reach?

The platform raises to 19 ft (228 in), for a working height of about 25.5 ft (307 in) once an operator's reach is included.

How much can the platform hold?

Up to 506 lb on the main platform and up to 264 lb on the 35.43 in roll-out deck extension. The platform is rated for a maximum of two occupants.

Is it for indoor or outdoor use?

The published ratings cover indoor use. The spec sheet lists no outdoor wind-speed or lateral-force rating, so treat the ES60E as an indoor machine and confirm any outdoor application with us before ordering.

How is it powered and charged?

A 24-volt battery drives the lift and both drive wheels. The onboard charger accepts standard 100–240-volt power, so it recharges from an ordinary wall outlet.

How compact is it for transport and storage?

With the guardrails folded the machine stands 65 in tall and 29.92 in wide, with a 72.44 in overall length and a zero-inch inside turning radius for tight aisles.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
