EKKO ES60E-Li Aerial Work Platform Lift Height 19' (228'')

Name: EKKO ES60E-Li Aerial Work Platform Lift Height 19' (228'')
Brand: EKKO Lifts
SKU: ES60E-Li
Price: 27198.0 USD
Availability: InStock

SKU ES60E-Li

In Stock

$27,198.00 - $27,198.00

$27,198.00

$27,198.00 - $27,198.00

$27,198.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO ES60E-Li is an electric scissor lift that raises a work platform to 19 ft (228 in), for a working height of about 25.5 ft (307 in) — enough to reach ceiling services, racking, signage, and overhead fixtures from a stable, guarded platform. It runs on a 25.6V lithium battery and is steered with proportional control through a Curtis controller for smooth, fine starts and stops.

The platform is rated for up to 2 workers and is designed for indoor use on firm, level surfaces — it is not rated for outdoor or windy conditions. A platform extension adds 35.43 in of working length, and the steel chassis keeps the lowered footprint compact at 72.44 in long and 29.92 in wide.

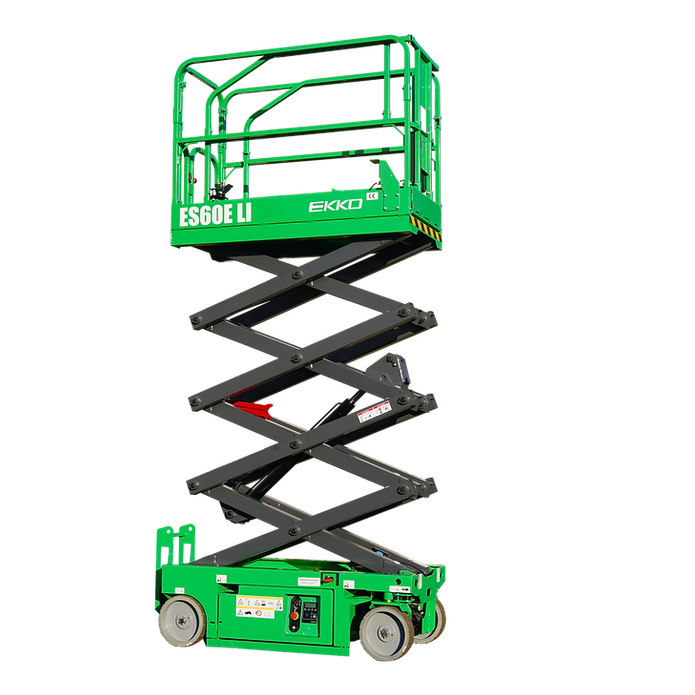

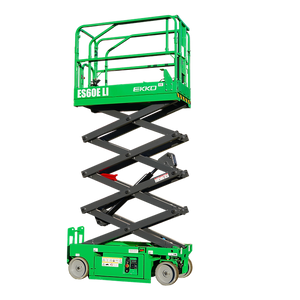

Green EKKO ES60E-Li scissor lift raised with the scissor stack extended and platform guardrails up — EKKO ES60E-Li raised with the scissor stack extended and guardrails up

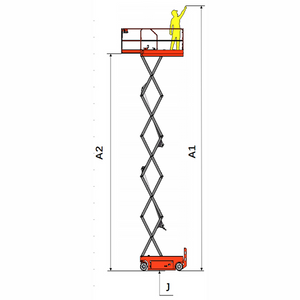

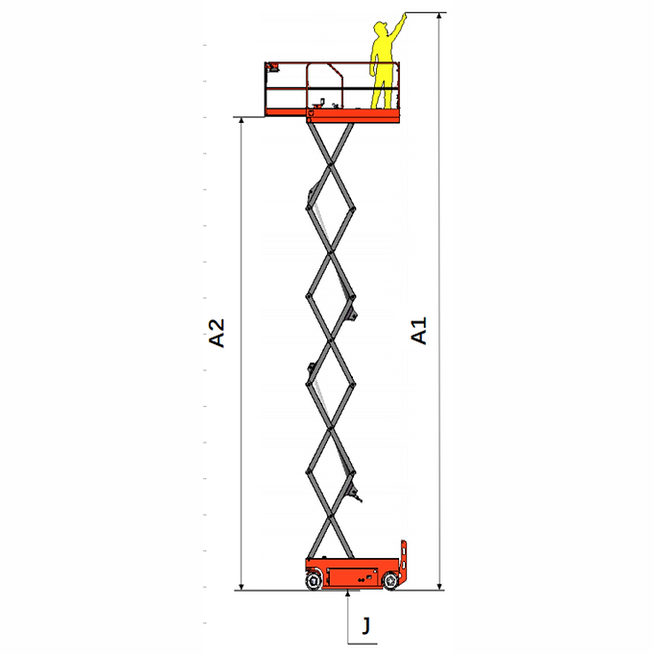

Line diagram of a scissor lift fully raised with an operator, marking working height, platform height and ground clearance — Diagram marking working height, platform height and ground clearance points

Front-wheel drive (double front wheels) and rear-wheel braking (double rear wheels) move the lift at up to 4 km/h (about 2.5 mph) when lowered and a creep speed of 0.8 km/h (about 0.5 mph) when raised. The platform rises in 18 seconds and lowers in 28 seconds, climbs grades up to 30%, and turns within a 61 in outside radius with a zero-inch inside radius. The supplier states compliance with the GB25849 and EN280 work-platform standards. It ships via LTL freight.

Features

19 ft (228 in) maximum platform height; 25.5 ft (307 in) working height
Rated for up to 2 workers, for indoor use on firm, level surfaces
25.6V 150Ah lithium battery
Proportional control through a Curtis controller
Front-wheel drive with rear-wheel braking
Platform extension adds 35.43 in of working length
Climbs grades up to 30%
Steel construction
Complies with GB25849 and EN280 standards
3-year limited warranty

Specifications

EKKO ES60E-Li Specifications
Model	ES60E-Li
Maximum working height	25.5 ft (307 in)
Maximum platform height	19 ft (228 in)
Overall length	72.44 in
Overall width	29.92 in
Overall height (guardrail up)	85.75 in
Overall height (guardrail folded)	72.5 in
Platform size (L x W)	64.96 x 29.92 in
Guardrail height	43.31 in
Platform extension	35.43 in
Ground clearance (lowered)	2.36 in
Ground clearance (raised)	0.59 in
Maximum workers (indoor)	2
Drive speed (lowered)	0–4 km/h (0–2.5 mph)
Drive speed (raised)	0–0.8 km/h (0–0.5 mph)
Turning radius (inside)	0 in
Turning radius (outside)	61 in
Rise / fall time	18 s / 28 s
Maximum tilt angle (front / side)	3° / 1.5°
Gradeability	30%
Control	Proportional (Curtis controller)
Drive	Double front wheels
Braking	Double rear wheels
Tire size	12.71 x 3.93 in
Lift motor	2.2 kW
Drive motors	0.7 kW x2
Battery	25.6V / 150Ah lithium
Charger output current	36 A
Control voltage	24 VDC
Hydraulic tank	8 L (2.1 gal)
Total weight	3,356 lbs
Compliance	GB25849, EN280

Warranty

The ES60E-Li is backed by a 3-year limited warranty.

FAQ

How high does the platform reach?

The platform raises to 19 ft (228 in), for a working height of about 25.5 ft (307 in). A platform extension adds another 35.43 in of working length.

Is it for indoor or outdoor use?

The ES60E-Li is designed for indoor use on firm, level surfaces and is rated for up to 2 workers. It is not rated for outdoor or windy conditions.

What powers it, and how is it controlled?

A 25.6V 150Ah lithium battery drives the lift, with proportional control through a Curtis controller. It uses front-wheel drive and rear-wheel braking.

How fast does it drive and lift?

It drives at up to 4 km/h (about 2.5 mph) when lowered and 0.8 km/h (about 0.5 mph) when raised. The platform rises in 18 seconds and lowers in 28 seconds.

What standards does it meet?

The supplier states compliance with the GB25849 and EN280 work-platform standards.

What warranty does it carry?

A 3-year limited warranty.

Documents

Manual and technical documents for the ES60E-Li are available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
