EKKO ES40E-Li Aerial Work Platform Lift Height 13' (157'')

Name: EKKO ES40E-Li Aerial Work Platform Lift Height 13' (157'')
Brand: EKKO Lifts
SKU: ES40E-Li
Price: 12798.0 USD
Availability: InStock

SKU ES40E-Li

In Stock

$12,798.00 - $12,798.00

$12,798.00

$12,798.00 - $12,798.00

$12,798.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

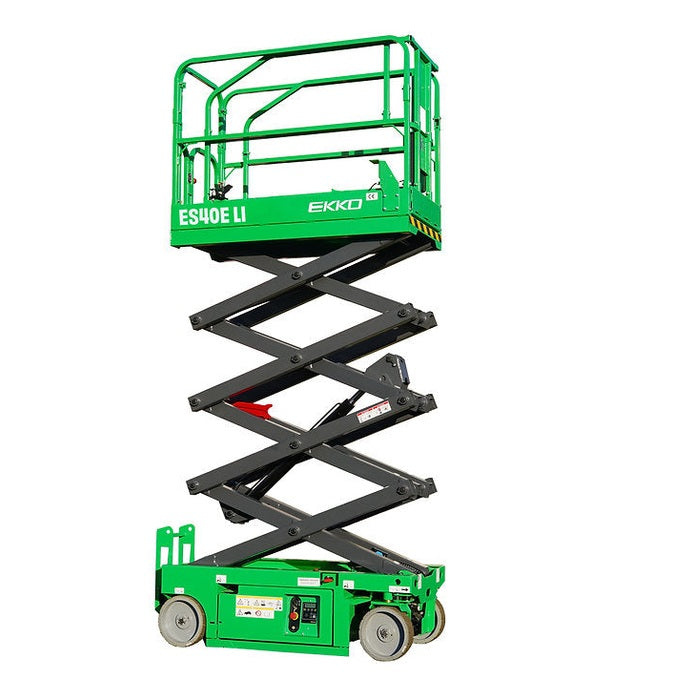

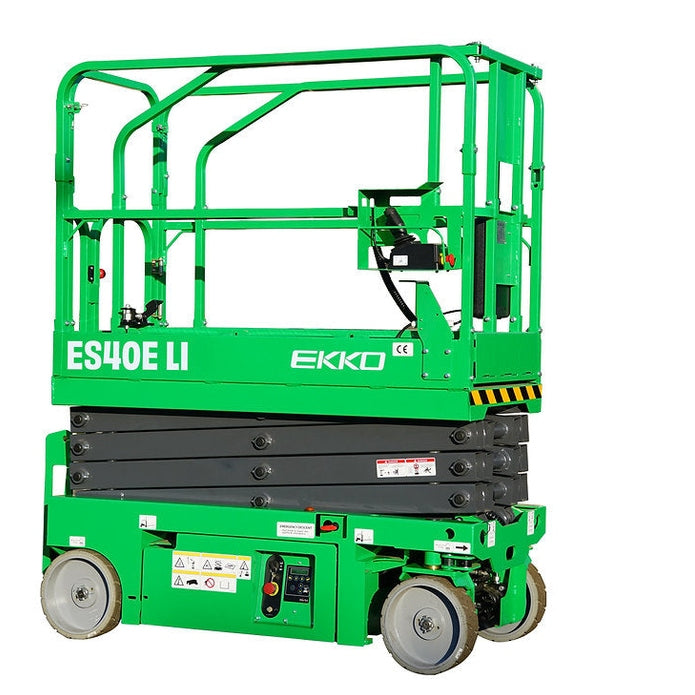

The EKKO ES40E-Li is a self-propelled lithium scissor lift that raises a work platform to 13 ft (157 in), for a maximum working height of 19.7 ft. It is built on a steel chassis with four wheels and a Curtis controller for proportional drive and lift control, and complies with GB25849 and EN280 aerial work platform standards.

Its wind rating is 0 m/s, so the ES40E-Li is an indoor platform — sized for warehouse picking, maintenance, stocking, and overhead installation work on flat, finished floors. Up to two workers can occupy the platform indoors, and a 23.6 in roll-out extension adds reach over racking or fixtures without repositioning the base.

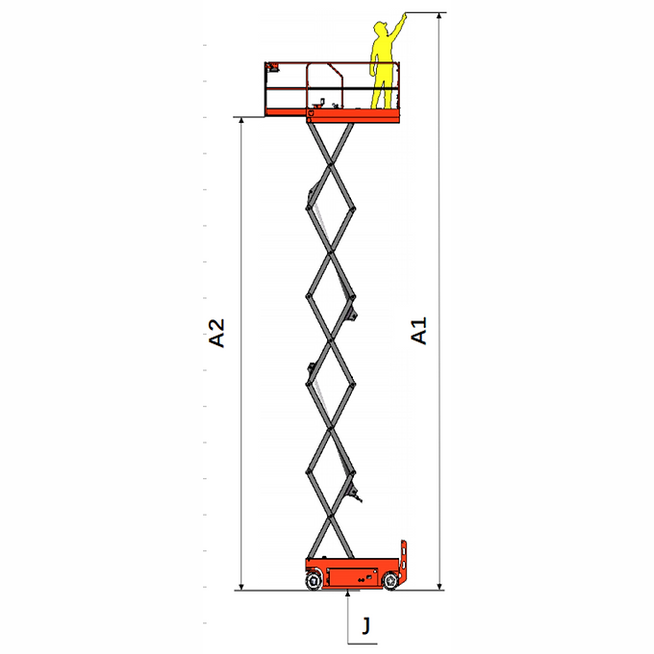

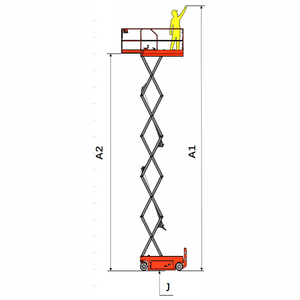

Side-view diagram of the ES40E-Li raised to full height with an operator on the platform, dimension lines labeled A1 and A2 — Platform height (A2) and full working height (A1)

The machine drives at up to 4 km/h (2.5 mph) stowed and 0.8 km/h (0.5 mph) while raised, with a zero-inch inside turning radius for tight aisles. Stowed, it stands 76.8 in tall — or 63 in with the guardrails folded down to clear low doorways — and measures 57.1 in long by 29.9 in wide. It climbs grades up to 25%.

Power comes from a 25.6 V / 75 Ah lithium battery driving a 1.2 kW lift motor and dual 0.4 kW drive motors. The charger accepts 100–240 VAC, so it runs on a standard wall outlet between shifts.

Features

13 ft (157 in) maximum platform height, 19.7 ft maximum working height
Self-propelled lithium drive with Curtis proportional control
25.6 V / 75 Ah lithium battery
Two-person indoor platform with a 23.6 in roll-out extension
Steel construction with folding guardrails (76.8 in to 63 in stowed height)
Complies with GB25849 and EN280 standards
3-year limited warranty

Specifications

EKKO ES40E-Li Aerial Work Platform Specifications
Maximum platform height	13 ft (157 in)
Maximum working height	19.7 ft (236.2 in)
Overall height (guardrails up)	76.8 in
Overall height (guardrails folded)	63 in
Overall length	57.1 in
Overall width	29.9 in
Platform size (L x W)	50.4 x 29.1 in
Platform extension	23.6 in
Guardrail height	43.3 in
Wheelbase	40.6 in
Ground clearance (stowed / raised)	2.36 in / 0.59 in
Extended-platform load rating	220 lbs
Maximum workers (indoor)	2
Drive speed (stowed)	0–4 km/h (0–2.5 mph)
Drive speed (raised)	0–0.8 km/h (0–0.5 mph)
Raise / lower time	25 s / 25 s
Gradeability	25%
Turning radius (inside / outside)	0 in / 61 in
Max allowable tilt (front / side)	3° / 1.5°
Tire size	9 x 3.1 in
Battery	25.6 V / 75 Ah lithium
Lift motor	1.2 kW
Drive motors	0.4 kW x2
Charger input	100–240 VAC
Charger output	10 A
Control voltage	24 VDC
Hydraulic tank	3 L
Total weight	2,046 lbs

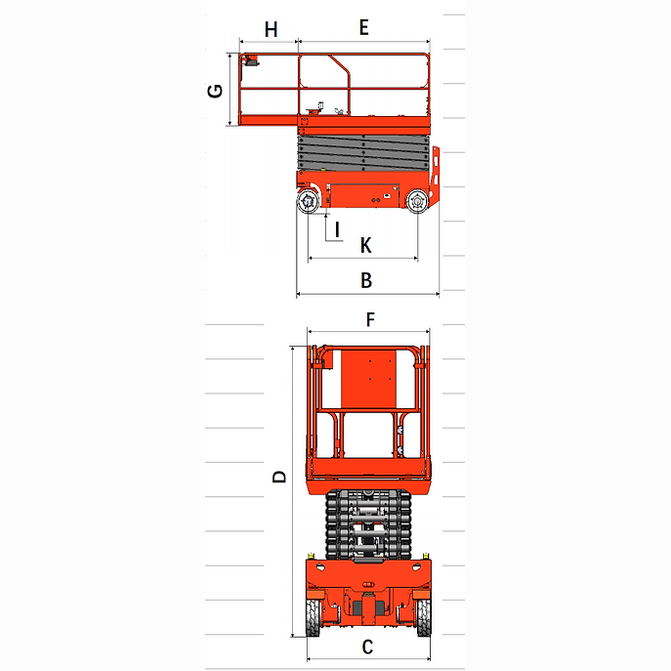

Dimensioned side and end-view line drawings of the ES40E-Li scissor lift with lettered measurement callouts — Dimensional drawing, side and end views

Warranty

The EKKO ES40E-Li is backed by a 3-year limited warranty.

FAQ

Can the ES40E-Li be used outdoors?

Its wind rating is 0 m/s and it is rated for two workers indoors, so it is intended for indoor use on flat, finished floors.

What is the difference between the 13 ft and 19.7 ft heights?

13 ft (157 in) is the maximum platform height — the surface you stand on. 19.7 ft is the maximum working height, the platform height plus a standing operator's reach.

How is it powered and charged?

A 25.6 V / 75 Ah lithium battery powers the lift and drive motors. The charger accepts 100–240 VAC and runs on a standard wall outlet.

What standards does it meet?

The ES40E-Li complies with GB25849 and EN280 aerial work platform standards.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
