EKKO ES120E-Li Scissor Lift Height 39' (468'')

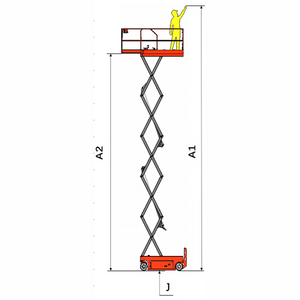

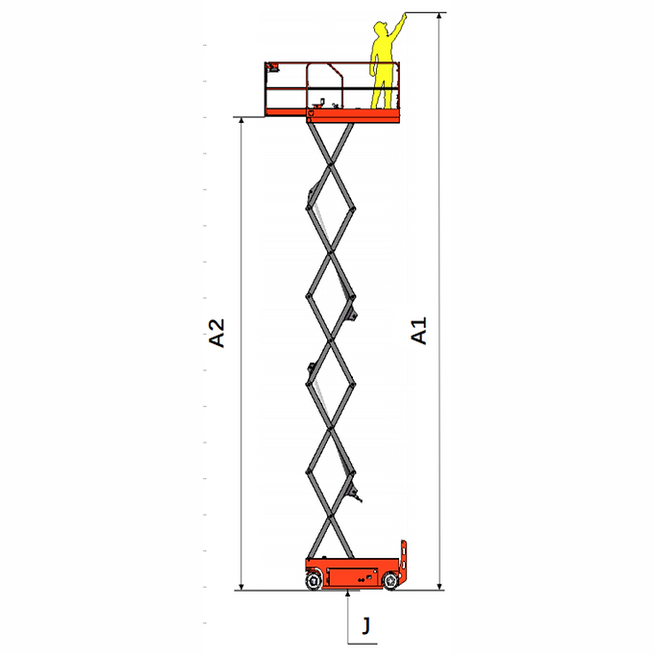

The EKKO ES120E-Li is a self-propelled electric scissor lift that raises a 700 lb work platform to a 39 ft (468 in) platform height, putting an operator at roughly a 45.6 ft (547 in) working height once they reach overhead. It runs on a 25.6-volt lithium-ion battery, steers on four wheels, and is managed by a Curtis controller with proportional control, so raising, lowering, and travel stay smooth and predictable rather than abrupt. The chassis is steel, and the machine is built to the GB25849 and EN280 work-platform standards.

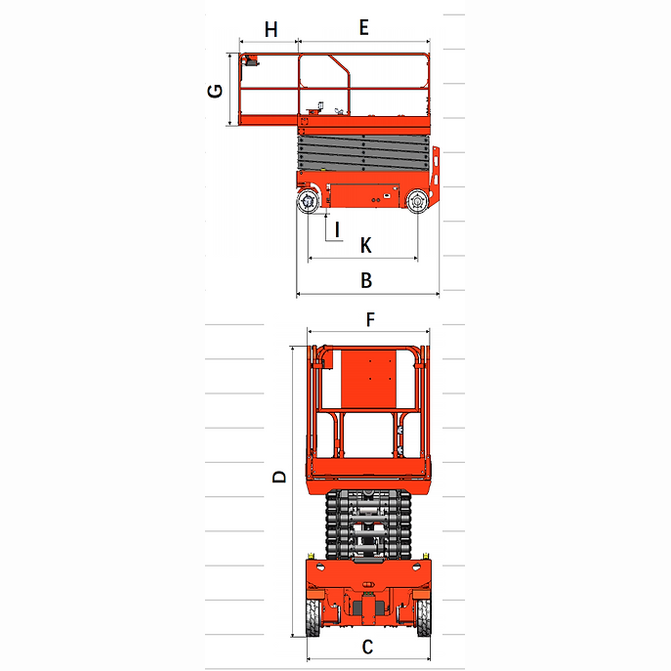

This is an indoor-rated platform: it is sized for high-reach work on flat interior floors, not outdoor or windy conditions (see Compatibility). A roll-out deck extension adds 39.37 in of forward reach over the work area, and the guardrails fold down to bring the stowed machine low enough to clear standard doorways and trailer openings. At 45.27 in wide with a zero-degree inside turning radius, it works in tight aisles and around fixed obstructions.

• Lithium-ion power. A 25.6 V / 230 Ah lithium-ion battery drives the 3.3 kW lift motor and dual 0.7 kW travel motors, with onboard charging at 36 A output.
• Curtis controller with proportional control. Lift, lower, and travel respond proportionally to operator input for fine load positioning.
• Roll-out platform extension. The deck extends 39.37 in to reach over fixed obstacles, rated for 265 lb on the extended section.
• Folding guardrails. Rails fold to drop the stowed height to 77 in so the machine clears standard doorways and fits through trailer openings for transport.
• Four-wheel drive base. Double front-wheel drive and double rear-wheel braking on 15 x 5 in solid tires, with 30% gradeability for ramps and inclines.
• Compact, maneuverable footprint. 45.27 in overall width and a zero-inch inside turning radius for work in narrow aisles.

The ES120E-Li is rated for indoor use only. It carries up to 2 workers on flat interior floors, with a maximum allowable lateral force of 400 N indoors. It is not rated for outdoor operation — the outdoor wind and lateral-force ratings are zero, so it should not be used in open or windy conditions. The machine is built to the GB25849 and EN280 mobile elevating work platform standards.

The ES120E-Li is covered by a 3-year limited warranty.

How high does this scissor lift reach?

The platform raises to 39 ft (468 in). With an operator standing and reaching overhead, the usable working height is about 45.6 ft (547 in).

How much can the platform hold?

The platform is rated for 700 lb total. The roll-out deck extension is separately rated for 265 lb.

Can it be used outdoors?

No. The ES120E-Li is rated for indoor use only, on flat interior floors. It has no outdoor wind rating and should not be operated in open or windy conditions.

How is it powered?

It runs on a 25.6 V / 230 Ah lithium-ion battery with onboard charging at 36 A output. No fuel, no emissions.

Will it fit through a standard doorway?

The machine is 45.27 in wide, and folding the guardrails brings the stowed height down to 77 in, which clears most standard doorways and trailer openings.

Can it handle ramps?

It is rated for 30% gradeability when stowed for travel.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
