EKKO ES120E Aerial Work Platform Lift Height 39' (468'')

The EKKO ES120E is a self-propelled electric scissor lift that raises a work platform to a 39 ft platform height — about 45 ft of working reach — on a compact, steel-built chassis. It carries a 700 lb platform capacity for two workers plus their tools and material, and runs on a quiet, emission-free 48-volt battery system. It is built for indoor overhead work in warehouses, distribution centers, retail buildouts, and maintenance where a ladder or a towable lift won't reach.

Drive and lift are both powered. The operator positions the machine with proportional control through a Curtis controller, drives on the front wheels, and brakes on the rear, so spotting under a fixture, moving down an aisle, and feathering the platform up to height are all done from the deck. With a zero-inch inside turning radius, the ES120E turns within its own footprint, and the folding guardrail drops the stowed height to 77 inches to clear standard doorways and roll into a trailer.

A roll-out platform extension reaches 39 inches further (rated 265 lb) so the deck can extend over racking or equipment without repositioning the base. The machine complies with GB25849 and EN280, the design and safety standards for mobile elevating work platforms, and is backed by a 3-year limited warranty. The ES120E is part of the broader EKKO Lifts equipment range carried by Forklift King, and ships via LTL freight — contact us to arrange delivery and scheduling.

• 39 ft platform height, 45 ft working height. Reaches overhead fixtures, mezzanine edges, racking tops, and ceiling services that put a step ladder out of range.
• 700 lb platform capacity. Holds two workers indoors plus tools and material; a roll-out deck extension reaches 39 inches further and is rated for an added 265 lb.
• 48-volt electric drivetrain. Four 12-volt batteries (300 Ah) feed a 3.3 kW lift motor and twin 0.7 kW drive motors — quiet, emission-free running for indoor air-quality-sensitive work.
• Proportional control through a Curtis controller. Front-wheel drive and rear-wheel braking with smooth, metered platform and travel response.
• Zero-inch inside turning radius. Turns inside its own footprint; the outside turning radius is 86.61 inches for tight aisles and stockrooms.
• Folding guardrail. Drops the stowed height from 102.36 inches to 77 inches to pass through standard doorways and load into a trailer.
• Steel construction with 15 x 5 in tires and a 30% gradeability rating.

The ES120E is rated for indoor use. Its specifications list a maximum of two occupants indoors, zero allowable wind speed, and no outdoor occupancy rating — it belongs inside a building, not on an open site exposed to wind. Plan it for warehouse, distribution, retail, and facility-maintenance work on level interior floors.

Footprint and fit: overall length 94.5 in, width 45.27 in, and a 72.83 in wheelbase, with a zero-inch inside turning radius for tight aisles. Ground clearance is 3.74 in stowed and 0.78 in raised. At a 6,490 lb total weight, confirm the floor, slab, or mezzanine where it will operate can carry the load before delivery.

It complies with GB25849 and EN280, the standards governing mobile elevating work platforms.

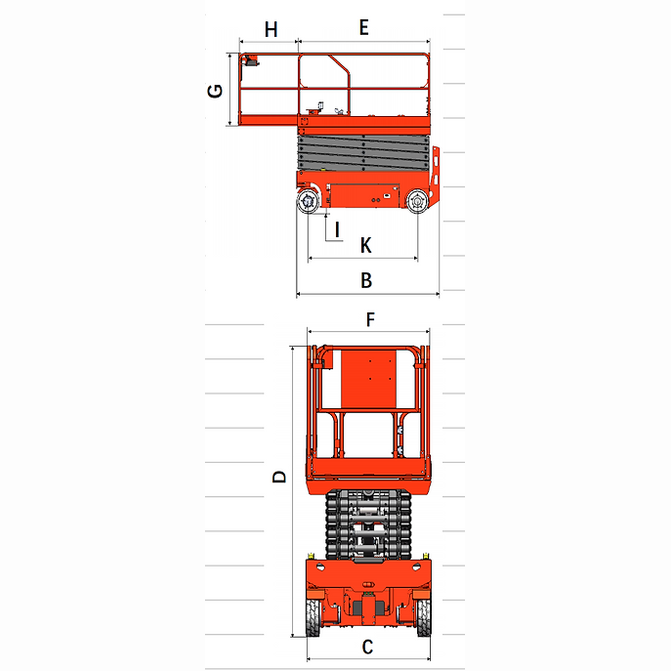

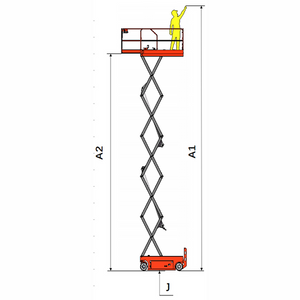

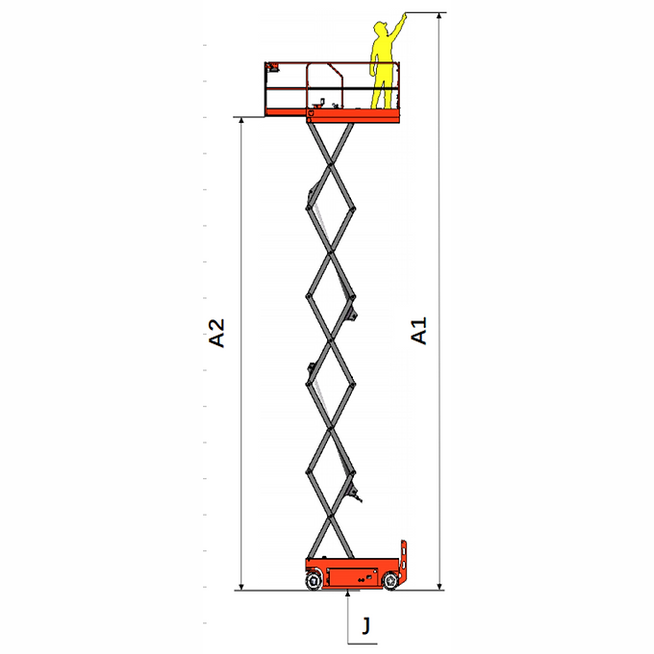

The diagrams below key to the lettered rows in the specification table — the working- and platform-height references at full extension, and the chassis dimensions in the stowed position.

The EKKO ES120E is covered by a 3-year limited warranty. Coverage scope and claim handling are confirmed at the time of sale; full warranty details are available on request.

Is the ES120E rated for outdoor use?

No. It is rated for indoor use only — two occupants indoors, zero allowable wind speed, and no outdoor occupancy rating. Operate it inside a building on level floors.

How high does it reach?

The platform raises to a 39 ft platform height (468 inches), which gives roughly 45 ft of working height (547 inches) at a person's reach.

How much can the platform hold?

The platform is rated for 700 lb. The roll-out platform extension adds 39 inches of reach and is rated for an additional 265 lb.

Is it self-propelled, and how fast does it move?

Yes. It drives on the front wheels with proportional control through a Curtis controller, at 0–3.2 km/h (about 2.0 mph) when stowed and 0–0.8 km/h (about 0.5 mph) while raised.

What powers it, and how is it charged?

A 48-volt battery system (four 12-volt batteries, 300 Ah) drives a 3.3 kW lift motor and twin 0.7 kW drive motors. The charger runs on a standard 100–240 VAC supply at 36 A output.

Will it fit through a standard doorway?

With the guardrail folded, the stowed height drops to 77 inches and the machine is 45.27 inches wide, with a zero-inch inside turning radius to maneuver in tight spaces.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
