EKKO ES100E Aerial Work Platform Lift Height 32.8' (394'')

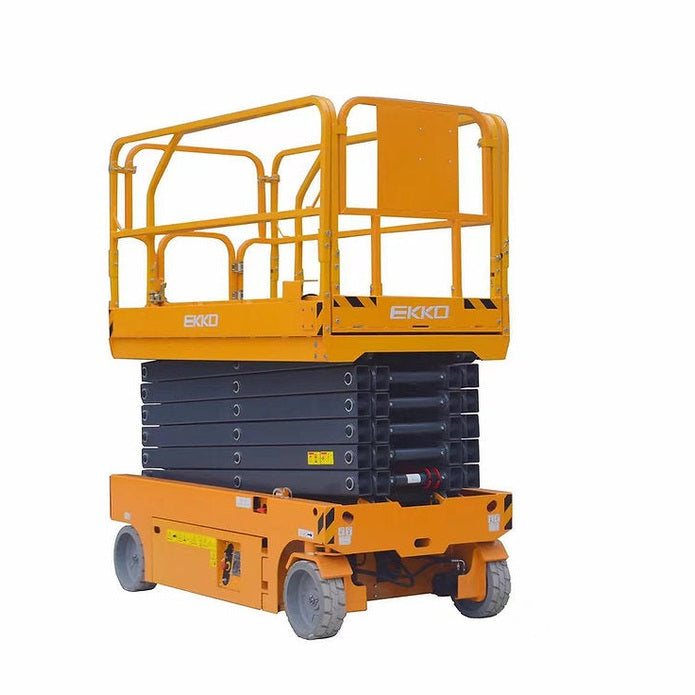

The EKKO ES100E is a self-propelled electric scissor lift that raises a work platform to 32.8 ft — a working height of about 39 ft once an operator's reach is added — and carries up to 700 lb on the platform. It runs on a 24-volt battery with proportional control through a Curtis controller, so a single operator drives it into position, raises the deck, and works overhead without a generator, cords, or engine exhaust.

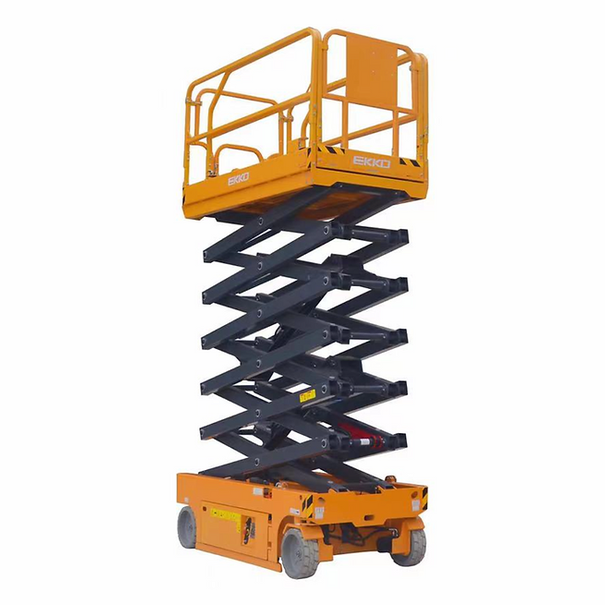

EKKO Lifts builds the ES100E on a steel chassis with a multi-section scissor stack and a 94.5 in by 45.27 in footprint. Two front drive wheels and two rear braking wheels give it a zero-inch inside turning radius, so it pivots within its own length, and 30% gradeability lets it climb ramps to the work area. With the guardrails folded the machine stands 72 in tall, and ground clearance drops from 3.74 in to 0.78 in once the platform is raised, settling the chassis for a stable elevated stance on its 15 in by 5 in solid tires.

Unlike a strictly indoor lift, the ES100E is rated for both indoor and outdoor work — up to two occupants indoors or one outdoors, in winds up to 12.5 m/s (about 28 mph) — and meets EN280 and GB25849 standards. A roll-out deck extension adds 39.37 in of reach and carries up to 265 lb when extended. The platform raises in 52 seconds and lowers in 48, and the onboard charger accepts standard 100–240-volt power, so the battery recharges from an ordinary wall outlet.

• Raises to a 32.8 ft platform height — about 39 ft working height with operator reach
• 700 lb platform capacity; 265 lb on the 39.37 in roll-out deck extension
• Rated for indoor and outdoor use — 2 occupants indoors, 1 outdoors, in winds up to 12.5 m/s (about 28 mph)
• Self-propelled 24-volt electric drive — 3.3 kW lift motor and two 0.7 kW drive motors
• Proportional control through a Curtis controller
• Zero-inch inside turning radius and 30% gradeability for tight, sloped work areas
• 94.5 in x 45.27 in footprint; folds to 72 in tall for transport and storage
• Onboard charger runs on standard 100–240-volt power
• Solid tires, 15 in x 5 in
• Meets EN280 and GB25849 standards
• Steel construction
• 3-year limited warranty

The ES100E is covered by a 3-year limited warranty.

How high does the ES100E reach?

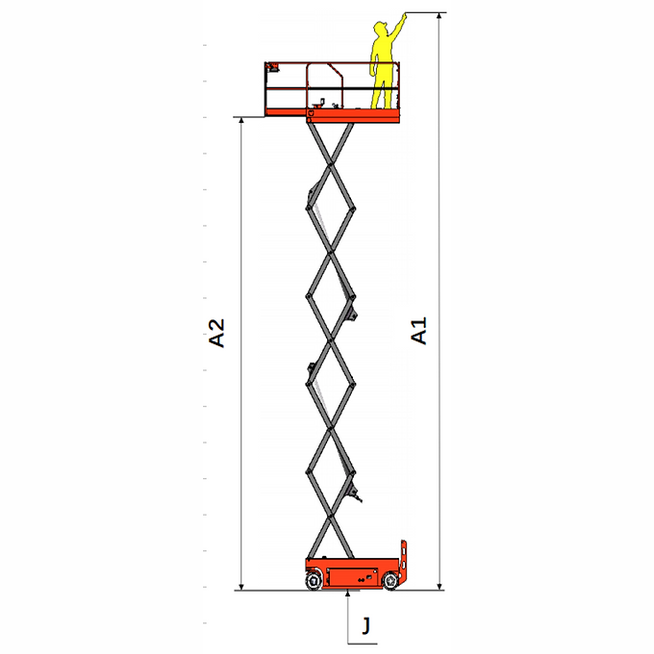

The platform raises to 32.8 ft (394 in), for a working height of about 39 ft (472 in) once an operator's reach is included.

How much can it carry, and how many people?

Up to 700 lb on the main platform and up to 265 lb on the 39.37 in roll-out deck extension. The platform is rated for two occupants indoors or one outdoors.

Can it be used outdoors?

Yes. The ES100E is rated for outdoor use in winds up to 12.5 m/s (about 28 mph) with one occupant, and for indoor use with two. It meets EN280 and GB25849 standards.

How is it powered and charged?

A 24-volt battery drives the lift and both drive wheels. The onboard charger accepts standard 100–240-volt power, so it recharges from an ordinary wall outlet.

How compact is it for transport and storage?

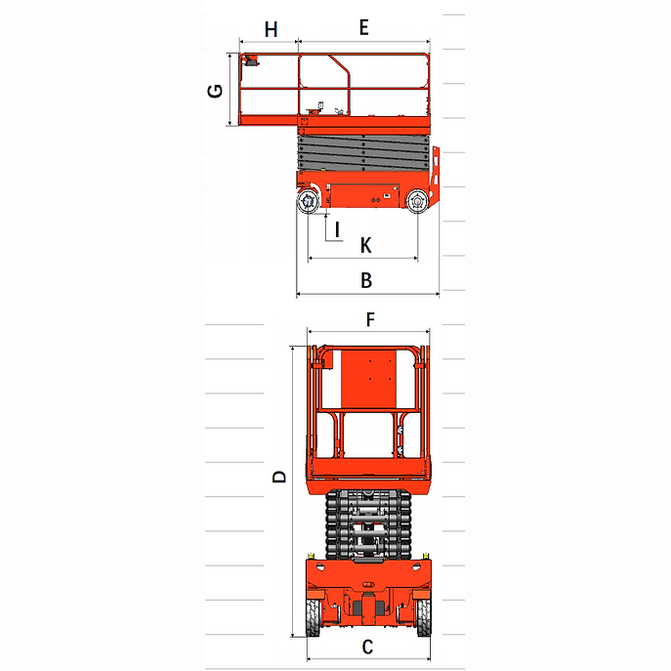

With the guardrails folded the machine stands 72 in tall and 45.27 in wide, with a 94.5 in overall length and a zero-inch inside turning radius. At 6,204 lb total weight it ships by freight.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
