EKKO ES100E-Li Scissor Lift Height 32.8' (394'')

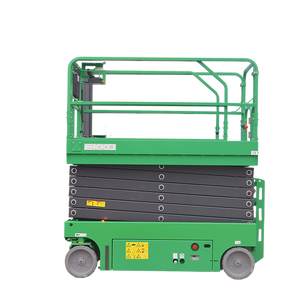

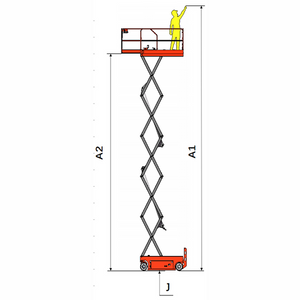

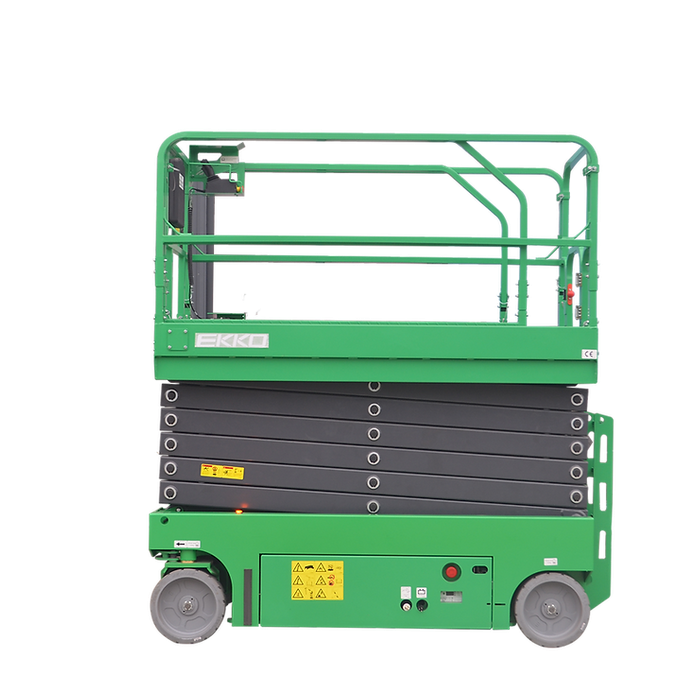

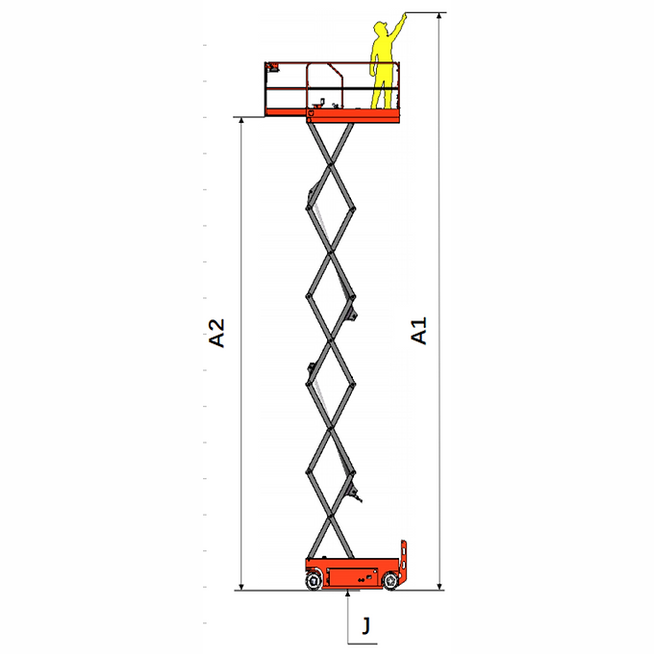

The EKKO ES100E-Li is a self-propelled electric scissor lift that raises a work platform to a 32.8 ft (394 in) platform height — about 39 ft (472 in) of working height once an operator is standing and reaching overhead. It carries a 700 lb platform capacity, enough for two workers and their tools indoors (one outdoors), and runs on a 25.6-volt lithium battery rather than a fuel engine, so it produces no exhaust and can work inside occupied buildings.

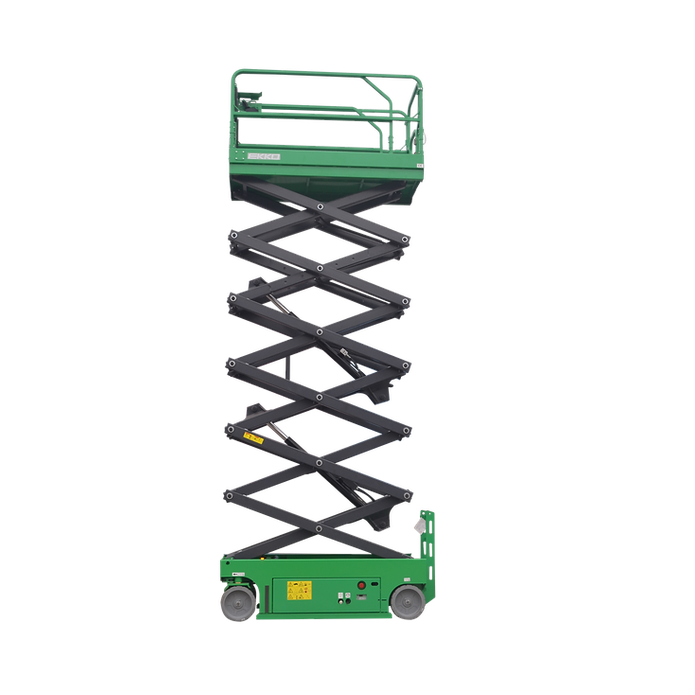

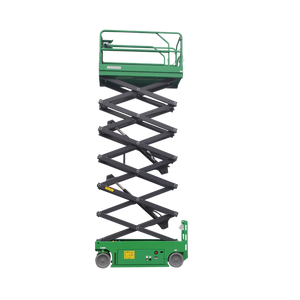

At full height the platform reaches roughly three stories of overhead work — lighting, HVAC, racking, signage, and building maintenance — while a 39.37 in slide-out deck extends the work area out over obstacles without repositioning the base. With the guardrails folded down, the unit stows to 72 in tall, low enough to roll through a standard doorway and into a freight elevator; with guardrails up, overall height is 96 in.

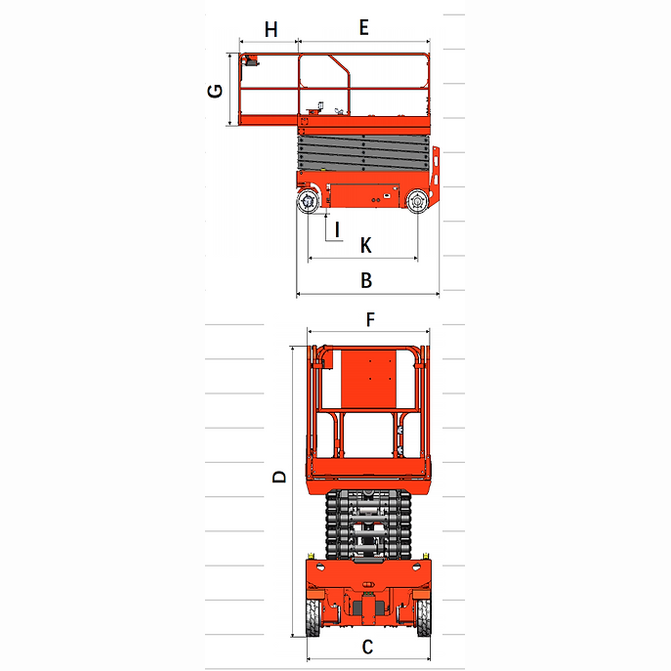

The drive base measures 94.5 in long and 45.27 in wide on a 72.83 in wheelbase, and it steers with a zero-inch inside turning radius, so it pivots within its own footprint in tight aisles. Dual 0.7 kW drive motors and a 3.3 kW lift motor move it up to 2.0 mph stowed (0.5 mph elevated), climb a 30% grade, and support both indoor and outdoor use in winds up to 12.5 m/s (about 28 mph).

Operation runs through a Curtis controller with proportional control for smooth, metered lift and drive. The platform and chassis are steel, the machine rides on 15 x 5 in tires, and it complies with GB25849 and EN280 aerial work platform standards. EKKO backs it with a 3-year limited warranty.

At 6,304 lb, the ES100E-Li ships by freight; contact Forklift King to arrange scheduling and delivery.

• 32.8 ft platform height, 39 ft working height. Reaches overhead work up to about three stories — lighting, HVAC, building maintenance, and high racking.
• 700 lb platform capacity. Rated for two workers and tools indoors, or one worker outdoors; the slide-out deck extension carries up to 265 lb.
• 25.6V lithium battery. A 230Ah lithium pack drives the 3.3 kW lift motor and dual 0.7 kW drive motors — no engine and no exhaust, suited to indoor work.
• 39.37 in slide-out deck. Extends the platform out over obstacles without moving the base.
• Curtis controller with proportional control. Metered, progressive lift and drive response.
• Zero-inch inside turning radius. Pivots within its own footprint; 86.61 in outside turning radius for tight aisles.
• Indoor and outdoor rated. Operates outdoors in winds up to 12.5 m/s (about 28 mph) and climbs a 30% grade.

The EKKO ES100E-Li is covered by a 3-year limited warranty. Contact Forklift King for full warranty terms and coverage details before purchase.

How high does the EKKO ES100E-Li reach?

The platform raises to 32.8 ft (394 in), which gives about 39 ft (472 in) of working height once an operator is standing and reaching overhead.

How much weight can the platform hold?

The platform is rated for 700 lb — enough for two workers and tools indoors, or one worker outdoors. The 39.37 in slide-out deck extension is rated for an additional 265 lb.

Can it be used indoors and outdoors?

Yes. It is rated for both, and because it runs on a lithium battery it produces no exhaust for indoor work. Outdoors, it is rated to operate in winds up to 12.5 m/s (about 28 mph).

How is it powered, and will it drive itself?

It is a self-propelled electric machine powered by a 25.6V / 230Ah lithium battery. Dual 0.7 kW drive motors move it up to 2.0 mph stowed (0.5 mph elevated) and climb a 30% grade; a 3.3 kW motor handles the lift.

Will it fit through a doorway and into tight spaces?

With the guardrails folded the unit is 72 in tall and 45.27 in wide, so it clears a standard doorway and freight elevator. It also has a zero-inch inside turning radius, pivoting within its own footprint.

What standards does it meet?

The ES100E-Li complies with GB25849 and EN280 aerial work platform standards.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
