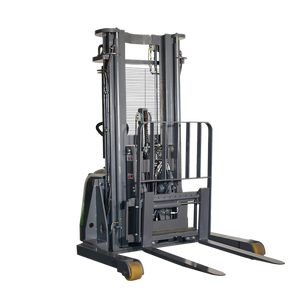

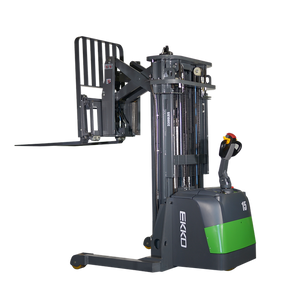

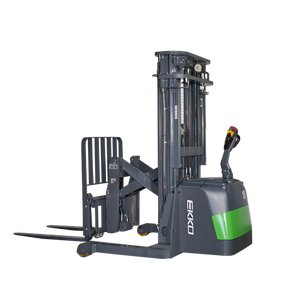

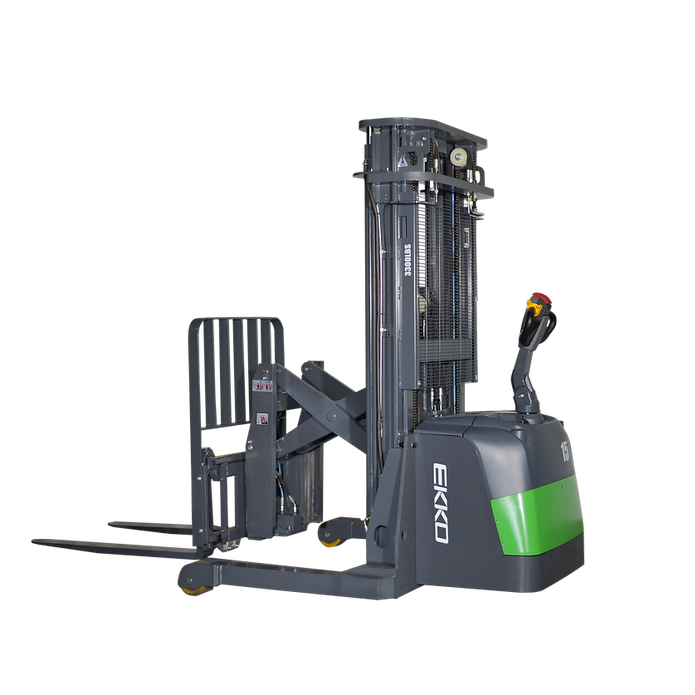

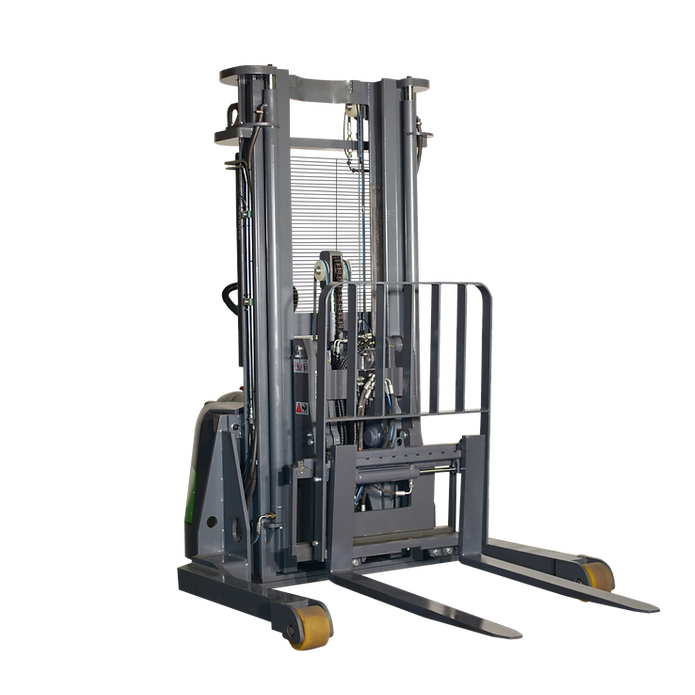

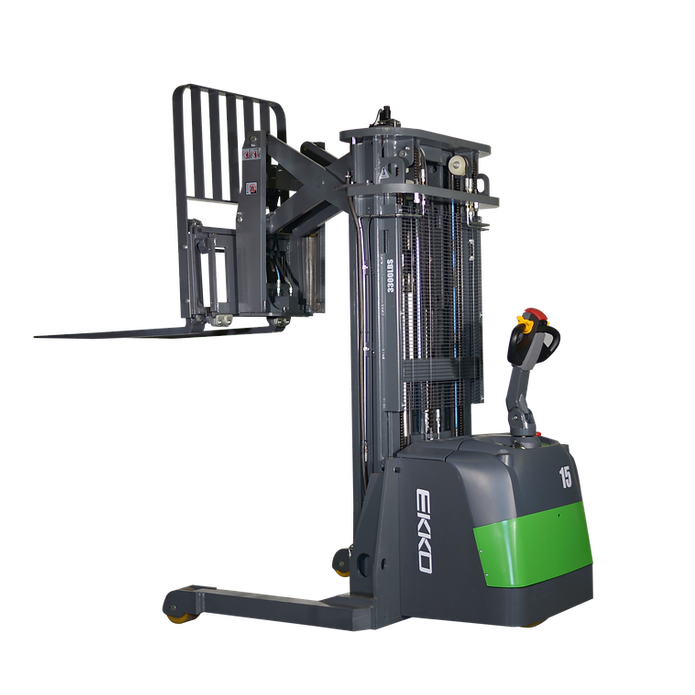

EKKO ER15-216Li Lithium Walkie Reach Truck 3300 lb Cap., 216" Height

The EKKO ER15-216Li is a lithium-powered walkie reach truck rated for 3,300 lb at a 24" load center, with a mast that lifts to 216 inches (18 feet) and a pantograph that extends 19.7 inches forward. It combines the versatility of a forklift, a reach truck, and a walkie stacker in a single tiller-controlled platform — built for loading and unloading trucks, dock work, stock rooms, manufacturing floors, and warehouses where aisle space is at a premium.

The ER15-216Li runs a 24V / 200Ah lithium-ion battery through a Curtis Instrument controller, with a 1.5 kW AC drive motor and a 4.5 kW lifting motor. Electronic Power Steering (EPS), side shift, mast tilt, and a 24V / 50A charger are all standard. The chassis is robotic-welded steel; wheels are polyurethane for indoor concrete; the operator walks behind on a low-footprint tiller with ergonomic, grouped controls. The lithium pack supports opportunity charging, eliminates watering and equalization maintenance, and removes off-gassing concerns indoors.

• 3,300 lb capacity at 24" load center, 216-inch lift height, 66.9" free lift
• 19.7" reach distance via the pantograph for selective pallet rack putaway and retrieval
• 24V / 200Ah lithium-ion battery — opportunity-charge ready, no watering, no off-gassing, lighter than equivalent lead-acid
• 24V / 50A charger included
• 1.5 kW AC drive motor with AC speed control, paired with a 4.5 kW lifting motor
• Curtis Instrument controller
• Electronic Power Steering (EPS) to reduce operator effort across long shifts
• Side shift for left-right load alignment without repositioning the truck
• Mast tilt for load-engagement and travel stability
• Lift control valve for precise mast handling
• Polyurethane wheels sized for indoor concrete

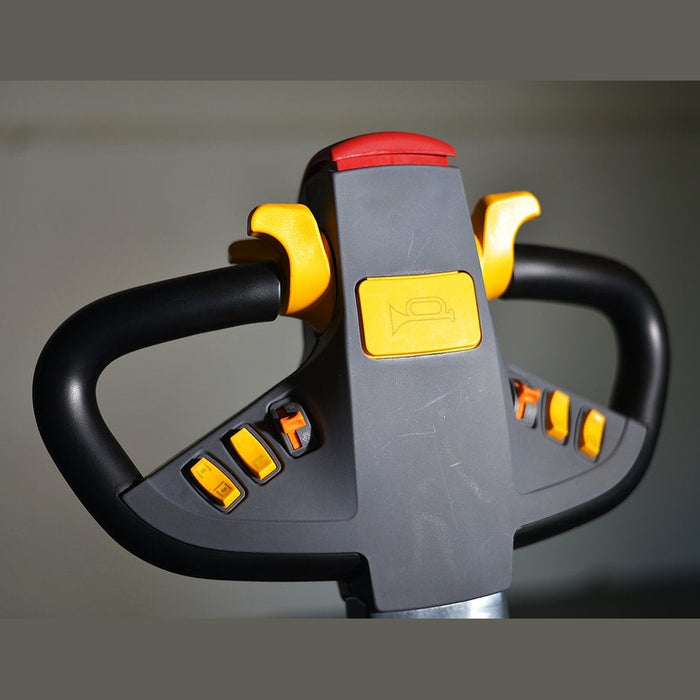

• Ergonomic tiller controls with emergency stop and dual throttle butterflies (shown above)
• Robotic-welded steel chassis
• Compact footprint — 86.6" overall length, 32.3" body width, 59.1" leg width, 63.4" turning radius

• EKKO ER15-216Li walkie reach truck
• 24V / 200Ah lithium-ion battery
• 24V / 50A charger

Will the ER15-216Li fit my warehouse aisle?

The truck has a 63.4-inch minimum turning radius and a 32.3" body width (59.1" over the outrigger legs). Measure your narrowest active aisle against the turning radius plus pallet length before ordering. Walkie reach trucks are designed for tighter aisles than stand-up rider equivalents.

Will it clear my doorways and ceiling?

Lowered mast height is 95 inches (7 ft 11 in) for transit through doorways. Maximum lift is 216 inches (18 ft), so confirm the ceiling above any racking the forks need to reach.

What are the lithium battery advantages over lead-acid?

The 24V / 200Ah lithium-ion pack supports opportunity charging (top up during breaks rather than full discharge-recharge cycles), eliminates watering and equalization maintenance, removes off-gassing concerns indoors, and weighs less than an equivalent lead-acid pack — which simplifies battery handling and improves usable energy. Runtime per charge depends on duty cycle (lifts per hour, average lift height, load weight, travel distance); send us your shift profile and we’ll relay an estimate from EKKO.

Is the charger included?

Yes. The 24V / 50A charger ships with the truck. Confirm the input voltage requirement with us before installing so you can verify a matching outlet at the charging location.

How does the ER15-216Li ship and arrive?

Walkie reach trucks of this class ship via LTL freight in a crate. Confirm freight specifics (dock-to-dock, liftgate, residential, lead time) with us before placing the order so the carrier matches your receiving setup.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
