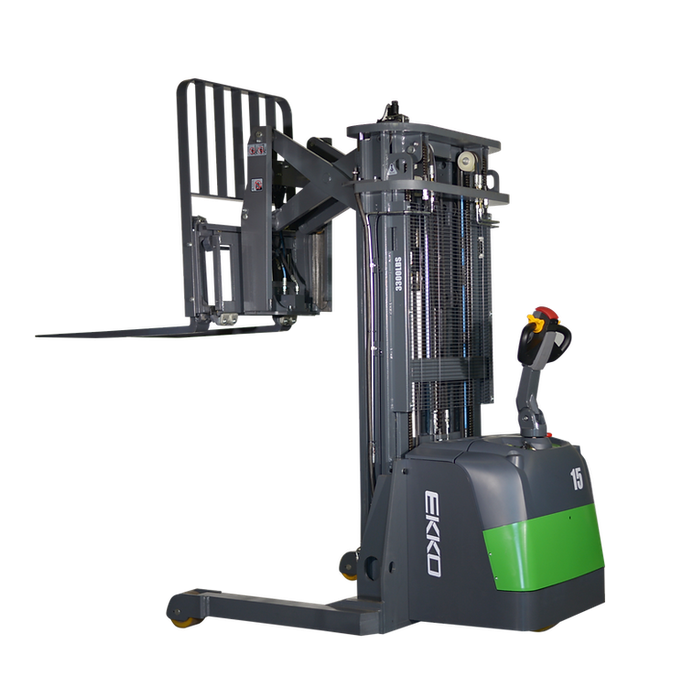

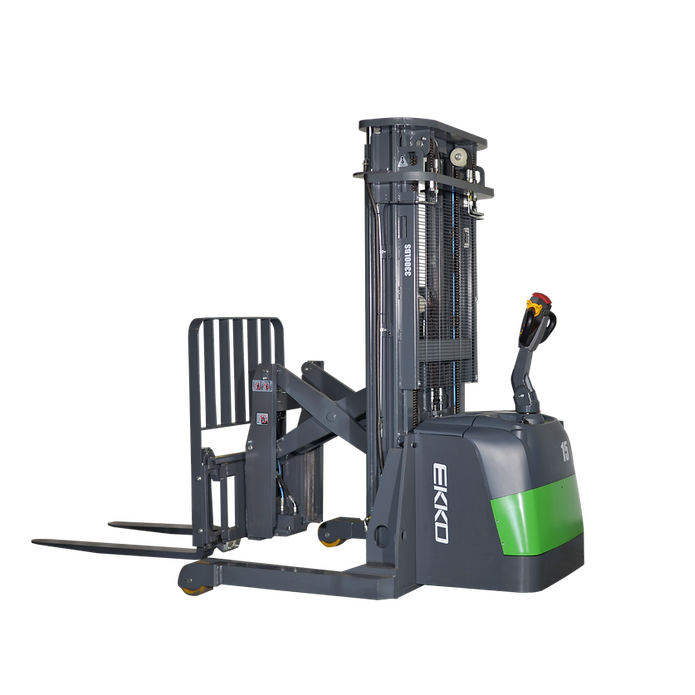

EKKO ER15-177Li Lithium Walkie Reach Truck 3300 lb Cap., 177" Height

Name: EKKO ER15-177Li Lithium Walkie Reach Truck 3300 lb Cap., 177" Height
Brand: EKKO Lifts
SKU: ER15-177Li
Price: 26999.0 USD
Availability: InStock

SKU ER15-177Li

In Stock

$26,999.00 - $26,999.00

$26,999.00

$26,999.00 - $26,999.00

$26,999.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO ER15-177Li is a lithium-powered walkie reach truck — a walk-behind design that pairs the reach of a sit-down reach truck with the compact footprint of a pedestrian stacker. It carries 3,300 lb at a 24-inch load center and lifts to 177 inches (14.75 ft), with a 19.7-inch reach stroke that places and retrieves pallets a full pallet-depth into racking.

EKKO positions the ER15-177Li for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and general warehousing. Walking behind the truck instead of riding it keeps the chassis short: an 86.6-inch overall length and a 63.4-inch turning radius let it work aisles a rider truck can't, while side shift squares loads to the rack without repositioning the whole truck.

Operation is through an ergonomic tiller head with twin butterfly controls, a horn button, and grip loops sized for either hand. Electronic power steering (EPS) with AC speed control keeps maneuvering light across a full shift.

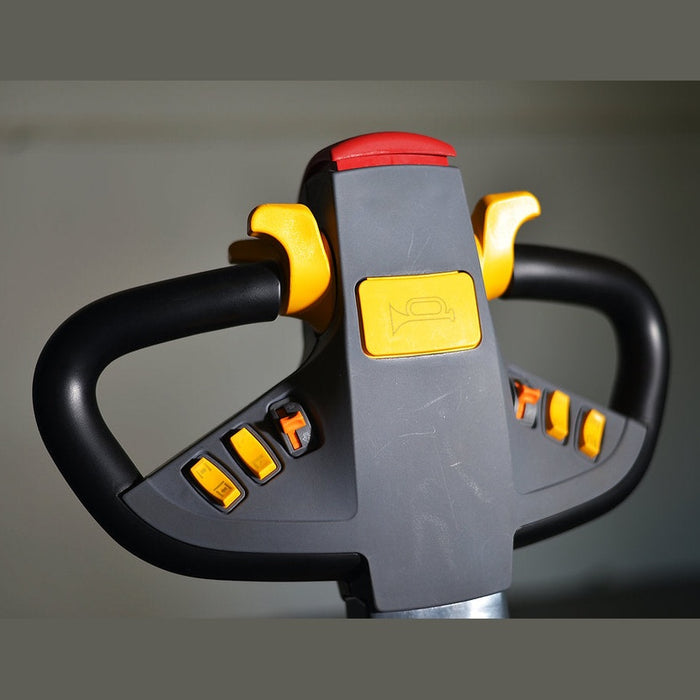

Walkie tiller control head with twin butterfly drive levers, horn button, and grip loops — Ergonomic tiller head with twin butterfly controls and grip loops.

The 24V drivetrain runs a 1.5 kW AC drive motor and a 4.5 kW lift motor under a Curtis instrument controller. A 24V/200Ah lithium battery and a matched 24V/50A charger are included, so the truck arrives ready to put into service. Lithium supports opportunity charging between tasks with no battery swaps, watering, or off-gassing, keeping the truck on the floor instead of in a charging room. Polyurethane wheels suit smooth indoor concrete.

The chassis is steel with robotic-welded construction.

Features

24V/200Ah lithium battery and matched 24V/50A charger included
Reach mechanism with a 19.7" reach stroke, side shift, and mast tilt
177" maximum lift height with 60.2" free lift
Curtis instrument controller
Electronic power steering (EPS) with AC speed control
Ergonomic walk-behind tiller controls
1.5 kW AC drive motor and 4.5 kW lift motor
Polyurethane wheels
Robotic-welded steel chassis

What's Included

24V/200Ah lithium battery
24V/50A charger
Side shift, standard equipment

Specifications

EKKO ER15-177Li Specifications
Load capacity	3,300 lb
Load center	24"
Maximum lift height	177" (14.75 ft)
Free lift	60.2"
Lowered mast height	82.3"
Reach distance	19.7"
Side shift	Yes
Overall length	86.6"
Overall width (body / legs)	32.3" / 59.1"
Individual fork (thickness × width)	1.38" × 3.9"
Fork width (spread)	32.2"
Turning radius	63.4"
Drive motor	24V AC, 1.5 kW
Lift motor	4.5 kW
Steering	Electronic power steering (EPS), AC speed control
Controller	Curtis
Battery	24V / 200Ah lithium (included)
Charger	24V / 50A (included)
Wheels	Polyurethane
Service weight	4,565 lb

FAQ

Is the battery lithium, and is it included?

Yes. The ER15-177Li ships with a 24V/200Ah lithium battery and a matched 24V/50A charger, both included.

How high does it lift, and how much can it carry?

It lifts to 177" (14.75 ft) and is rated for 3,300 lb at a 24" load center.

Is this ride-on or walk-behind?

Walk-behind. It's a walkie reach truck operated from an ergonomic tiller head with electronic power steering.

Will it fit narrow aisles?

It has an 86.6" overall length, a 63.4" turning radius, and a 19.7" reach stroke, and is designed for loading docks, stock rooms, manufacturing floors, and general warehousing.

Does it have side shift?

Yes, side shift is standard equipment.
