EKKO EPF20Li Full-Powered Lithium Pallet Jack 4400 lb Capacity

EKKO EPF20Li Full-Powered Lithium Pallet Jack 4400 lb Capacity

SKU EPF20Li

In Stock
$3,228.30 - $3,228.30
$3,228.30
$3,228.30 - $3,228.30
$3,228.30
Call/Text Us: 307-441-9566 Call Us
Live Chat With an Expert Live Chat
WINTER SALE: 5% Applied At Checkout
Winter is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires soon.

Description

-

The EKKO EPF20Li is a full-powered lithium electric walkie pallet jack rated to move 4,400 lbs at a 23.6-inch load center. Both travel and lifting run under power, so an operator walks the load through the building instead of pumping a handle and muscling a stalled jack up a ramp — the work that slows crews down on a manual unit.

It is sized for loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and warehouse aisles. A 57.8-inch turning radius plus pinwheel capability let it pivot tight in dock corners and narrow stacking lanes, and polyurethane drive and load wheels keep it rolling cleanly on smooth, level indoor floors.

The chassis is built from steel and joined with robotic welding for consistent weld quality across the frame. Power comes from a 48-volt lithium iron phosphate (LiFePO4) battery with a matching charger in the box, so the unit arrives ready to run. Backed by a 3-year limited warranty from EKKO Lifts, the EPF20Li ships via freight.

Features

-
  • Full-powered operation — powered travel and powered lift, so neither driving nor raising the load depends on operator effort
  • 48-volt lithium iron phosphate battery with charger included
  • 4,400 lb load capacity at a 23.6" load center
  • Pinwheel capability for tight-radius turns in confined aisles and dock areas
  • Polyurethane drive and load wheels for smooth, level indoor floors
  • Ergonomic tiller handle with integrated controls
  • Electromagnetic braking
  • AC drive control
  • Steel construction joined with robotic welding
  • Low operating noise, rated at ≤70 dB(A)

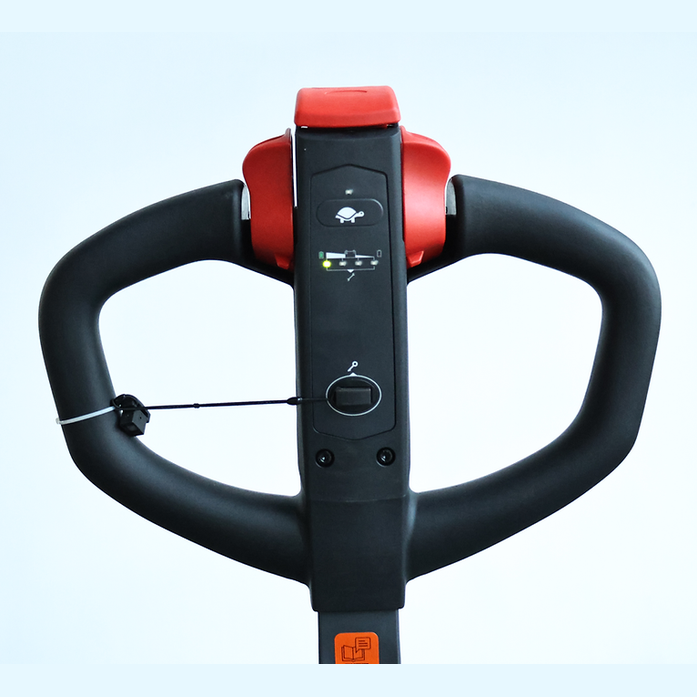

Close-up of the EKKO EPF20Li tiller handle and control head
Ergonomic tiller handle and control head

What's Included

-
  • One 48V / 30Ah lithium iron phosphate battery (22.4 lbs)
  • Matching battery charger

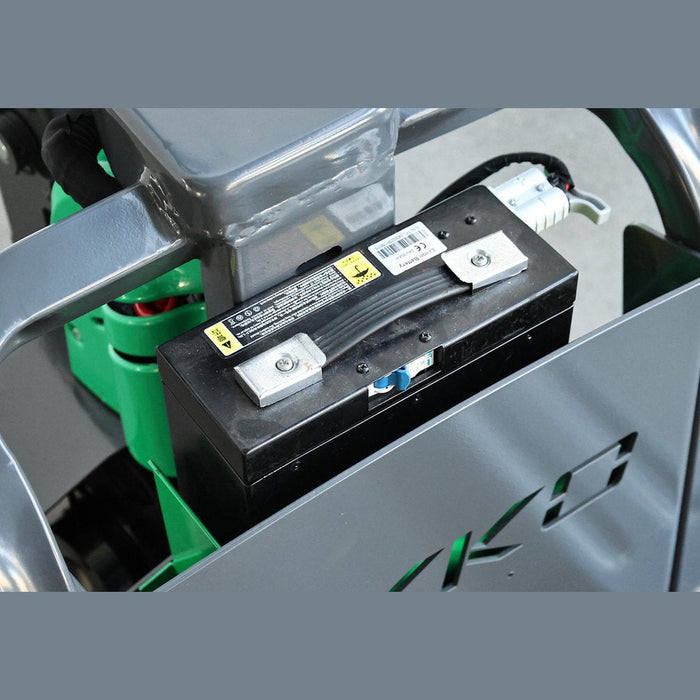

Lithium-ion battery installed in the EKKO EPF20Li chassis with power connector attached
Included lithium battery seated in the chassis

Specifications

-
EKKO EPF20Li Specifications
Model EPF20LI
Drive Type Electric
Operation Walkie (walk-behind)
Load Capacity 4,400 lbs
Load Center 23.6"
Lift Height (raised forks) 7.87"
Lowered Fork Height 2.95"
Fork Size (each) 1.97" H × 5.91" W × 45" L
Overall Fork Width 26.97"
Overall Length 65.86"
Power Unit Length 17.83"
Overall Width 26.97"
Wheelbase 51.69"
Track Width 21.06"
Turning Radius 57.8"
Min. Ground Clearance 1.38"
Right-Angle Stacking Aisle 73.78" / 75.75"1
Travel Speed 2.6 mph loaded / 2.8 mph unloaded
Max Gradeability 5% loaded / 10% unloaded
Tire Material Polyurethane (PU)
Drive Wheel Ø8.27" × 2.76" (1)
Load Wheels Ø3.15" × 3.35" (2)
Brake Type Electromagnetic
Drive Control AC
Drive Motor 0.75 kW
Lift Motor 0.8 kW
Battery 48V / 30Ah lithium iron phosphate
Battery Weight 22.4 lbs (±5%)
Noise Level ≤70 dB(A)
Service Weight (with battery) 390 lbs
Warranty 3-year limited
1 Right-angle stacking aisle: 73.78" for 39.37" × 47.24" pallets crossways; 75.75" for 31.5" × 47.24" pallets lengthways.

Warranty

-

The EPF20Li is covered by a 3-year limited warranty.

FAQ

-

How much can the EPF20Li lift?

It is rated for 4,400 lbs at a 23.6" load center. The forks raise to 7.87" and lower to 2.95".

Does it come with a battery and charger?

Yes. It ships with one 48V / 30Ah lithium iron phosphate battery and a matching charger.

Will it fit my aisles?

The turning radius is 57.8", and right-angle stacking needs roughly 73.78" to 75.75" of aisle depending on pallet size and orientation. Pinwheel capability helps it turn tight in confined spaces.

What floors is it built for?

The polyurethane drive and load wheels are suited to smooth, level indoor surfaces — loading docks, stock rooms, manufacturing floors, and warehouse aisles.

How fast does it travel?

About 2.6 mph loaded and 2.8 mph unloaded.

Documents

-

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
