EKKO EPF15Li Full-Powered Lithium Pallet Jack 3300 lb Capacity

Name: EKKO EPF15Li Full-Powered Lithium Pallet Jack 3300 lb Capacity
Brand: EKKO Lifts
SKU: EPF15Li
Price: 2548.3 USD
Availability: InStock

SKU EPF15Li

In Stock

$2,548.30 - $2,548.30

$2,548.30

$2,548.30 - $2,548.30

$2,548.30

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EPF15Li is a 3,300 lb capacity lithium walkie pallet jack with full-power drive and full-power lift — no hand-pumping, no manual push. The 24V LiFePO4 battery, 0.8 kW lift motor, and 0.75 kW drive motor handle the pallet shuttling that hand jacks can't sustain through a full shift: out of trailers, across docks, into pick aisles, and onto staging lanes.

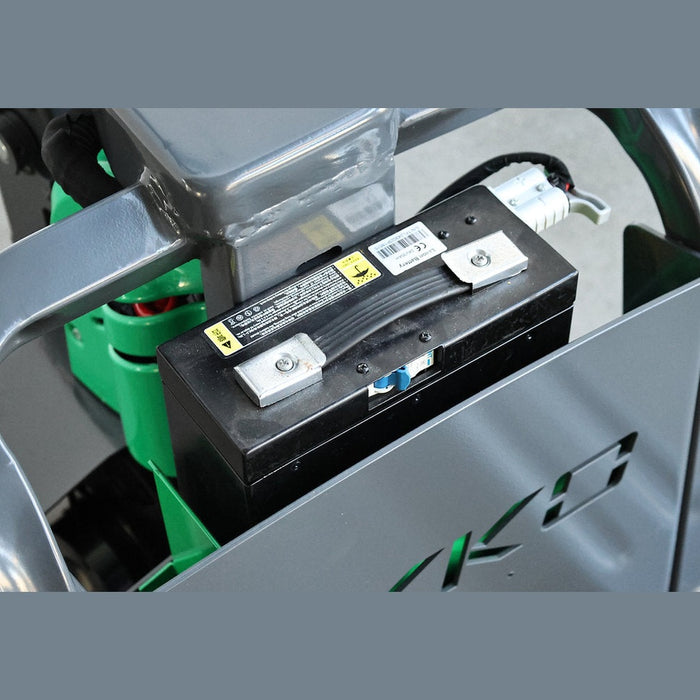

Lithium iron phosphate is the design choice that separates this walkie from a lead-acid equivalent. The 24V / 30Ah LiFePO4 battery ships installed onboard with a quick-connect harness and weighs 17 lb. LiFePO4 chemistry accepts partial charges without memory effect, holds voltage flat across the discharge curve, and does not off-gas — no separate ventilated battery room needed. The charger ships with the unit.

Forks are 45 inches long with a 26.97-inch overall outside width and a 2.95-inch lowered fork height for standard pallet entry. Raised height is 7.87 inches — enough to clear floor and dock-plate transitions during transport. Wheels are polyurethane: one drive wheel up front and two load-bearing wheels at the fork tips.

Drive package: 4.2 km/h (2.6 mph) loaded / 4.5 km/h (2.8 mph) unloaded walk-behind speed, pinwheel turning for tight in-aisle reversals, and an electromagnetic brake. Maximum gradeability is 5% loaded / 10% unloaded — for ramps and floor transitions, not for outdoor grading.

Overall length is 65.86 inches with a 57.8-inch turning radius. Required aisle width is 73.78 inches for 39.37 × 47.24 in pallets crossways and 75.75 inches for 31.5 × 47.24 in pallets lengthways. Service weight (with battery) is 345 lb. Noise level is ≤70 dB(A) — quiet enough for indoor warehouse operation alongside other workers without ear protection.

The EPF15Li carries a 3-year limited warranty. EKKO manufactures Class I–V material handling equipment from a 50,000-plus square-foot facility in Pomona, California.

Features

3,300 lb capacity at a 23.6-inch load center.
Full-power drive and full-power lift — no hand-pumping, no manual push.
24V / 30Ah LiFePO4 (lithium iron phosphate) battery and charger included.
0.75 kW drive motor / 0.8 kW lift motor.
4.2 km/h (2.6 mph) loaded / 4.5 km/h (2.8 mph) unloaded drive speed.
45-inch fork length; 26.97-inch overall fork width.
2.95-inch lowered fork height for standard pallet entry.
7.87-inch raised fork height.
Polyurethane drive and load wheels.
Pinwheel turning capability for tight in-aisle reversals.
Electromagnetic brake.
≤70 dB(A) noise level for shared-floor indoor operation.
5% (loaded) / 10% (unloaded) maximum gradeability.

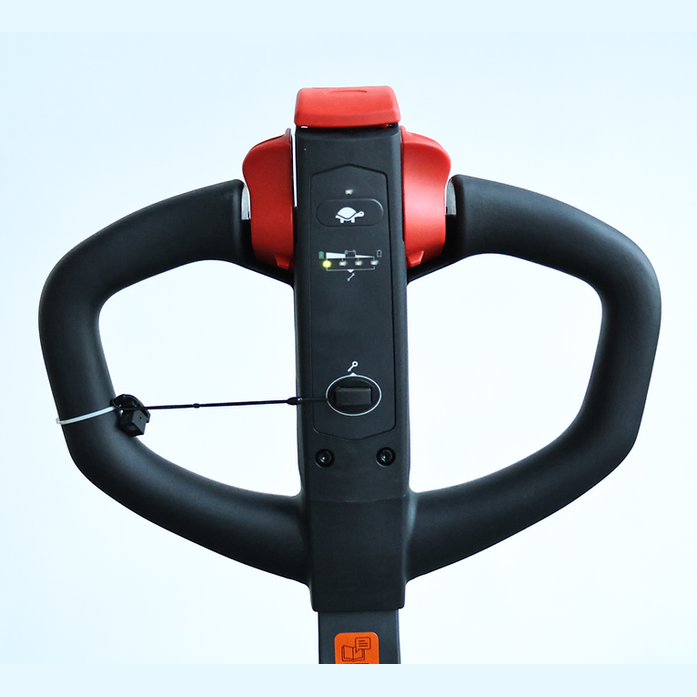

Ergonomic operator handle and controls.
Robotic-welded steel chassis.

Compatibility

The EPF15Li is built for indoor material handling on flat surfaces. Use cases the supplier highlights:

Loading and unloading trucks
Loading docks
Stock rooms
Manufacturing floors
Warehousing

Aisle-width references from the supplier spec sheet: 73.78 inches for 39.37 × 47.24 in (1000 × 1200 mm) pallets entered crossways; 75.75 inches for 31.5 × 47.24 in (800 × 1200 mm) pallets entered lengthways. Confirm aisle, doorway, and dock-door clearances against the jack's overall dimensions before specifying — especially if your operation runs 48 × 40 in GMA pallets, since the supplier-published aisle figures are for metric-pallet sizes.

What's Included

EKKO EPF15Li lithium walkie pallet jack
24V / 30Ah LiFePO4 battery (1 included, 17 lb)
Onboard charger
Integral forks (45-inch length)

Specifications

EKKO EPF15Li Specifications
Model	EPF15Li
Drive Type	Electric
Manner of Operation	Walkie (walk-behind)
Load Capacity	3,300 lb
Load Center	23.6 in
Distance Between Fork Backrest and Front Wheel	39.92 in
Wheel Base	51.69 in
Tire Material	Polyurethane (PU)
Drive Wheel Size	Ø 8.27 × 2.76 in
Bearing Wheel Size	Ø 3.15 × 3.35 in
Wheel Quantity (Front / Rear)	1× drive / 2× load
Tread	21.06 in
Raised Fork Height	7.87 in
Lowered Fork Height	2.95 in
Handle Height (Operating Position)	29.13–45.67 in
Overall Length	65.86 in
Body Length	17.83 in
Overall Width	26.97 in
Fork Size (Thickness × Width × Length)	1.97 × 5.91 × 45 in
Fork Width	26.97 in
Minimum Ground Clearance	1.38 in
Aisle Width (39.37 × 47.24 in pallets, crossways)	73.78 in
Aisle Width (31.5 × 47.24 in pallets, lengthways)	75.75 in
Turning Radius	57.8 in
Driving Speed (Loaded / Unloaded)	4.2 / 4.5 km/h (2.6 / 2.8 mph)
Maximum Gradeability (Loaded / Unloaded)	5% / 10%
Brake Type	Electromagnetic
Drive Motor	0.75 kW
Lift Motor	0.8 kW
Battery	24V / 30Ah LiFePO4 (included)
Battery Weight (±5%)	17 lb
Type of Drive Control	DC
Noise Level	≤ 70 dB(A)
Service Weight (with battery)	345 lb
Construction	Steel with Robotic Welding

Warranty

The EKKO EPF15Li ships with a 3-year limited warranty covering materials and workmanship. Specific coverage terms are detailed in the warranty documentation that ships with the unit; for the full warranty document before purchase, contact the Forklift King team.

FAQ

What is the rated capacity and lift height?

3,300 lb capacity at a 23.6-inch load center. Raised fork height is 7.87 inches; lowered fork height is 2.95 inches.

Are the battery and charger included?

Yes — a 24V / 30Ah LiFePO4 (lithium iron phosphate) battery and a matching charger ship with the unit. The battery weighs 17 lb and is housed onboard with a quick-connect harness.

Why lithium instead of lead-acid?

LiFePO4 batteries accept partial charges without memory effect (charge during breaks instead of needing a full overnight cycle), hold voltage flat across the discharge curve (consistent power until empty rather than tapering off), and do not off-gas — no separate ventilated battery room needed for charging.

How fast does it drive?

Walk-behind drive speed is 4.2 km/h (2.6 mph) loaded and 4.5 km/h (2.8 mph) unloaded.

What aisle width does it need?

The supplier publishes 73.78 inches for 39.37 × 47.24 in (1000 × 1200 mm) pallets entered crossways and 75.75 inches for 31.5 × 47.24 in (800 × 1200 mm) pallets entered lengthways. For 48 × 40 in GMA pallets — the US standard — confirm aisle width with the supplier or Forklift King before committing to a layout.

What is the service weight?

345 lb with battery. Confirm your floor, ramp, and dock plate ratings can support the loaded weight (345 lb truck + up to 3,300 lb payload) before commissioning.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
