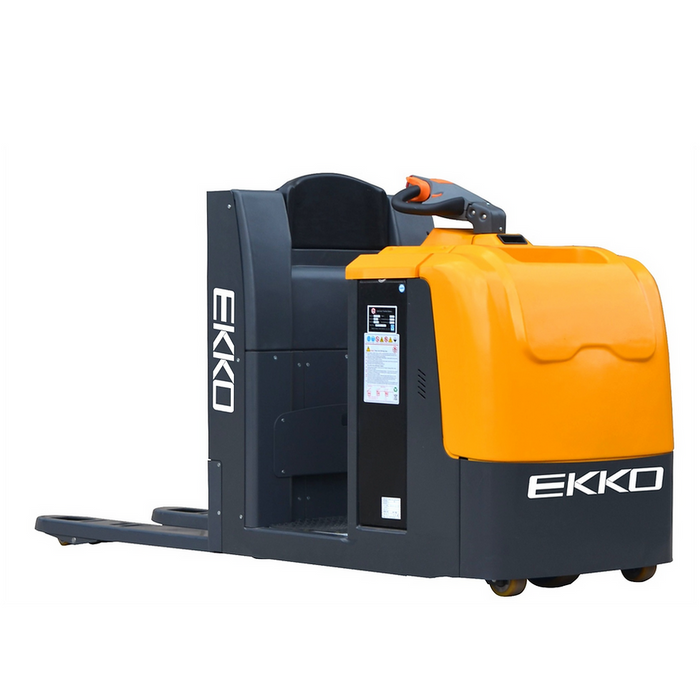

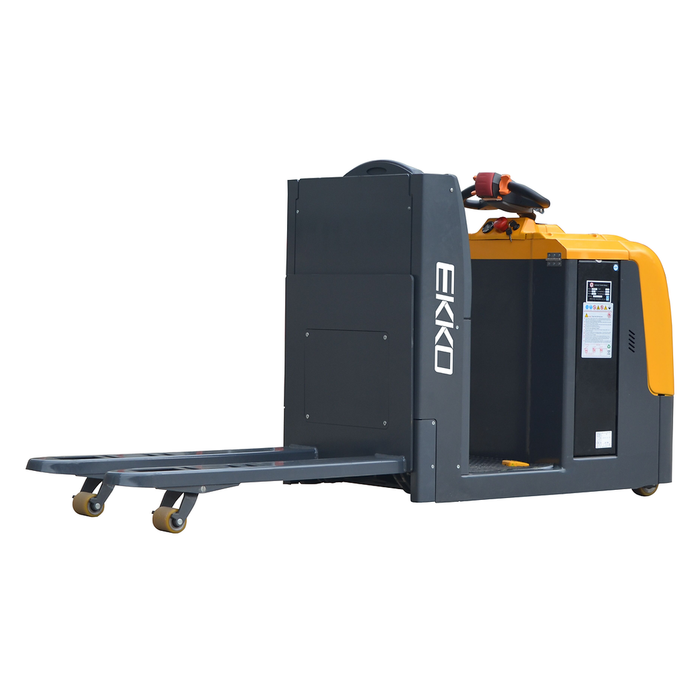

EKKO EPC30A Center-Controlled Rider Pallet Jack 5000lbs. Capacity

Name: EKKO EPC30A Center-Controlled Rider Pallet Jack 5000lbs. Capacity
Brand: EKKO Lifts
SKU: EPC30A
Price: 15298.3 USD
Availability: InStock

SKU EPC30A

In Stock

$15,298.30 - $15,298.30

$15,298.30

$15,298.30 - $15,298.30

$15,298.30

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EPC30A is a center-controlled rider pallet jack rated to 5,000 lb, with powered lift and powered drive for moving palletized loads across loading docks, stock rooms, manufacturing floors, and warehouse aisles. The operator stands on a center platform and rides with the load, so it holds up over the long hauls and high pick counts that wear down a walk-behind.

Drive comes from a German ZF AC drive motor managed by a Curtis controller, with electric power steering to cut steering effort across a full shift. A 24-volt, 360 Ah battery and an automatic 24V/50A charger are included, and the unit is backed by a 3-year limited warranty.

The frame is robotic-welded heavy-duty steel. Electromagnetic braking plus electronic neutral braking hold the truck when the throttle returns to center, and a belly-button reverse on the control head lets the operator stop and reverse to avoid being pinned. It rolls on polyurethane wheels with steel entry wheels and stability casters, and travels up to 3.4 mph. The EPC30A joins EKKO's range of electric material handling equipment.

Features

German ZF AC drive motor — 1.5 kW AC drive with a Curtis controller that holds a constant travel speed regardless of load.
Electric power steering — reduces steering effort across a full shift on a 5,000 lb truck.
24V / 360 Ah battery and charger included — automatic 24V/50A plug-in charger and an on-board battery discharge indicator gauge.
Electromagnetic and electronic neutral braking — automatic braking when the throttle returns to center for controlled stops.
Belly-button reverse safety — stops and reverses the unit to help the operator avoid collision or injury.
Turtle (creep) mode and horn — built into the ergonomic control head alongside throttle and lift/lower.
Polyurethane wheels with steel entry wheels and stability casters — sized for smooth, finished floors.
Robotic-welded heavy-duty steel frame — for repeatable weld quality across the chassis.

What's Included

EKKO EPC30A center-controlled rider pallet jack
24V / 360 Ah battery
Automatic 24V / 50A charger

Specifications

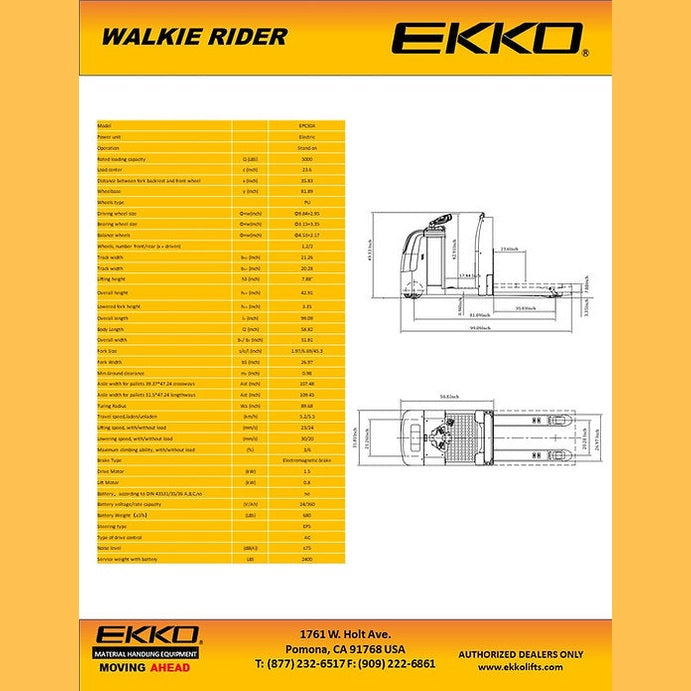

EKKO EPC30A Center-Controlled Rider Pallet Jack Specifications
Model	EPC30A
Power unit	Electric
Operation	Stand-on rider
Load capacity	5,000 lbs
Lifting height	7.88 in
Lowered fork height	3.35 in
Fork dimensions (thickness / width / length)	1.97 / 6.69 / 45.3 in
Outside fork spread	26.97 in
Overall length	99.09 in
Body length	58.82 in
Overall width	31.81 in
Overall height	42.91 in
Wheelbase	81.89 in
Turning radius	89.68 in
Min. ground clearance	0.98 in
Right-angle stacking aisle (39.4 x 47.2 in pallet, crossways)	107.48 in
Right-angle stacking aisle (31.5 x 47.2 in pallet, lengthways)	109.45 in
Travel speed (laden / unladen)	3.2 / 3.4 mph
Lifting speed (with / without load)	0.91 / 0.94 in/s
Lowering speed (with / without load)	1.18 / 0.79 in/s
Max gradient (with / without load)	3% / 6%
Brake type	Electromagnetic + electronic neutral
Drive motor	1.5 kW (German ZF AC)
Lift motor	0.8 kW
Steering	Electric power steering
Drive control	AC
Wheels	Polyurethane
Drive wheel size (dia. x width)	9.84 x 2.95 in
Battery	24V / 360 Ah
Battery weight	680 lbs
Charger	24V / 50A automatic (110V)
Noise level	≤75 dB(A)
Service weight (with battery)	2,400 lbs

Warranty

The EPC30A is backed by a 3-year limited warranty.

FAQ

Is the EPC30A walk-behind or ride-on?

It is a center-controlled rider — the operator stands on a center platform and rides with the load, which suits long hauls and high pick counts.

What does it lift, and what are the forks?

It is rated to 5,000 lb. The forks are 45.3 inches long with a 26.97-inch outside spread, and raise to 7.88 inches.

Are the battery and charger included?

Yes. A 24-volt, 360 Ah battery and an automatic 24V/50A plug-in charger ship with the unit, along with an on-board battery discharge indicator gauge.

Will it fit my aisles?

The unit is 99.09 inches long overall and 31.81 inches wide, with an 81.89-inch wheelbase and an 89.68-inch turning radius. Right-angle stacking aisle runs about 107 to 109 inches depending on pallet orientation. Measure your tightest aisle and turn against those figures before ordering.

Can it handle ramps and inclines?

It climbs grades up to 3% loaded and 6% unloaded, on polyurethane wheels with steel entry wheels and stability casters suited to smooth, finished floors.

What's the warranty?

The EPC30A carries a 3-year limited warranty.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
