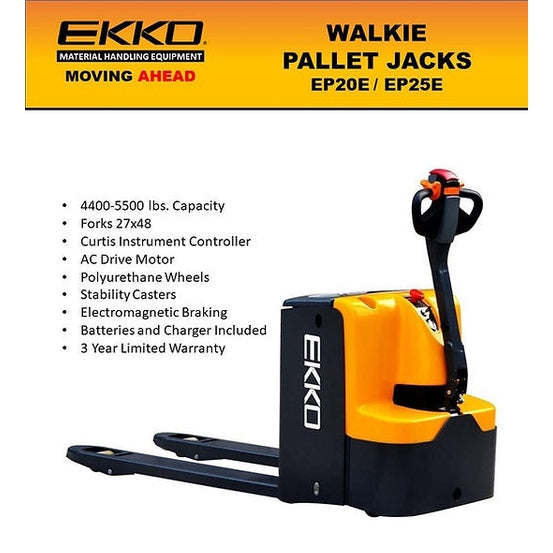

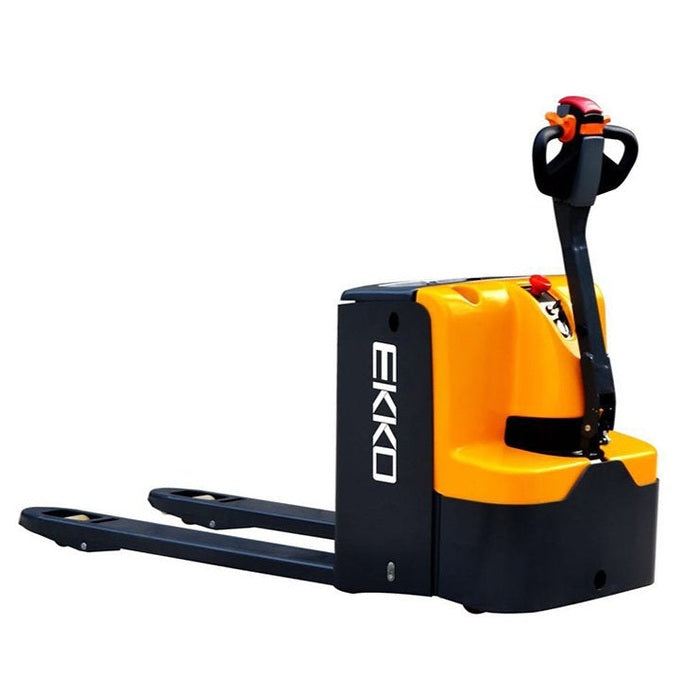

EKKO EP25E Walkie Pallet Jack 5500lbs. Capacity

Name: EKKO EP25E Walkie Pallet Jack 5500lbs. Capacity
Brand: EKKO Lifts
SKU: EP25E
Price: 8158.3 USD
Availability: InStock

SKU EP25E

In Stock

$8,158.30 - $8,158.30

$8,158.30

$8,158.30 - $8,158.30

$8,158.30

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EP25E is an electric walkie pallet jack with full powered lifting and driving, rated to move 5,500 lb across loading docks, stock rooms, manufacturing floors, and warehouse aisles. Walk behind it, steer with the ergonomic tiller, and let the AC drive motor move the load through truck loading, unloading, and everyday pallet transport.

The forks measure 27 in wide by 48 in long for standard pallets, sit at a 3.3 in lowered height for easy fork entry, and raise to 7.9 in for transport. A 24-volt 240 Ah battery and a matching 24V/30A charger are included, so the unit arrives ready to work. The chassis is steel with robotic welding for repeatable joint strength under impact and directional changes.

Features

AC drive motor (1.3 kW) paired with a Curtis controller for constant travel speed regardless of load, with a battery discharge indicator gauge.
Electromagnetic braking for secure stopping power, plus electronic neutral braking for controlled stops.
Polyurethane drive wheel (10.6 x 2.75 in), polyurethane load wheels and stability casters, and steel entry rollers, sized for smooth, flat indoor floors.
Ergonomic tiller handle with throttle, lift and lower, horn, turtle slow-speed mode, and a belly-button reverse safety that stops and reverses the unit to avoid pinning the operator.
Robotic-welded heavy-duty steel chassis and mast for durability under repeated use.

What's Included

EKKO EP25E electric walkie pallet jack
24V / 240 Ah battery
24V / 30A charger

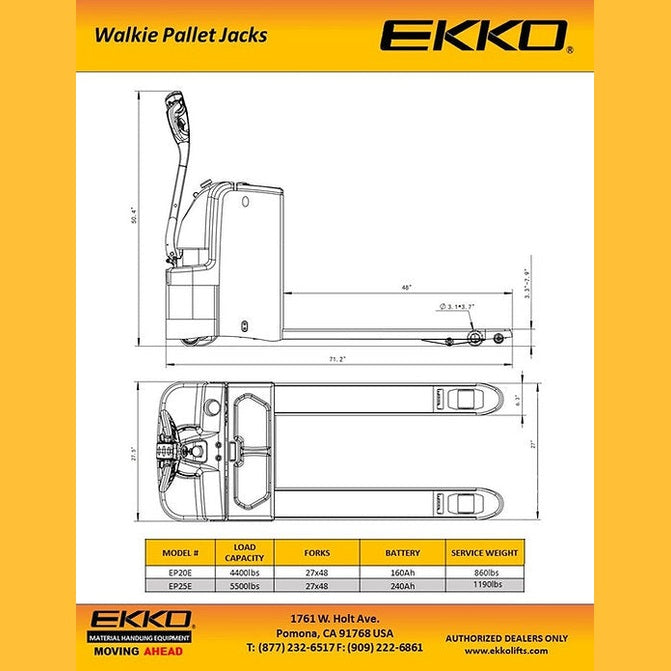

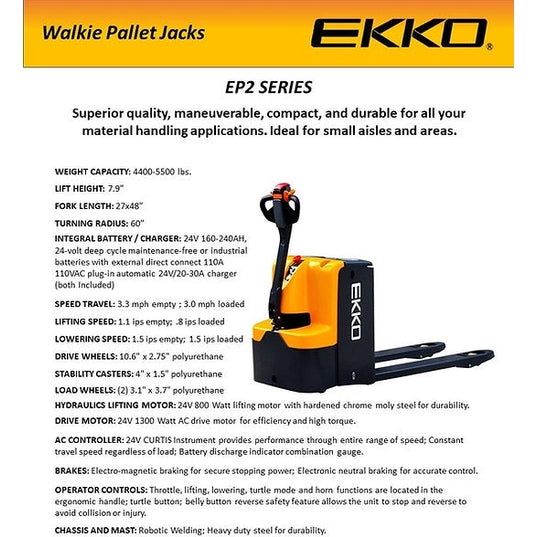

Specifications

EKKO EP25E Walkie Pallet Jack Specifications
Load capacity	5,500 lbs
Load center	24 in
Fork size (width x length)	27 in x 48 in
Individual fork (height x width x length)	2 in x 6 in x 48 in
Outside distance of forks	27 in
Lowered fork height	3.3 in
Lift height	7.9 in
Overall length	71.2 in
Overall width	27.5 in
Wheelbase	53 in
Turning radius	60 in
Travel speed (empty / loaded)	3.3 / 3.0 mph
Lifting speed (laden / unladen)	0.8 / 1.1 in/s
Lowering speed (laden / unladen)	1.5 / 1.5 in/s
Max gradient (laden / unladen)	8% / 15%
Drive motor	1.3 kW AC
Lift motor	0.8 kW
Drive motor type	AC motor speed control
Controller	Curtis
Brake type	Electromagnetic
Drive wheel	10.6 in x 2.75 in polyurethane
Load wheels	3.1 in x 3.7 in polyurethane (x2)
Stability casters	4 in x 1.5 in polyurethane
Entry rollers	Steel
Battery	24V / 240 Ah
Charger	24V / 30A
Noise level at operator	68 dB(A)
Service weight (with battery)	1,100 lbs

Warranty

The EKKO EP25E is backed by a 3-year limited warranty.

FAQ

Are the battery and charger included?

Yes. The unit ships with a 24-volt 240 Ah battery and a matching 24V/30A charger, so no separate power purchase is required to put it to work.

What surfaces is the EP25E built for?

Polyurethane drive and load wheels with steel entry rollers suit smooth, flat indoor surfaces such as warehouse floors, loading docks, and stock rooms.

What grade can it handle?

The EP25E is rated for an 8% gradient laden and 15% unladen.

How tight can it turn?

It has a 60 in turning radius for maneuvering in aisles, dock areas, and tight staging zones.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
