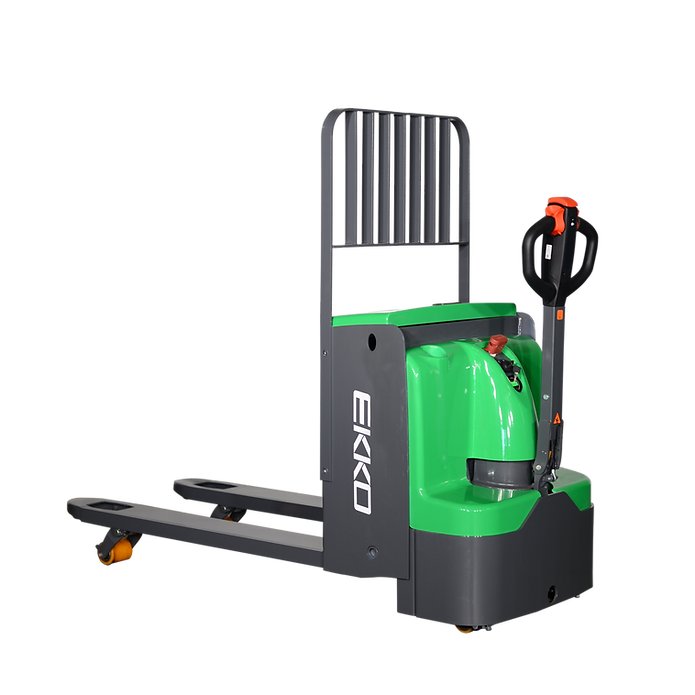

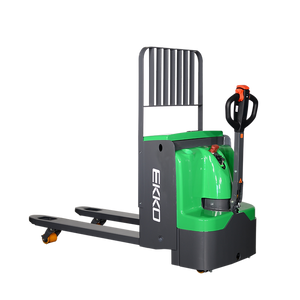

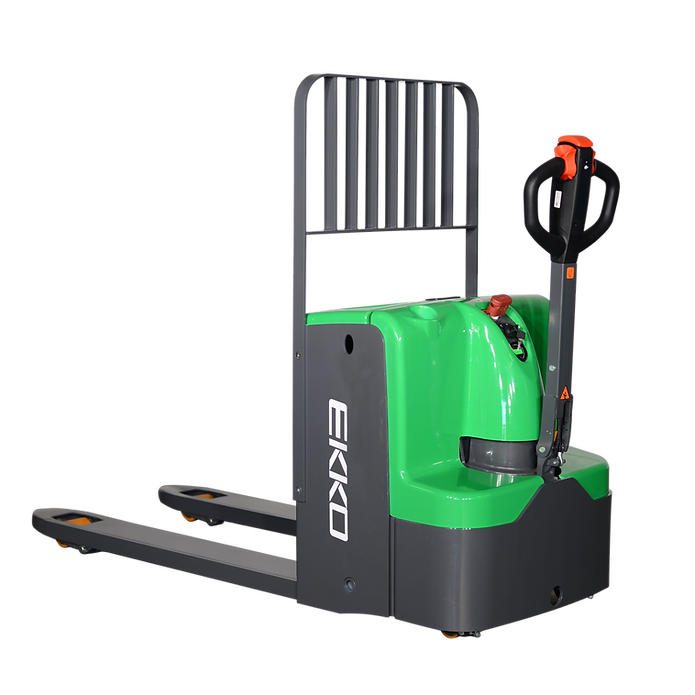

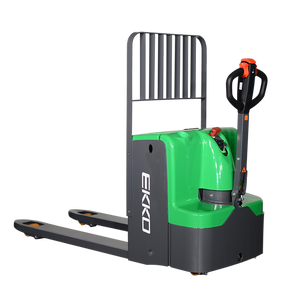

EKKO EP25E-Li Walkie Pallet Jack 5500lbs. Capacity

The EKKO EP25E-Li is an electric walkie pallet jack rated to lift 5,500 lbs at a 24-inch load center. Both lifting and driving are fully powered, so the operator walks behind and steers instead of pumping a hydraulic handle or muscling a loaded pallet. It is built for loading and unloading trucks, working loading docks, and moving pallets through stock rooms, manufacturing floors, and general warehousing.

Power comes from a 24-volt, 150 Ah lithium-ion battery and a matched 24V/50A charger — both included — with a Curtis controller managing the AC drive. An onboard indicator shows remaining charge at the controls, the electromagnetic brake holds the truck automatically, and rated gradeability is 8% with a load and 15% without. The EP25E-Li is part of EKKO Lifts' electric, lithium-powered material handling line.

The EP25E-Li ships via freight; contact Forklift King to arrange scheduling and delivery.

• Curtis controller — manages the AC drive for predictable acceleration and direction changes.
• AC drive motor with speed control — smooth starts and low-speed maneuvering in tight dock and aisle work.
• Electromagnetic brake — engages automatically to hold the truck on grade; rated gradeability of 8% laden and 15% unladen.
• Polyurethane drive wheels with steel entry rollers at the fork tips — quiet travel on finished concrete and an easier climb into and out of pallets.
• Steel construction, robotically welded — consistent weld quality across the frame.
• Ergonomic handle and controls — a butterfly throttle and thumb controls sized for all-shift walk-behind operation.

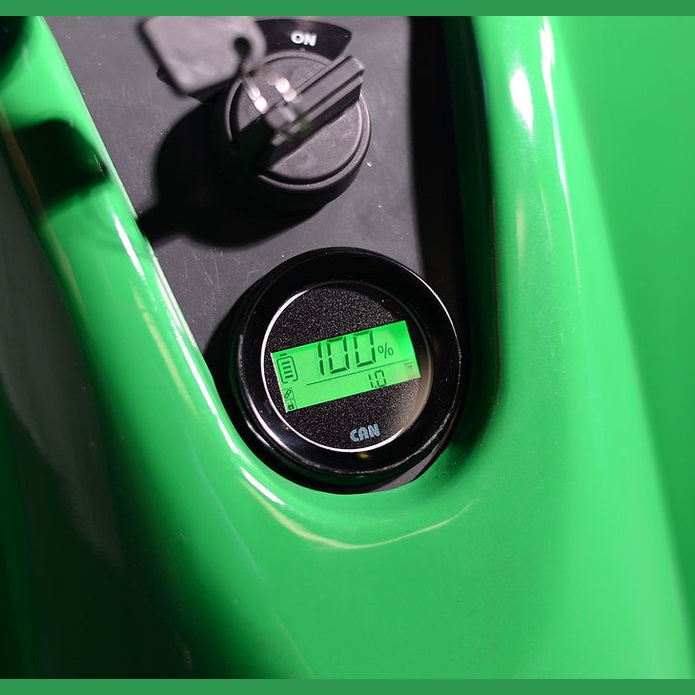

• Onboard charge indicator — shows remaining battery capacity without leaving the controls.

Controls and ergonomics

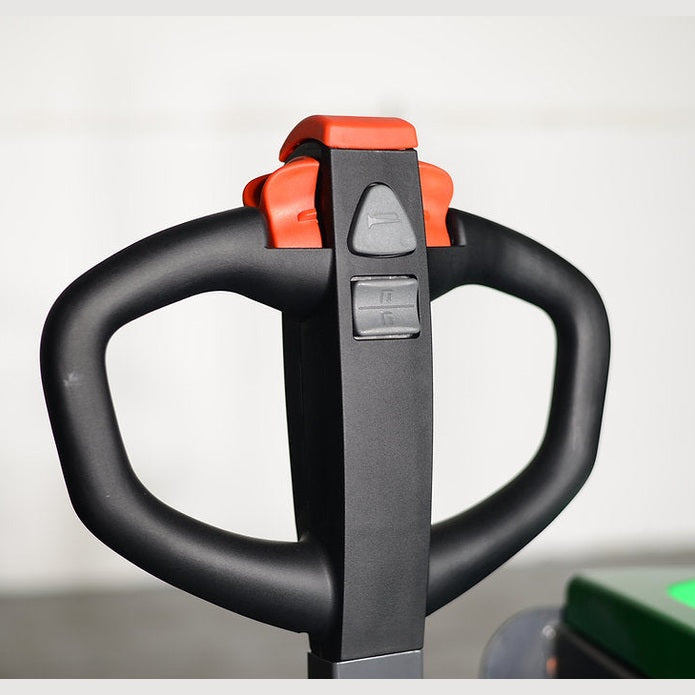

The loop tiller head keeps the butterfly throttle and thumb controls within reach for walk-behind operation, and the onboard indicator reads out battery charge right at the handle.

• EKKO EP25E-Li electric walkie pallet jack
• 24-volt, 150 Ah lithium-ion battery (installed)
• Matched 24V/50A charger

Are the battery and charger included?

Yes. The EP25E-Li ships with a 24-volt, 150 Ah lithium-ion battery installed and a matched 24V/50A charger.

What pallet size do the forks fit?

The forks measure 27 in across the outside and 48 in long, sized for standard 48-inch-deep pallets.

Can it handle ramps and dock inclines?

Rated gradeability is 8% with a load and 15% without a load.

How much does the truck weigh?

Service weight with the battery installed is 1,010 lbs.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
