EKKO EP20JLi Full Electric Pallet Jack 4400 lb Capacity W/ PinPad

Name: EKKO EP20JLi Full Electric Pallet Jack 4400 lb Capacity W/ PinPad
Brand: EKKO Lifts
SKU: EP20JLi
Price: 3228.3 USD
Availability: InStock

SKU EP20JLi

In Stock

$3,228.30 - $3,228.30

$3,228.30

$3,228.30 - $3,228.30

$3,228.30

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

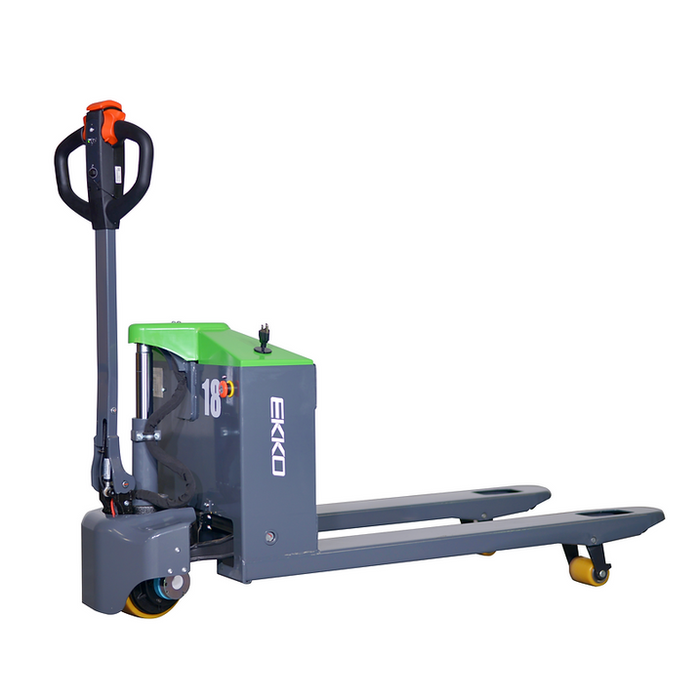

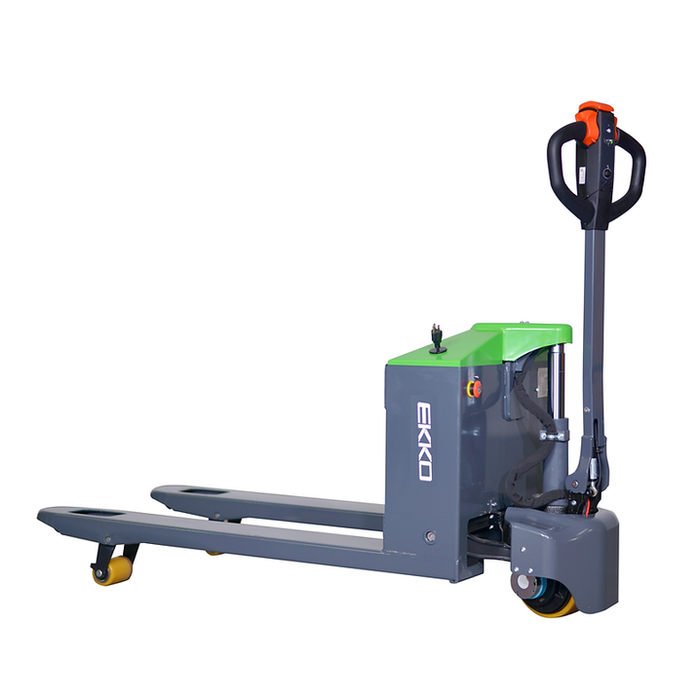

The EKKO EP20JLi is a full electric walkie pallet jack rated for 4,400 lb at a 23.6-inch load center, powered by an onboard 48V Lithium Iron Phosphate (LiFePO4) battery and driven by a 1 kW DC traction motor. Both lift and drive are powered — the operator steers via the ergonomic tiller handle and lets the motor do the moving. The factory-included charger and battery make the unit ready to work out of the crate.

Engineered for loading docks, stock rooms, manufacturing floors, and general warehousing, the EP20JLi pairs polyurethane drive and load wheels with a steel chassis and robotic-welded joints. The tiller handle integrates lift, drive, and direction controls into a single grip, with an electromagnetic brake for hold and an emergency stop within thumb reach. EKKO Lifts backs the unit with a 3-year limited warranty — the EKKO Advantage Warranty that is standard across the brand’s Class I–V lineup.

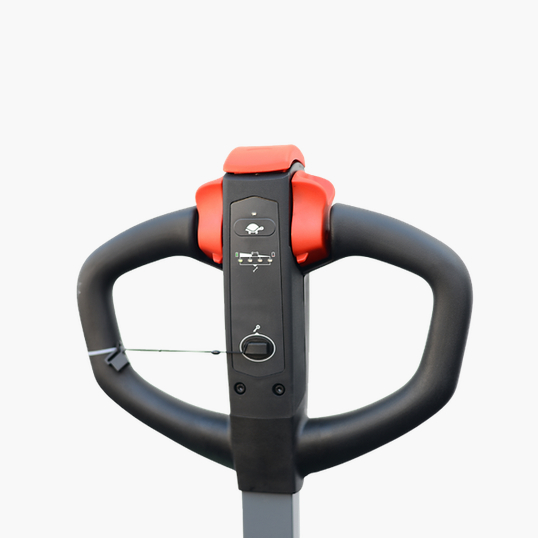

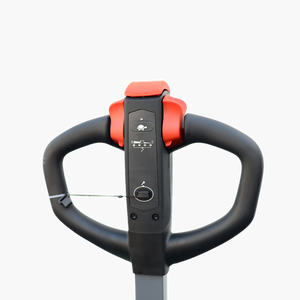

EKKO EP20JLi operator tiller handle head with throttle thumbwheels, red emergency stop, and low-speed and horn control icons — The integrated tiller-handle controls put throttle, lift, lower, emergency stop, and low-speed mode within thumb reach.

The EP20JLi ships new with a built-in PinPad operator access feature — supplier-listed as a new addition to the EP20J family. Pinwheel-capable steering allows tight zero-radius turns around the drive-wheel pivot.

Features

4,400 lb load capacity at a 23.6-inch load center
48V LiFePO4 lithium battery included — 48V / 20Ah rated, ~26.4 lb battery weight
Full electric drive and lift — 1 kW DC drive motor, 0.8 kW lift motor
Pinwheel capability for tight zero-radius turns around the drive wheel
Polyurethane (PU) drive and load wheels for indoor flat-surface work
Ergonomic tiller handle with integrated lift, drive, direction, and emergency stop controls
Electromagnetic brake for holding and stopping
New PinPad operator access feature
Steel chassis with robotic-welded joints
Charger included from the factory
Quiet operation — rated ≤ 70 dB(A) per supplier

Compatibility

The EP20JLi is built for indoor, flat-surface material handling. Supplier-stated environments include:

Loading and unloading trucks at the dock
Loading docks and staging areas
Stock rooms and order-picking floors
Manufacturing floors and assembly lines
General warehousing operations

Aisle clearance, supplier-stated:

69.7-inch aisle width required for 39.37" × 47.24" pallets handled crossways
71.6-inch aisle width required for 31.5" × 47.24" pallets handled lengthways

What’s Included

EKKO EP20JLi electric walkie pallet jack
48V / 20Ah LiFePO4 lithium battery (1 unit, installed)
Battery charger (included from the factory)
Ergonomic tiller handle with integrated lift, drive, and PinPad operator access

Specifications

EKKO EP20JLi Electric Walkie Pallet Jack Specifications
Model	EP20JLi
Drive type	Electric
Manner of operation	Walkie
Load capacity	4,400 lb
Load center	23.6"
Axle center to fork face	37"
Wheelbase	47.6"
Tire material	Polyurethane (PU)
Driving wheel size (diameter × width)	8.26" × 2.75"
Bearing (load) wheel size (diameter × width)	3.15" × 2.36"
Wheel quantity (front / rear, x = drive)	1x / 2
Tread	21.06"
Lifting height (max)	7.8"
Lowered fork height	2.95"
Handle height (operating range)	30.5" – 43.9"
Overall length	61.81"
Body length	16.53"
Overall width	27"
Fork dimensions (thickness / single fork width / length)	1.97" / 5.9" / 45"
Overall fork width	27"
Minimum ground clearance	1.38"
Aisle width — 39.37" × 47.24" pallets, crossways	69.7"
Aisle width — 31.5" × 47.24" pallets, lengthways	71.6"
Turning radius	53.7"
Driving speed (loaded / unloaded)	4.2 km/h (~2.6 mph) / 4.5 km/h (~2.8 mph)
Maximum gradeability (loaded / unloaded)	5% / 10%
Brake type	Electromagnetic
Drive motor	1 kW
Lift motor	0.8 kW
Battery	48V / 20Ah LiFePO4 lithium
Battery weight (±5%)	26.4 lb
Drive control	DC
Noise level	≤ 70 dB(A)
Service weight (with battery)	326 lb

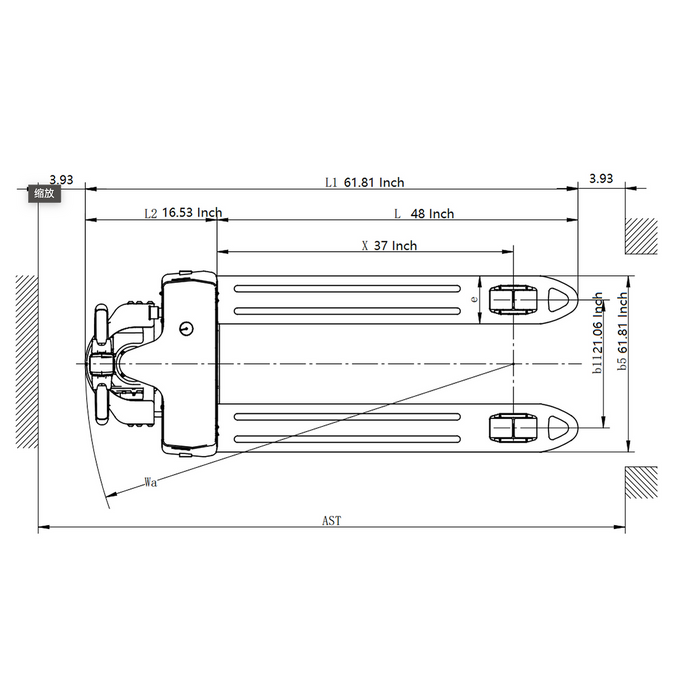

Top-view dimensional drawing of the EKKO EP20JLi pallet jack with annotated overall length, body length, axle-to-fork distance, tread, and turning radius callouts — Top-view footprint with overall and body length, fork length, axle-to-fork distance, tread, and turning radius callouts.

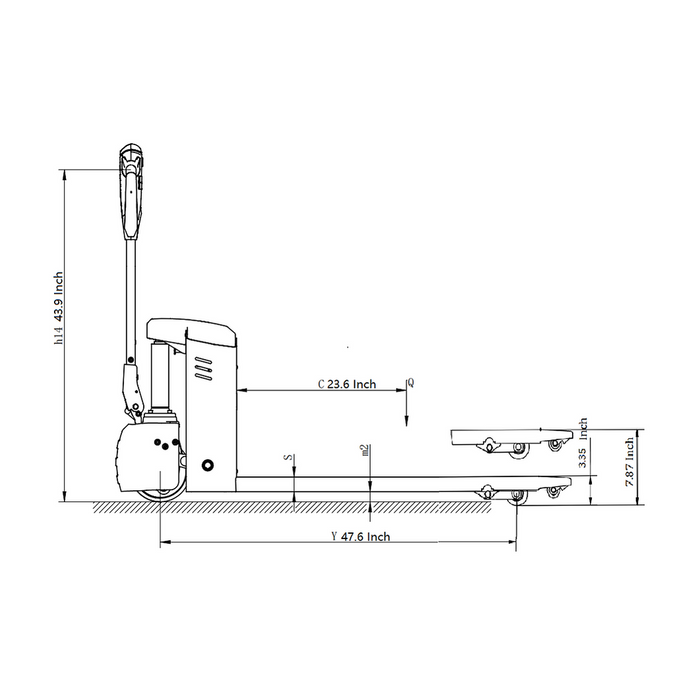

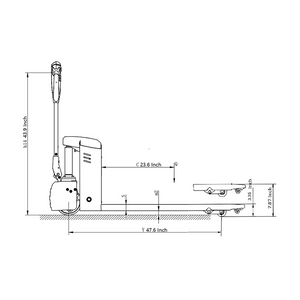

Side-profile elevation with handle height range, load center, wheelbase, lifting height, and ground clearance.

Warranty

The EP20JLi ships with a 3-year limited warranty — the EKKO Advantage Warranty that is standard across EKKO’s Class I–V product lines. Coverage details and claim handling are confirmed at order placement.

FAQ

Is the battery and charger included?

Yes. The EP20JLi ships with one 48V / 20Ah LiFePO4 lithium battery installed and a charger included from the factory. No separate purchase is required.

What is the maximum lift height?

7.8 inches at the fork top, with a 2.95-inch lowered fork height — sized for standard 4-way and 2-way pallet entry.

What aisle width does the EP20JLi need?

Supplier-stated minimums are 69.7 inches for 39.37" × 47.24" pallets handled crossways and 71.6 inches for 31.5" × 47.24" pallets handled lengthways. Turning radius is 53.7 inches. Confirm against your actual aisle dimensions before placing the order.

What is LiFePO4 and why does it matter?

LiFePO4 (lithium iron phosphate) is a lithium chemistry that trades a small amount of energy density for substantially better thermal stability, cycle life, and shop-floor safety compared with lead-acid or other lithium chemistries. No watering, no off-gassing, opportunity-charging friendly.

How fast does it move?

Supplier-stated driving speed is 4.2 km/h (~2.6 mph) loaded and 4.5 km/h (~2.8 mph) unloaded. The EP20JLi is engineered for flat indoor work, not ramps or uneven outdoor surfaces.

What does the PinPad do?

Per supplier, the EP20JLi ships new with a PinPad operator access feature. Specific PinPad configuration details (PIN length, multi-user support, lockout behavior) are confirmed with EKKO at order placement.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
