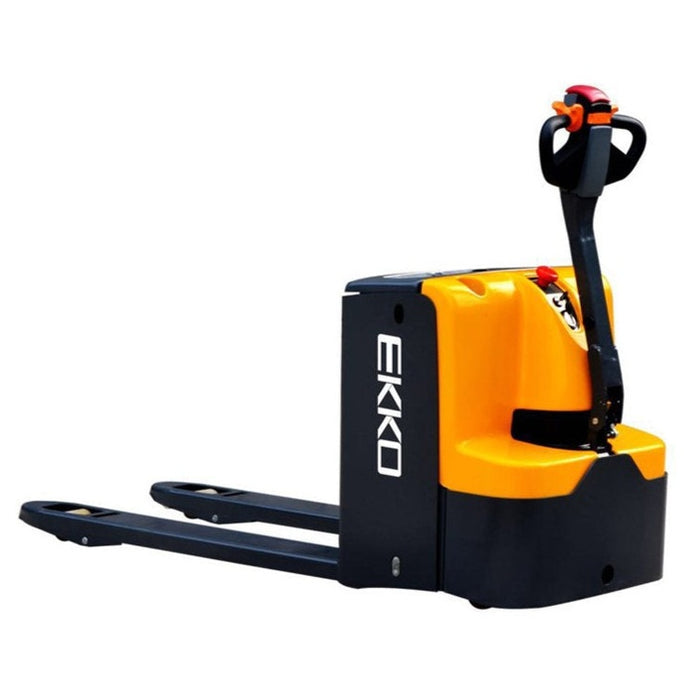

EKKO EP20E Walkie Pallet Jack 4400lbs. Capacity

Name: EKKO EP20E Walkie Pallet Jack 4400lbs. Capacity
Brand: EKKO Lifts
SKU: EP20E
Price: 7138.3 USD
Availability: InStock

SKU EP20E

In Stock

$7,138.30 - $7,138.30

$7,138.30

$7,138.30 - $7,138.30

$7,138.30

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EP20E is a full-powered electric walkie pallet jack that drives and lifts under its own power, rated to move 4,400 lb loads through truck beds, loading docks, stock rooms, manufacturing floors, and warehousing. An AC drive motor paired with a Curtis controller delivers constant travel speed regardless of load, so the operator walks behind, steers with the ergonomic tiller, and gets the same response whether the forks are empty or full.

The EP20E rolls on polyurethane wheels with steel entry wheels for getting on and off pallets, and a steel, robotically welded frame stands up to repeated impacts and direction changes. An electromagnetic brake holds the truck on stops and inclines, and a belly-button reverse safety feature lets the operator stop and reverse to avoid a collision.

A 24-volt, 160 Ah deep-cycle battery and a built-in charger both ship with the unit, and the EP20E is backed by a 3-year limited warranty. A load backrest is available as an option.

Features

Full-powered operation — powered AC lift and drive, with no hand-pumping
AC drive motor — efficient, low-maintenance, with constant travel speed under load
Curtis controller — with battery discharge indicator
24V / 160Ah deep-cycle battery — included
Built-in charger — included, no separate charging station required
Polyurethane wheels with steel entry wheels
Belly-button reverse safety and creep-speed (turtle) mode
Electromagnetic brake
Ergonomic handle and controls
Steel construction with robotic welding
Optional load backrest

What's Included

EKKO EP20E walkie pallet jack
24V / 160Ah deep-cycle battery
Built-in charger

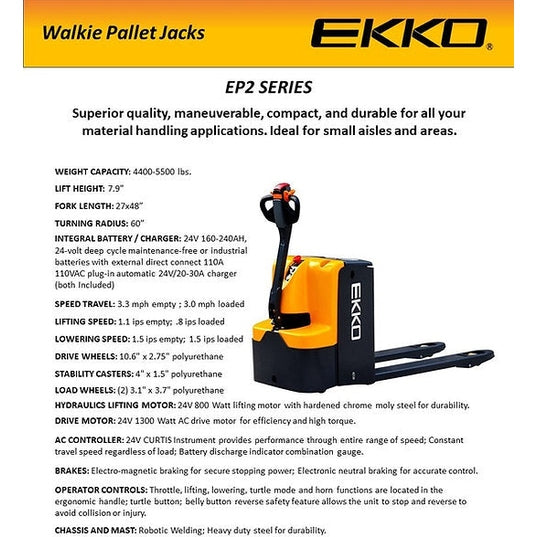

Specifications

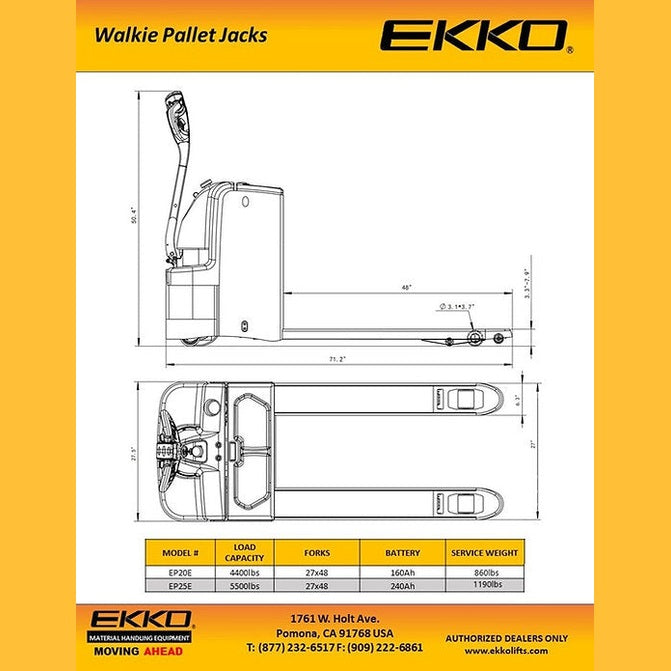

EKKO EP20E Walkie Pallet Jack Specifications
Model	EP20E
Drive type	Electric (AC)
Lift type	Electric
Load capacity	4,400 lb
Load center	24 in
Lift height	7.9 in
Lowered fork height	3.3 in
Fork length	48 in
Individual fork width	6 in
Fork thickness	2 in
Fork outside width	27 in
Overall length	71.2 in
Overall width	28 in
Overall height	50.4 in
Wheelbase	53 in
Turning radius	60 in
Tires	Polyurethane wheels; steel entry wheels
Drive wheel (dia. x width)	10.6 x 2.75 in
Travel speed (laden / unladen)	3.0 / 3.3 mph
Lift speed (laden / unladen)	0.8 / 1.1 in/s
Lowering speed (laden / unladen)	1.5 / 1.5 in/s
Maximum gradeability (laden / unladen)	8% / 15%
Brake type	Electromagnetic
Drive motor	1.3 kW (1.7 hp)
Lift motor	0.8 kW (1.1 hp)
Controller	Curtis
Battery	24V / 160Ah deep-cycle
Charger	Built-in, 24V / 15A
Noise level (at operator position)	68 dB(A)
Service weight (with battery)	860 lb

Warranty

The EP20E is covered by a 3-year limited warranty.

FAQ

Does the EP20E include a battery and charger?

Yes. Each unit ships with a 24V / 160Ah deep-cycle battery and a built-in charger, so no separate charging station is required.

How much space does it need to operate?

The turning radius is 60 in, overall width is 28 in, and overall length is 71.2 in.

Can it handle ramps and inclines?

Maximum gradeability is 8% laden and 15% unladen, and the electromagnetic brake holds the truck on stops and inclines.

What warranty does it carry?

A 3-year limited warranty.

Documents

Manuals and technical documents are available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
