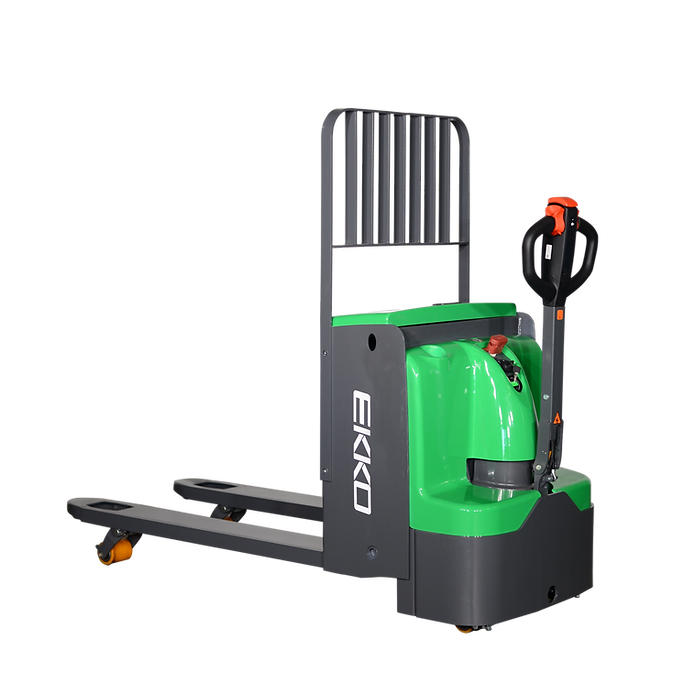

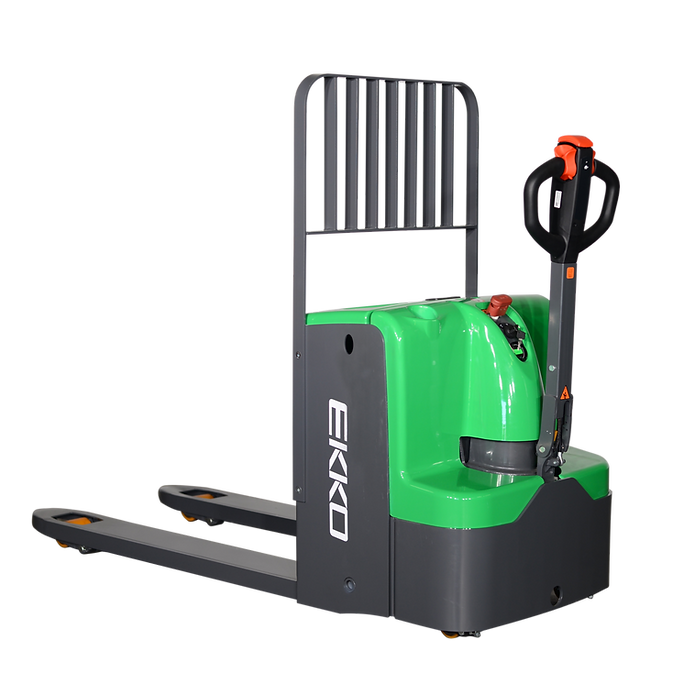

EKKO EP20E-Li Walkie Pallet Jack 4400lbs. Capacity

EKKO EP20E-Li Walkie Pallet Jack 4400lbs. Capacity

SKU EP20E-Li

In Stock
$8,158.30 - $8,158.30
$8,158.30
$8,158.30 - $8,158.30
$8,158.30
Call/Text Us: 307-441-9566 Call Us
Live Chat With an Expert Live Chat
WINTER SALE: 5% Applied At Checkout
Winter is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires soon.

Description

-

The EKKO EP20E-Li is an electric walkie pallet jack rated to 4,400 lb at a 24-inch load center, with powered lift and powered drive for moving palletized loads across loading docks, stock rooms, manufacturing floors, and warehouse aisles. The operator walks behind the unit and steers from an ergonomic tiller, so there is no climbing on and off between picks.

A 24-volt, 100 Ah lithium battery and a built-in 24V/30A charger are included, so the truck charges on board without a separate charging station. An AC drive motor managed by a Curtis controller handles travel and lifting, with electromagnetic braking that holds the unit when the throttle returns to neutral.

The frame is robotic-welded steel. At 28 inches wide, with a 60-inch turning radius and a 71.2-inch overall length, the EP20E-Li works in tight dock and aisle space. It runs on polyurethane wheels with steel entry wheels and climbs grades up to 8% laden. The EP20E-Li joins EKKO's range of electric material handling equipment.

Features

-
  • Electric lift and drive — AC drive motor with Curtis controller speed control for smooth starts and variable travel.
  • 24V lithium battery, included — 100 Ah lithium pack with an on-board 24V/30A charger, so no external charger or battery-swap station is needed.
  • Electromagnetic braking — automatic braking when the throttle returns to neutral.
  • Ergonomic tiller handle — twin butterfly throttle and thumb-operated raise/lower controls reachable from either hand.
  • Polyurethane wheels and steel entry wheels — sized for smooth, finished warehouse floors.
  • Robotic-welded steel frame — for repeatable weld quality across the chassis.

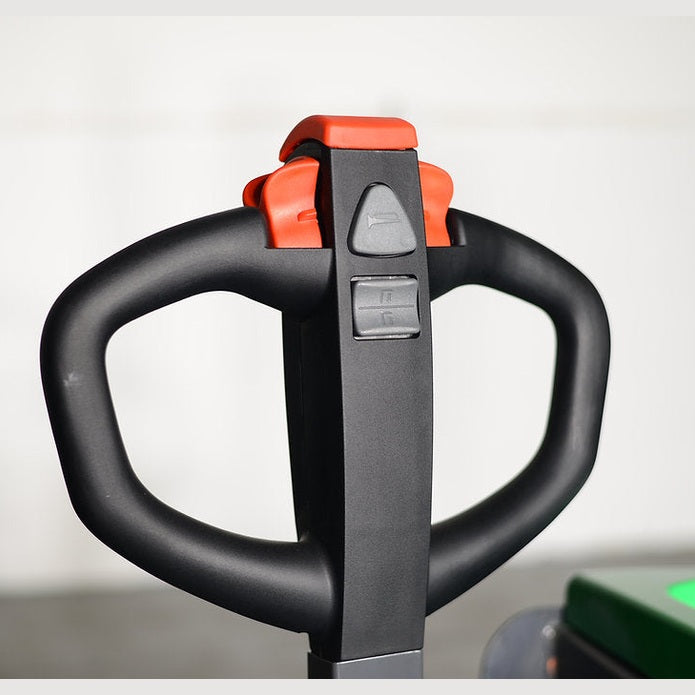

Ergonomic tiller handle with butterfly throttle and raise/lower thumb buttons
Ergonomic tiller head with butterfly throttle and thumb lift controls.

What's Included

-
  • EKKO EP20E-Li electric walkie pallet jack
  • 24V / 100 Ah lithium battery
  • Built-in 24V / 30A charger

An optional load backrest is available; it is not included as standard.

Specifications

-
EKKO EP20E-Li Walkie Pallet Jack Specifications
Model EP20E-Li
Load capacity 4,400 lbs
Load center 24 in
Lift Electric
Drive Electric
Drive motor type AC motor speed control
Lowered fork height 3.3 in
Raised fork height 7.9 in
Fork dimensions (thickness / width / length) 2 / 6 / 48 in
Outside fork spread 27 in
Overall length 71.2 in
Overall width 28 in
Wheelbase 53 in
Turning radius 60 in
Lifting speed (laden / unladen) 0.8 / 1.1 in/s
Lowering speed (laden / unladen) 1.5 / 1.5 in/s
Max gradient (laden / unladen) 8% / 15%
Brake type Electromagnetic
Drive motor power 1.3 kW
Lift motor power 0.8 kW
Battery 24V / 100 Ah lithium
Charger 24V / 30A (built-in)
Noise level at operator 68 dB(A)
Service weight (with battery) 755 lbs

FAQ

-

What can the EP20E-Li lift, and at what load center?

It is rated to 4,400 lb at a 24-inch load center.

Are the battery and charger included?

Yes. A 24-volt, 100 Ah lithium battery and a built-in 24V/30A charger ship with the unit, so it charges on board without a separate charging station.

How high do the forks raise and lower?

The forks lower to 3.3 inches and raise to 7.9 inches.

Will it fit my aisles and dock space?

The unit is 28 inches wide and 71.2 inches long, with a 53-inch wheelbase and a 60-inch turning radius. Measure your tightest aisle and turn against those figures before ordering.

Can it handle ramps and inclines?

It climbs grades up to 8% loaded and 15% unloaded, on polyurethane wheels with steel entry wheels suited to smooth, finished floors.

Documents

-

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
