EKKO EP15JLi Full Electric Pallet Jack 3300 lb Capacity W/ PinPad

The EKKO EP15JLi is a full-electric walkie pallet jack built around a 24V lithium iron phosphate (LiFePO4) battery and a PIN-pad operator lockout. Both drive and lift are powered, so the operator walks alongside, controls the loop handle, and lets the unit do the work — useful for loading and unloading trucks, dock work, stock rooms, manufacturing floors, and general warehousing where a manual hand-pump pallet jack costs the operator their day.

Capacity is 3,300 lb at a 23.6 in load center, with a raised fork height of 7.87 in and a lowered fork height of 2.95 in — low enough to slide into standard 4-way GMA pallets without ramping. Forks are 27 in wide by 45 in long with a 21.06 in tread between forks. Pinwheel capability means the unit can turn within its own footprint — relevant when the buyer's aisle is tighter than the 53.7 in turning radius would suggest at first read.

From EKKO Lifts, the Class I–V material handling manufacturer that builds out of a 50,000+ sq ft facility in Pomona, California. The -Li designation in the model number is EKKO's marker that this unit ships with lithium iron phosphate chemistry — fast-charge tolerant, no acid maintenance, no off-gassing, and a longer cycle life than the lead-acid alternative.

• Full electric walkie operation — powered drive (0.75 kW motor) and powered lift (0.8 kW motor); the operator walks alongside and controls direction and lift from the loop handle.
• 24V LiFePO4 lithium battery included (rated 24V / 30Ah, 21.1 lb) — opportunity-chargeable between shifts, no off-gassing, no acid maintenance, and a long cycle life vs. lead-acid.
• Charger included in the box — no separate purchase, no aftermarket pairing.
• PIN-pad operator lockout — operators enter a PIN to activate the unit. Reduces unauthorized use in shared-shift environments.
• Pinwheel capability — the unit can turn within its own footprint, useful at dock corners and at the end of tight aisles.
• Polyurethane wheels on the drive and load rollers — quiet, non-marking, suited to indoor smooth-floor work.
• Electromagnetic brake — engages automatically when the throttle is released.

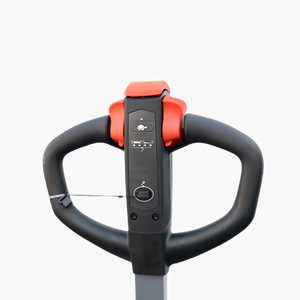

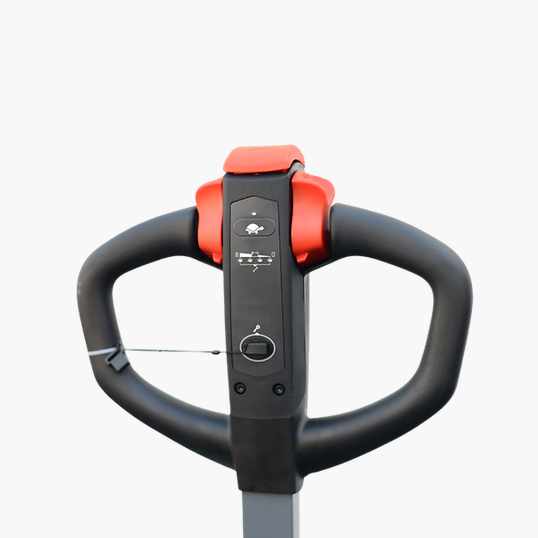

• Ergonomic loop handle with thumb-throttle direction control, horn, and turtle (slow-mode) button.
• Steel construction with robotic welding on the frame and fork carriage.
• Service weight 308 lb — light enough for upper-floor warehouse work where a heavier electric pallet jack would exceed floor ratings.

Sized for loading docks, stock rooms, manufacturing floors, and general indoor warehousing on smooth concrete or sealed floors. Polyurethane wheels are non-marking and quiet for indoor work; they are not the right pick for rough outdoor terrain.

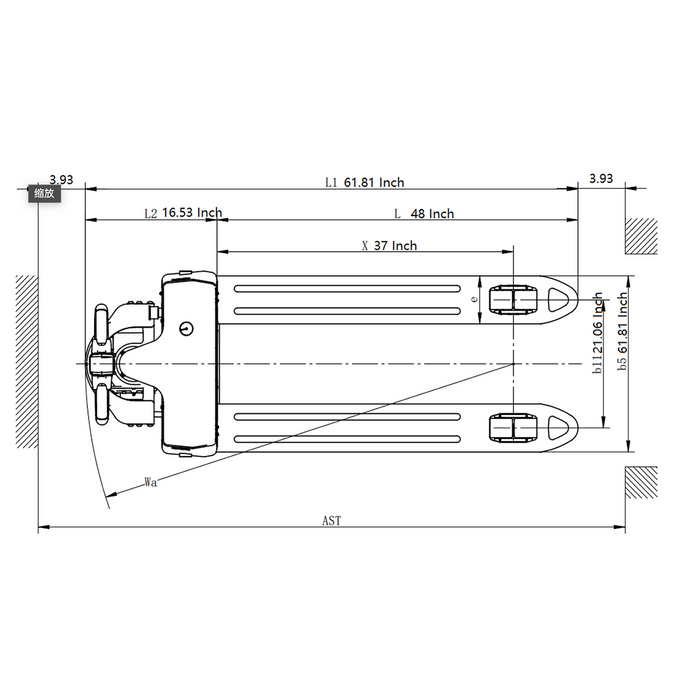

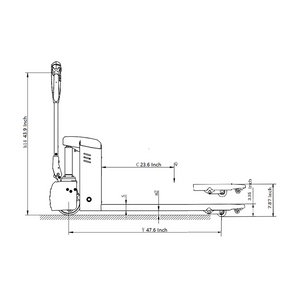

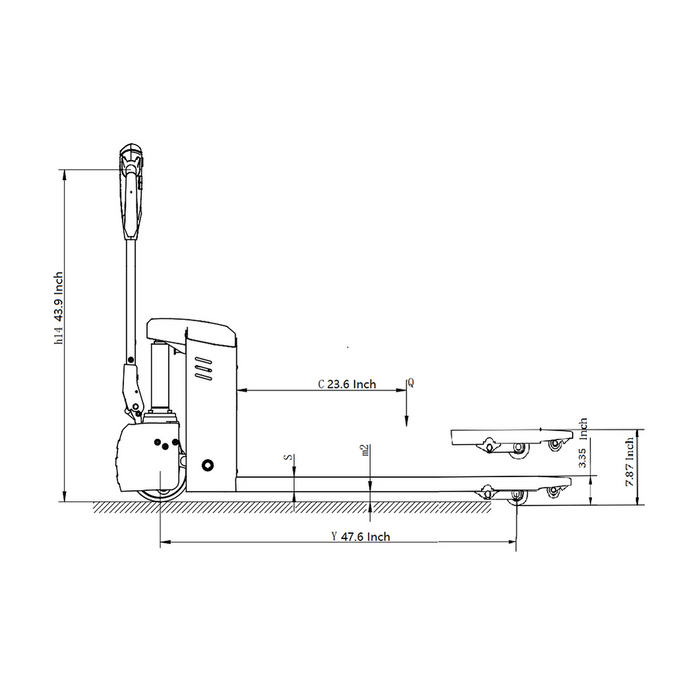

Overall length is 61.81 in, body length is 16.53 in, overall width is 27 in. Wheelbase is 47.6 in. Turning radius is 53.7 in, and aisle-width requirements are 69.7 in for 39.37 × 47.24 in pallets handled crossways and 71.6 in for 31.5 × 47.24 in pallets handled lengthways. Minimum ground clearance is 1.38 in. Maximum gradeability is 5% loaded and 10% unloaded — this unit is not specified for ramp work beyond those grades.

• EKKO EP15JLi full electric walkie pallet jack with PIN pad
• 24V / 30Ah lithium iron phosphate (LiFePO4) battery (installed)
• Charger

3-year limited warranty (as stated by EKKO for this product). Confirm coverage scope and claim process with Forklift King at order time.

What's the rated capacity and load center?

3,300 lb at a 23.6 in load center.

How high does it lift?

The forks raise to 7.87 in (approximately 200 mm) and lower to 2.95 in.

Is the battery included? What chemistry?

Yes. The unit ships with a 24V / 30Ah lithium iron phosphate (LiFePO4) battery installed. LiFePO4 chemistry tolerates opportunity charging, has no off-gassing, no acid maintenance, and a longer cycle life than equivalent lead-acid.

Is the charger included?

Yes, the charger ships in the box.

What is the PIN-pad function?

The unit requires a PIN entry on the operator console before activation. It is an access-control feature, useful in shared-shift environments where unauthorized use is a concern.

Can it turn in place (pinwheel)?

Yes. Pinwheel capability lets the drive wheel rotate the unit within its own footprint, which is helpful at dock corners and the end of tight aisles. The published turning radius (the swept radius during normal cornering) is 53.7 in.

How wide does my aisle need to be?

69.7 in for 39.37 × 47.24 in pallets handled crossways, and 71.6 in for 31.5 × 47.24 in pallets handled lengthways. Measure your tightest aisle, doorway, and dock-corner clearance against these.

Is it rated for ramps?

Maximum gradeability is 5% loaded and 10% unloaded. Beyond those grades, the unit is not specified.

What's the warranty?

3-year limited warranty as stated by EKKO for this product. Confirm coverage scope at order time.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
