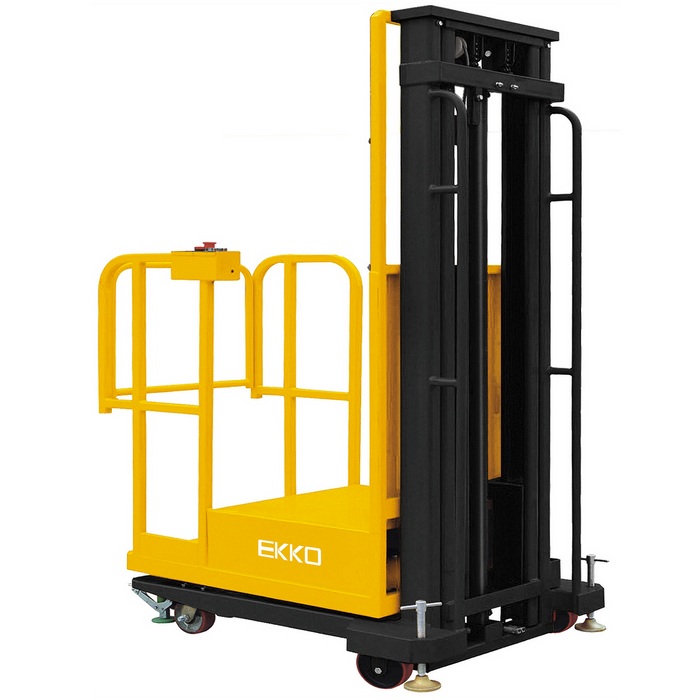

EKKO EOPS20-177 Semi-Electric Order Picker, 177" Lift Height

Name: EKKO EOPS20-177 Semi-Electric Order Picker, 177" Lift Height
Brand: EKKO Lifts
SKU: EOPS20-177
Price: 5699.0 USD
Availability: InStock

SKU EOPS20-177

In Stock

$5,699.00 - $5,699.00

$5,699.00

$5,699.00 - $5,699.00

$5,699.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EOPS20-177 is a semi-electric, stand-on order picker that raises an operator and picked goods to a 177-inch (14.75 ft) lift height for retrieving orders from racking, storage facilities, manufacturing floors, and warehouses. Rated for 440 lb, it is built from steel with robotic welding for repeatable, durable construction.

Safety is built into the platform: the picker is over-load protected, fitted with safety brackets and a stand-on platform with rails, and stopped by dual brakes and an emergency stop/down button within the operator's reach.

The mast is raised by a 1.6 kW electric lift motor, powered by an included 12V/120Ah lead-acid battery with an internal charger — no separate charging unit to source. Polyurethane wheels suit smooth indoor floors.

Features

177-inch lift height (14.75 ft) for high-bay order picking.
440 lb rated capacity.
Over-load protection guards against lifting beyond the rated load.
Safety brackets and stand-on platform with rails.
Dual brakes and an emergency stop/down button.
1.6 kW electric lift motor.
12V/120Ah lead-acid battery included, with an internal charger.
Polyurethane wheels for smooth indoor floors.
Steel construction with robotic welding.

What's Included

EKKO EOPS20-177 semi-electric order picker
12V/120Ah lead-acid battery
Internal charger (built in)

Specifications

EKKO EOPS20-177 Semi-Electric Order Picker Specifications
Model	EOPS20-177
Power unit	Semi-electric
Operation	Stand-on
Rated capacity	440 lb
Lift height	177"
Overall length	51.18"
Overall width	33.46"
Overall height	78.54"
Wheelbase	53.46"
Track width	37.8"
Drive wheel size	9.84" dia. × 5"
Load wheel size	5.9" dia. × 3.23"
Wheels	Polyurethane
Travel speed (laden / unladen)	8 km/h (~5 mph)
Lift motor	1.6 kW
Battery	12V / 120Ah lead-acid (included)
Charger	Internal
Service weight	925 lb
Construction	Steel, robotic-welded

Warranty

The EOPS20-177 ships with a 3-year limited warranty from EKKO Lifts.

FAQ

What is the capacity and lift height?

440 lb to a maximum lift height of 177 inches (14.75 ft).

Are the battery and charger included?

Yes. A 12V/120Ah lead-acid battery is included, and the charger is built into the unit.

What safety features does it have?

Over-load protection, safety brackets, a stand-on platform with rails, dual brakes, and an emergency stop/down button.

Is it stand-on or walk-behind?

Stand-on — the operator rides the platform while picking.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
