EKKO EOPL150-165LI Lithium Order Picker 1,500lbs

Name: EKKO EOPL150-165LI Lithium Order Picker 1,500lbs
Brand: EKKO Lifts
SKU: EOPL150-165LI
Price: 33999.0 USD
Availability: InStock

SKU EOPL150-165LI

In Stock

$33,999.00 - $33,999.00

$33,999.00

$33,999.00 - $33,999.00

$33,999.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EOPL150-165LI is a lithium-powered, stand-on order picker built for one job: pulling orders from racking at height. The operator rides up to 165 inches (13.75 ft) to pick cases and parts, on a platform rated to carry 1,500 lb. A 24V/200Ah lithium battery powers it, so there's no battery swapping, watering, or off-gassing between shifts.

Adjustable forks with an auxiliary fork let the operator stage and retrieve loads without leaving the platform. Fork outside width is 26 inches, and each fork measures 1.2 by 4 by 35 inches.

Electronic power steering (EPS) and a Curtis controller keep maneuvering precise, and AC drive control delivers four selectable travel speeds up to 3.10 mph for fine positioning in front of the rack. An electromagnetic brake holds the picker in place, and polyurethane tires suit smooth indoor concrete.

In a 1,000 × 1,200 mm pallet layout it works a 117-inch aisle (121 inches with an 800 × 1,200 mm pallet), turning within a 57-inch radius. Overall length is 98 inches, and the overhead guard stands 76 inches tall.

EKKO builds the EOPL150-165LI from steel with durable components for order picking in racking, storage facilities, manufacturing floors, and warehouses.

Features

Stand-on platform elevates the operator to 165" (13.75 ft)
1,500 lb load capacity
Adjustable forks with an auxiliary fork
Electronic power steering (EPS)
Curtis controller
AC drive control with four selectable travel speeds (up to 3.10 mph)
Electromagnetic brake
24V/200Ah lithium battery
Polyurethane tires
Steel construction with durable components

Specifications

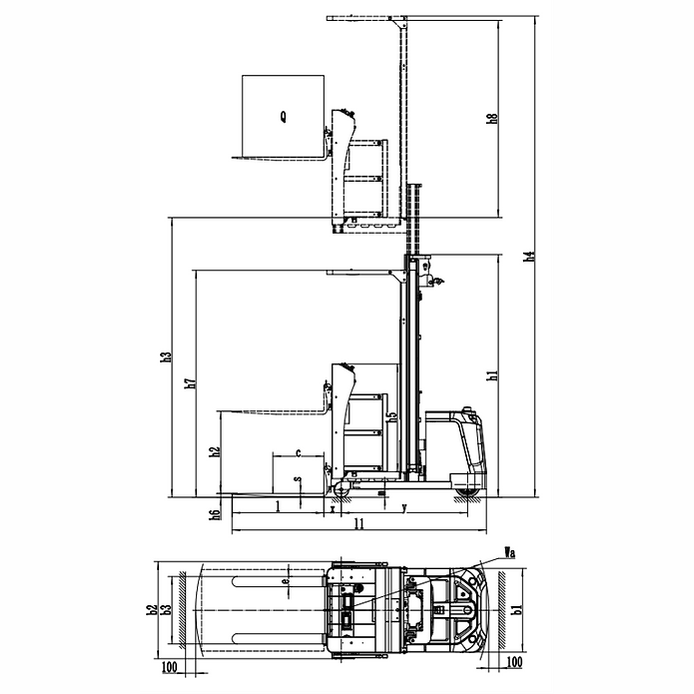

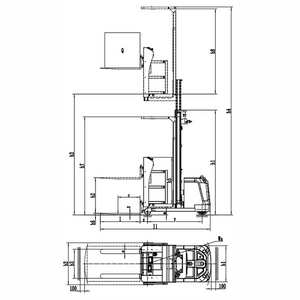

EKKO EOPL150-165LI Specifications
Load capacity	1,500 lb
Maximum lift height	165" (13.75 ft)
Load center	16"
Operation	Stand-on
Adjustable forks	Yes, with auxiliary fork
Fork size (thickness / width / length)	1.2" / 4" / 35"
Fork outside width	26"
Fork lowered height	1.5"
Overall length	98"
Chassis width	32" / 37"
Overhead guard height	76"
Handle height	41"
Front overhang	6.7"
Ground clearance (wheelbase center)	3"
Turning radius	57"
Aisle width (1,000 × 1,200 mm pallet)	117"
Aisle width (800 × 1,200 mm pallet)	121"
Travel speed	Up to 3.10 mph (4 settings: 3.10 / 1.55 / 0.75 / 0.37 mph)
Drive motor	1.5 kW
Lift motor	3 kW
Drive control	AC
Steering	Electronic power steering (EPS)
Brake	Electromagnetic
Battery	24V / 200Ah lithium
Tires	Polyurethane

FAQ

How high does it lift, and how much can it carry?

It elevates the operator to 165" (13.75 ft) and is rated for a 1,500 lb load.

Does the operator ride up with the platform?

Yes. It's a stand-on order picker: the operator rides the platform up to pick stock at height.

Is the battery lithium, and does it need maintenance?

It runs on a 24V/200Ah lithium battery, which supports opportunity charging with no battery swapping, watering, or off-gassing.

What aisle width does it need?

A 117" aisle with a 1,000 × 1,200 mm pallet, or 121" with an 800 × 1,200 mm pallet, turning within a 57" radius.

Are the forks adjustable?

Yes. It has adjustable forks plus an auxiliary fork, with a 26" fork outside width.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
