EKKO EOP22-216LI Lithium Electric Order Picker 220 lbs Capacity

Name: EKKO EOP22-216LI Lithium Electric Order Picker 220 lbs Capacity
Brand: EKKO Lifts
SKU: EOP22-216LI
Price: 31999.0 USD
Availability: InStock

SKU EOP22-216LI

In Stock

$31,999.00 - $31,999.00

$31,999.00

$31,999.00 - $31,999.00

$31,999.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

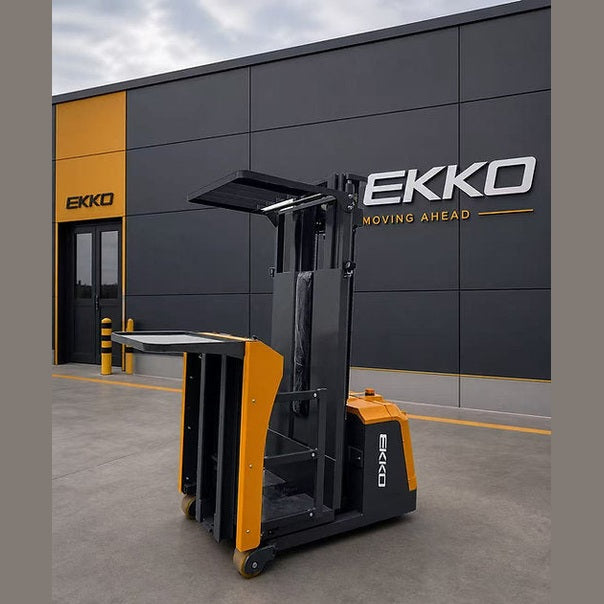

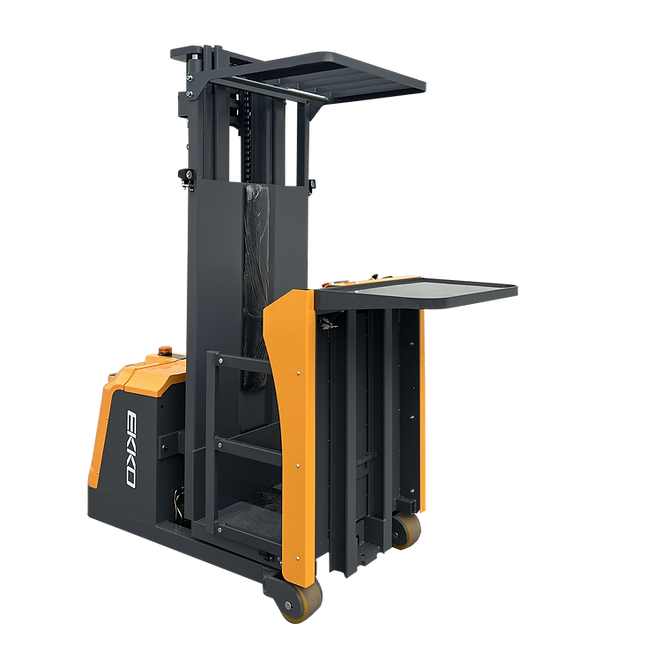

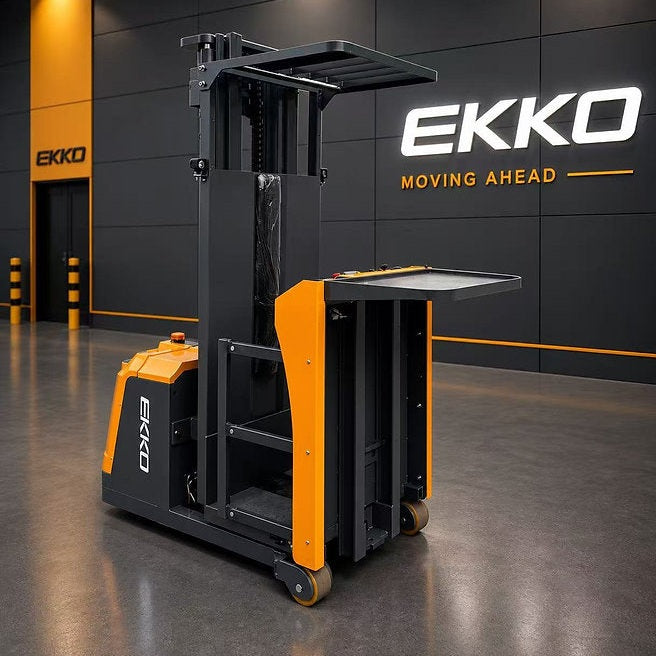

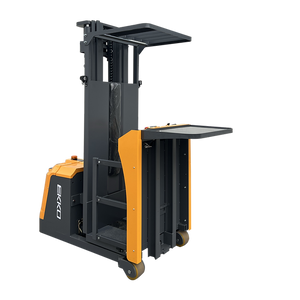

The EKKO EOP22-216Li is a lithium-powered electric order picker built for one job: picking orders from racking and storage, manufacturing floors, and warehouses. The operator stands on the platform and is raised to a 216-inch (18-foot) maximum pick height, working at the rack face instead of running pallets to and from a packing station.

It carries a 220 lb load at a 16-inch load center and moves on polyurethane drive and load wheels suited to smooth indoor floors. A 57-inch turning radius and a 98-inch overall length keep it workable in the aisles an order picker is meant to live in.

Power comes from a 24V lithium-ion system — a 1.5 kW AC drive motor and a 3 kW lift motor, managed by a Curtis controller, with electronic power steering (EPS) and an electromagnetic brake. Travel runs across four speed settings from 0.37 up to 3.10 mph, and the 24V / 200Ah lithium battery uses a hoist-lift replacement method for swap-out. EKKO Lifts builds material handling equipment across electric, LPG, and diesel lines, and this order picker sits in its lithium-powered range.

Features

Standing-operator order-pick platform raised to a 216-inch (18-foot) pick height
220 lb load capacity at a 16-inch load center
24V lithium-ion battery (200Ah) with hoist-lift replacement
1.5 kW AC drive motor and 3 kW lift motor
Curtis controller
Electronic power steering (EPS)
Electromagnetic brake
Four-speed travel from 0.37 to 3.10 mph
Polyurethane drive and load wheels
Ergonomic handle and controls

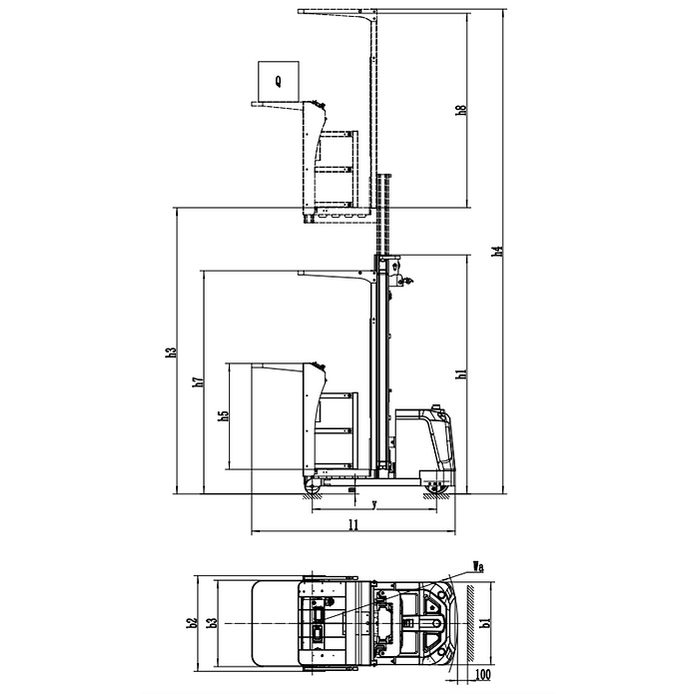

Specifications

EKKO EOP22-216Li Order Picker Specifications
Model	EOP22-216Li
Type	Lithium electric order picker
Operation	Standing operator
Load capacity	220 lb
Load center	16 in
Max platform / pick height	216 in (18 ft)
Overall length	98 in
Chassis width	32 / 37 in
Platform width	33 in
Overhead guard height	76 in
Handle height	41 in
Front overhang	6.7 in
Ground clearance (wheelbase center)	3 in
Turning radius	57 in
Travel speed	0.37–3.10 mph (four settings)
Drive motor	1.5 kW AC
Lift motor	3 kW
Steering	Electric (EPS)
Brake	Electromagnetic
Battery	24V / 200Ah lithium
Battery replacement	Hoist-lift type
Drive / load wheels	Polyurethane

FAQ

How high does it pick, and how much does it carry?

It raises the standing operator to a 216-inch (18-foot) maximum platform height and carries a 220 lb load at a 16-inch load center.

Is it ride-on or walk-behind?

The operator rides standing on the platform and is elevated to pick — it is a stand-on order picker, not a walk-behind.

What powers it?

A 24V / 200Ah lithium-ion battery driving a 1.5 kW AC drive motor and a 3 kW lift motor, with a Curtis controller, electronic power steering, and an electromagnetic brake.

How tight a space does it work in?

Overall length is 98 inches with a 57-inch turning radius; chassis width is 32 to 37 inches. For a right-angle stacking aisle figure specific to your layout, contact us before ordering.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
