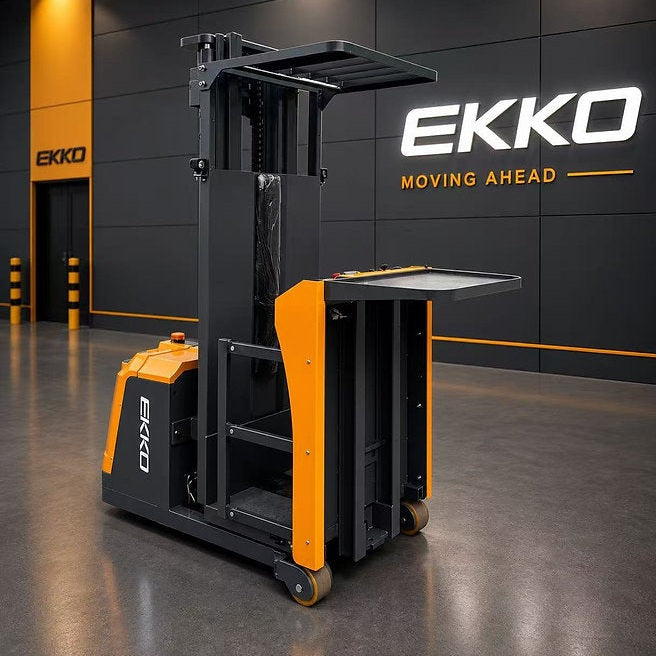

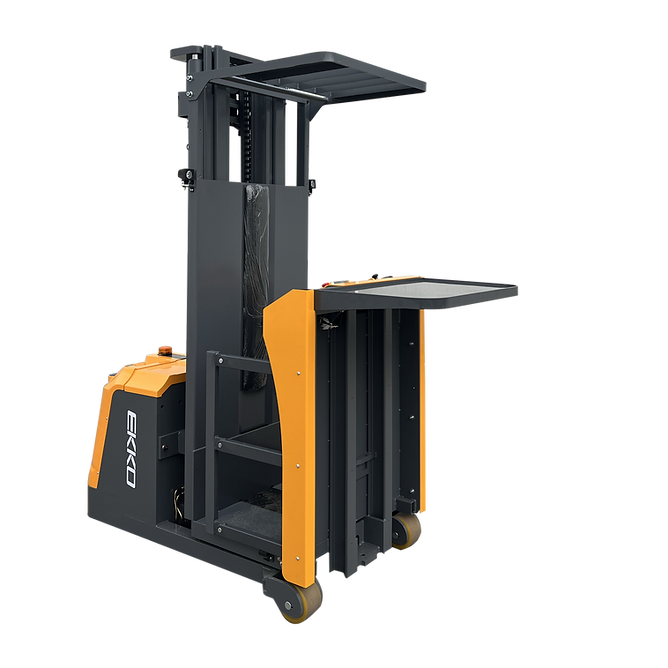

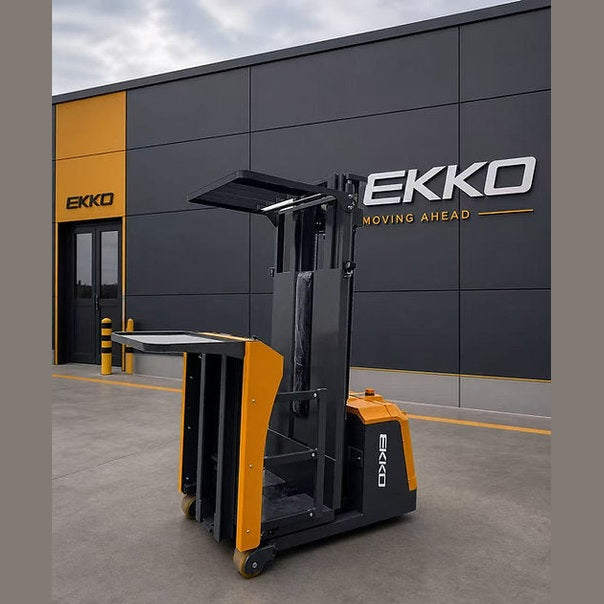

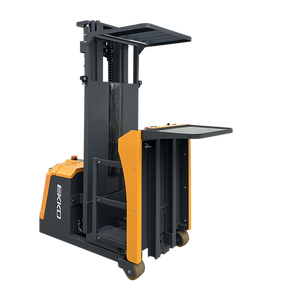

EKKO EOP22-165LI Lithium Electric Order Picker 220 lbs Capacity

The EKKO EOP22-165LI is a lithium-powered stand-on electric order picker designed for one job: picking orders from selective pallet racking, storage bays, manufacturing floors, and warehouse shelving. The operator stands on a platform that lifts to 165 inches (13 ft 9 in), with 220 lb load capacity at a 16-inch load center on the front pick tray.

The EOP22-165LI runs a 24V / 200Ah lithium-ion battery through a Curtis controller, with a 1.5 kW AC drive motor and a 3 kW lift motor. Electronic Power Steering and an electromagnetic brake are standard. Four-gear travel speed (3.10 / 1.55 / 0.75 / 0.37 mph) lets the operator slow down as the platform rises, which is the standard safety pattern for order pickers. Construction is high-quality steel with durable components; drive and load wheels are polyurethane for indoor warehouse concrete. The battery uses a hoist-lift swap method for service or replacement.

• 220 lb load capacity at 16-inch load center — sized for picking individual items and small cartons
• 165-inch maximum platform height for high-bay selective pallet rack picking
• 24V / 200Ah lithium-ion battery — opportunity-charge ready, no watering, no off-gassing
• Four-gear travel speed (3.10 / 1.55 / 0.75 / 0.37 mph) — auto-reducing as the platform rises
• 1.5 kW AC drive motor with AC drive control
• 3 kW lift motor
• Curtis controller
• Electronic Power Steering (EPS) for low-effort maneuvering
• Electromagnetic brake for secure stopping at any platform height
• Hoist-lift battery replacement method for service-friendly swap
• Polyurethane drive and load wheels sized for indoor concrete
• Steel construction with durable components
• Ergonomic handle and controls at the operator platform
• Overhead guard at 76 inches protecting the operator from falling items

Will the EOP22-165LI fit my aisle and reach my racking?

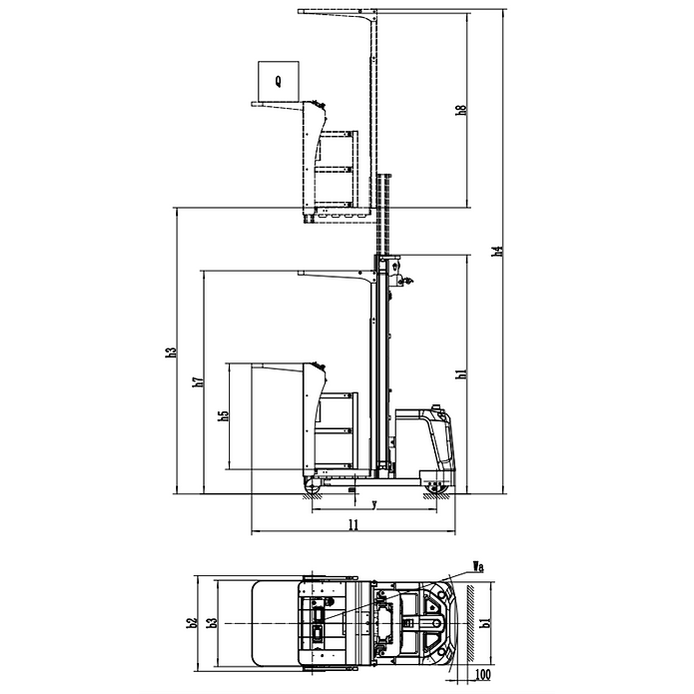

The chassis width is 32–37 inches with a 57-inch turning radius and 98-inch overall length. Maximum platform height is 165 inches (13 ft 9 in). Measure your narrowest active aisle against the turning radius plus pallet depth, and confirm the topmost rack beam you need to pick from sits at or below 165 inches.

Why does the travel speed change with the platform height?

Order pickers automatically reduce travel speed as the platform rises — that’s what the four-gear speed table reflects (3.10 mph at floor level, dropping to 0.37 mph at full elevation). Slower travel at height keeps the elevated operator stable and prevents tip-overs during direction changes.

What kind of items is the 220 lb capacity sized for?

A 220 lb load capacity is sized for individual case picking and small-carton order picking — not pallet handling. The operator rides the platform up to a rack location, picks items off the shelf onto the tray, then descends and transfers them to a staging area or another truck. For pallet-level work you want a stand-up rider or reach truck instead.

What are the lithium battery advantages over lead-acid?

The 24V / 200Ah lithium-ion pack supports opportunity charging (top up during breaks rather than full discharge-recharge cycles), eliminates watering and equalization maintenance, removes off-gassing concerns indoors, and weighs less than an equivalent lead-acid pack. The hoist-lift swap method lets you replace the pack for service without specialty equipment.

How does the EOP22-165LI ship and arrive?

Order pickers of this class ship via LTL freight in a crate. Confirm freight specifics (dock-to-dock, liftgate, residential, lead time) with us before placing the order so the carrier matches your receiving setup.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
