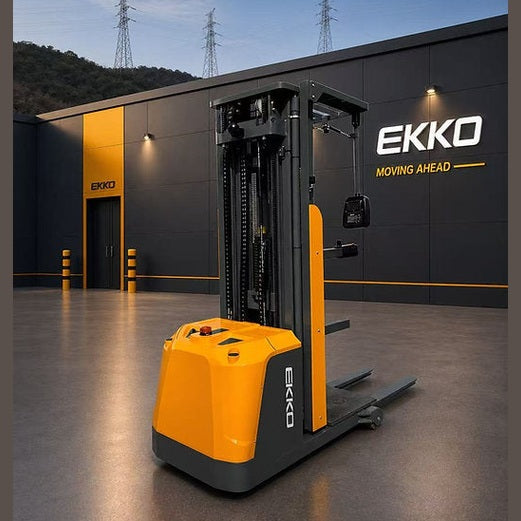

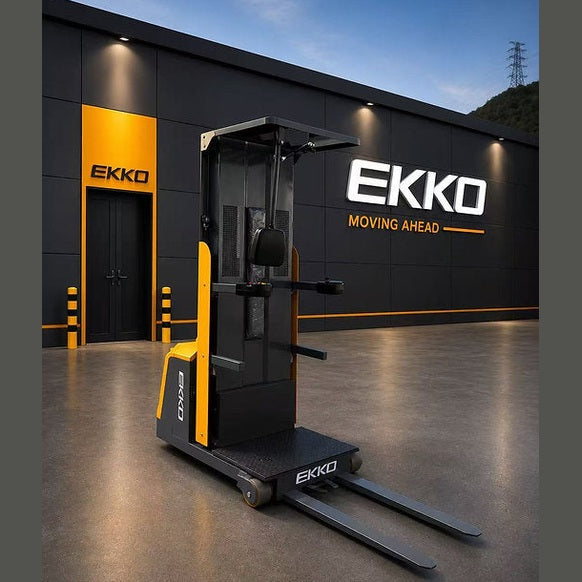

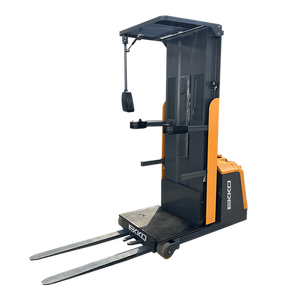

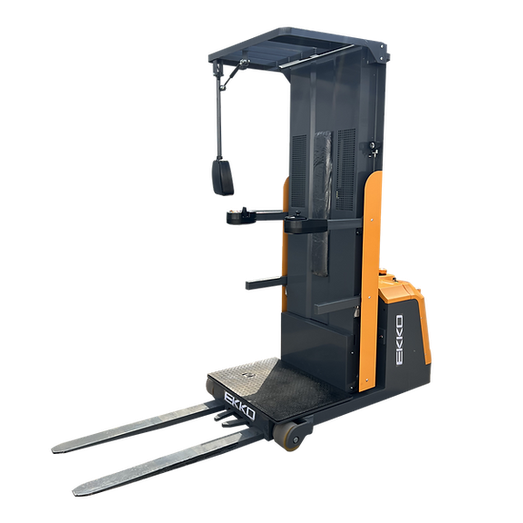

EKKO EOP150-165LI Lithium Order Picker 1,500lbs

The EKKO EOP150-165LI is a lithium-powered order picker rated to 1,500 lb that lifts the operator and forks to a 165-inch (13.75 ft) height for picking stock directly from racking. It is built for one job — moving an operator efficiently through racking, storage facilities, manufacturing floors, and warehouses to pull orders by hand.

The operator works standing, with an ergonomic handle and electronic power steering (EPS) that ease maneuvering through aisles. Four travel-speed settings — from 3.10 mph down to 0.37 mph — let the operator move quickly across open floor and creep precisely while positioned at height. At a 20-inch load center the picker carries 1,500 lb, and it works a 114-inch aisle with a 1000 × 1200 pallet (118 inches with an 800 × 1200 pallet).

Drive and lift are fully electric on a 24V / 200Ah lithium battery. A 1.5 kW AC drive motor moves the truck and a 3 kW lift motor raises the platform, both managed by a Curtis® controller. An electromagnetic brake holds the truck, and it rides on polyurethane drive and load wheels suited to smooth indoor floors. The lithium battery uses a hoist-lift replacement method.

Built by EKKO Lifts, a US-based manufacturer of Class I–V material handling equipment, the EOP150-165LI is built from steel with robotic welding for dependable performance in industrial environments.

• Lifts to a 165-inch height for high-bay order picking
• 1,500 lb load capacity at a 20-inch load center
• Standing operation with ergonomic handle and controls
• Electronic power steering (EPS)
• Four-speed AC drive motor (1.5 kW) and 3 kW lift motor
• Curtis® controller
• 24V / 200Ah lithium battery
• Adjustable forks with auxiliary fork
• Electromagnetic brake
• Polyurethane drive and load wheels
• Steel construction with robotic welding

How high does the EOP150-165LI lift, and how much can it carry?

It lifts to a 165-inch (13.75 ft) height and is rated for 1,500 lb at a 20-inch load center.

How is it operated?

It is a standing order picker — the operator rides with the platform and forks to pick stock by hand directly from racking, steering with an ergonomic handle and electronic power steering.

What aisle width does it need?

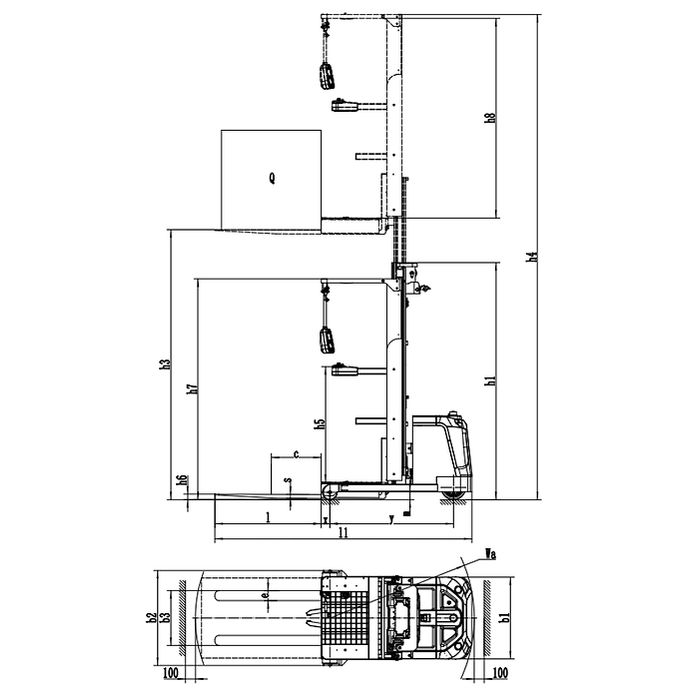

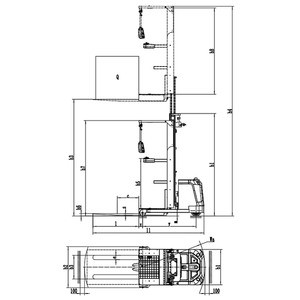

It works a 114-inch aisle with a 1000 × 1200 pallet, or 118 inches with an 800 × 1200 pallet, with a 57-inch turning radius. Confirm against your own aisle and pallet dimensions before ordering.

What battery does it use?

A 24V / 200Ah lithium battery, replaced by a hoist-lift method.

How fast does it travel?

Four travel-speed settings, from 3.10 mph in first gear down to 0.37 mph for precise positioning at height.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
