EKKO EKYR Portable Yard Ramp

Name: EKKO EKYR Portable Yard Ramp
Brand: EKKO Lifts
SKU: EKYR
Price: 15998.0 USD
Availability: InStock

SKU EKYR

In Stock

$15,998.00 - $15,998.00

$15,998.00

$15,998.00 - $15,998.00

$15,998.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

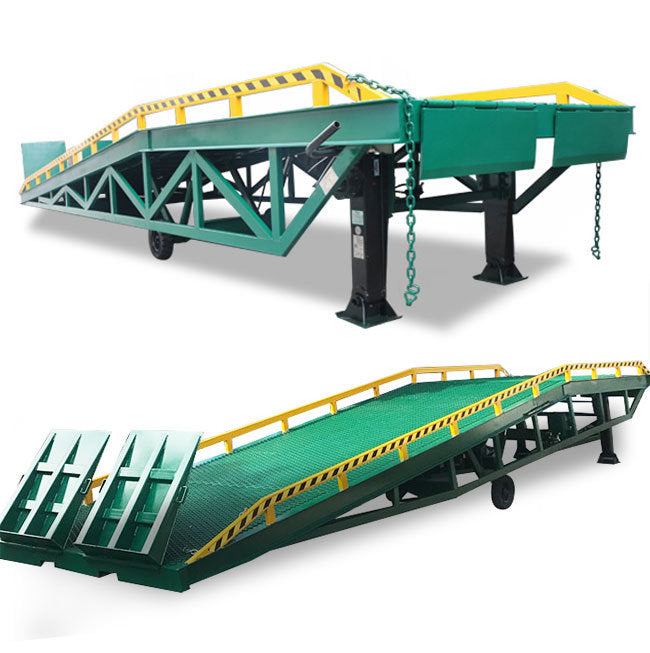

The EKKO EKYR is a portable steel yard ramp that gives a site without a loading dock a way to drive forklifts and pallet trucks straight into a trailer or container. It is rated for a 22,000 lb capacity and rolls on its own rubber-tired wheel system, so it can be repositioned between trailers, buildings, or job sites instead of working around a fixed dock.

The ramp runs 37 ft overall with a 9.8 ft level-off section at the top, measures 7 ft wide, and reaches a service height of 3.9 ft (47 in). Full incline and plan-view dimensions are shown below.

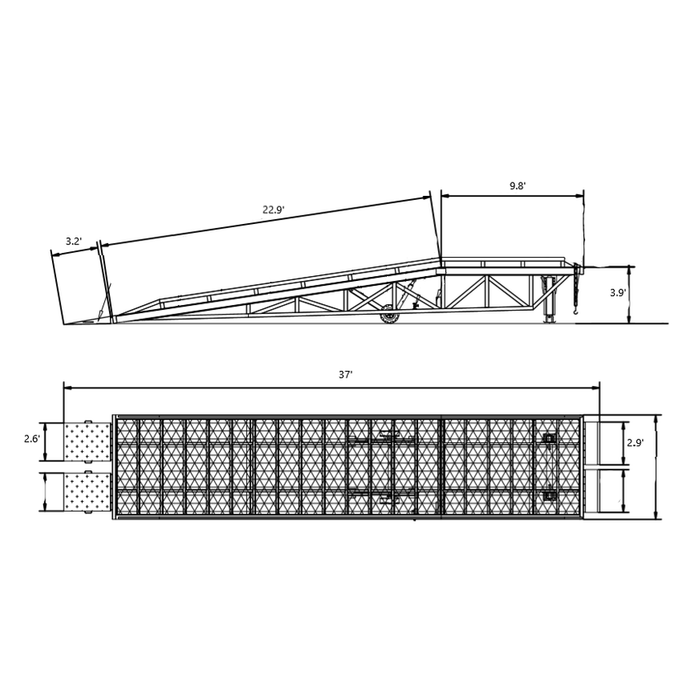

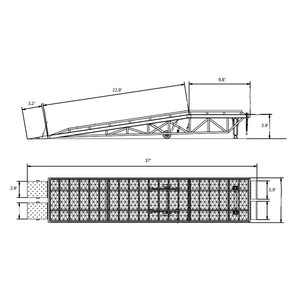

EKKO EKYR yard ramp dimension diagram, side and plan views with measurement callouts — Side and plan dimension views of the EKYR yard ramp.

EKKO builds the EKYR from welded steel framing, and at 6,500 lb of service weight it stays planted under load. A fully self-supported design and the built-in wheel system let it be moved and set in place without a dock, crane, or permanent install.

At 6,500 lb, the EKYR ships by freight; contact Forklift King to arrange scheduling and delivery.

Features

22,000 lb capacity. Rated to carry loaded forklifts and pallet trucks crossing into trailers and containers.
Portable wheel system. Rubber-tired wheels let the ramp be repositioned between trailers, docks, or sites.
Fully self-supported. Free-standing steel design needs no dock, pit, or permanent installation.
Welded steel construction. Steel frame and deck at a 6,500 lb service weight that stays planted under load.
37 ft length with a 9.8 ft level-off. A long approach grade and a flat top section to ease the transition into a trailer.

Specifications

EKKO EKYR Portable Yard Ramp Specifications
Capacity	22,000 lb
Overall length	37 ft (444 in)
Level-off length	9.8 ft (118 in)
Overall width	7 ft (84 in)
Service height	3.9 ft (47 in)
Service weight	6,500 lb
Tires	Rubber
Frame	Steel
Dimensions are supplier-published; confirm the service height against your trailer or container bed height before purchase.

FAQ

What is the EKKO EKYR used for?

It is a portable yard ramp for sites without a loading dock — it lets forklifts and pallet trucks drive up and into a trailer or shipping container to load and unload.

How much weight can it carry?

The EKYR is rated for a 22,000 lb capacity, enough for loaded forklifts and pallet trucks.

Is it portable, and how is it moved?

Yes. It has a rubber-tired wheel system and a fully self-supported design, so it can be moved and set in place between trailers, docks, or job sites without a permanent install.

What are its overall dimensions?

It runs 37 ft long overall with a 9.8 ft level-off section at the top, is 7 ft wide, and reaches a service height of 3.9 ft (47 in). The service weight of the ramp itself is 6,500 lb.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
