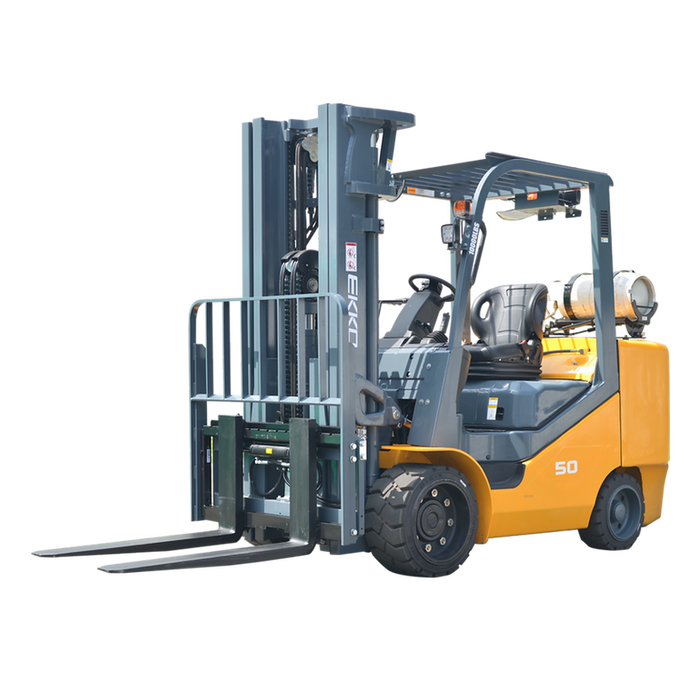

EKKO EK50LP Forklift (LPG) 10,000 lbs cap, 185" Lift Height

The EKKO EK50LP is a 10,000 lb capacity LPG forklift built for sustained material handling across warehouses, distribution centers, and indoor manufacturing floors. A Kubota WG3800 engine drives the truck to a 185-inch maximum lift height and a 10.5 mph loaded travel speed — vertical reach for high-bay racking on the heavier load-class, with the controllability buyers expect from a cushion-tire truck.

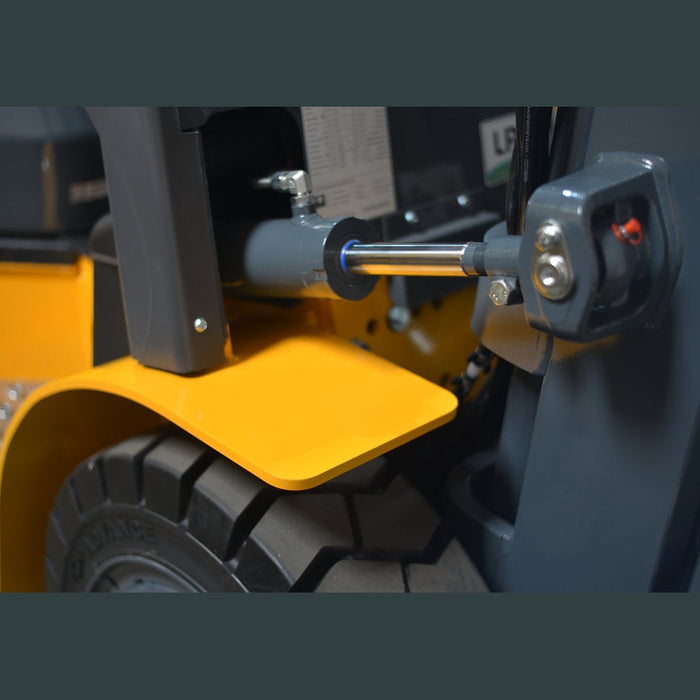

Cushion-pattern tires keep the EK50LP planted on smooth indoor floors and inside trailers, while the steer axle pivots to 80 degrees for a tighter turning radius than a standard non-pivoting axle delivers — useful for tight-aisle pick paths, dock-door work, and right-angle stack maneuvers. The integral heavy-duty chassis is engineered for driver protection without adding deadweight that would erode payload economics.

EKKO manufactures Class I–V material handling equipment from a 50,000-plus square-foot facility in Pomona, California. The EK50LP is Tier 4 EPA compliant — clearance that matters to operators running indoors and in jurisdictions with strict on-site emissions thresholds.

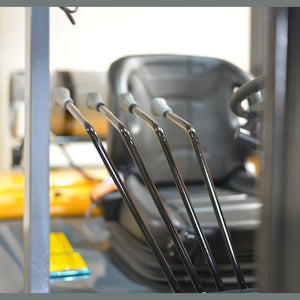

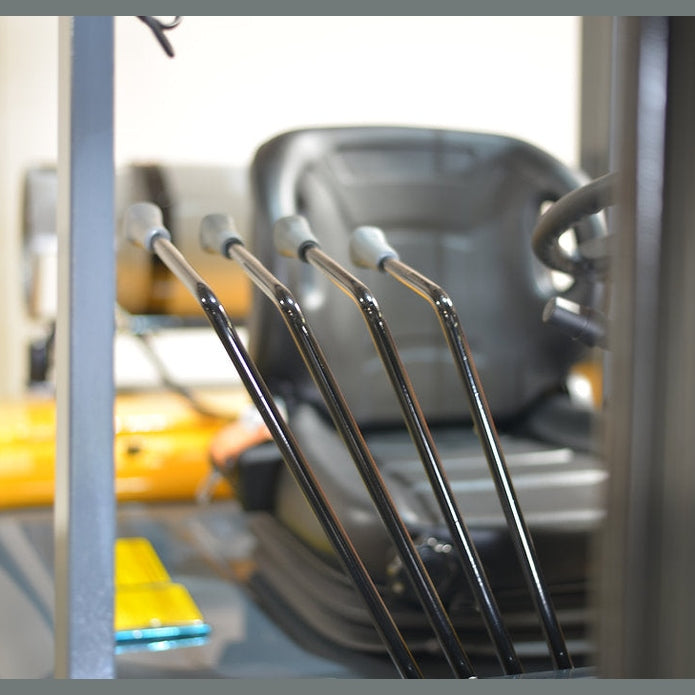

The operator station is built around long-shift comfort: an adjustable steering column limits arm-and-shoulder fatigue across a typical workday, a non-slip entrance step opens wider access and leg room, and a multifunction instrument panel keeps engine and operating status in the operator's line of sight. Hydraulic controls put four-lever auxiliary actuation within reach without leaving the seat, and forward sightlines stay open for accurate fork-tip placement.

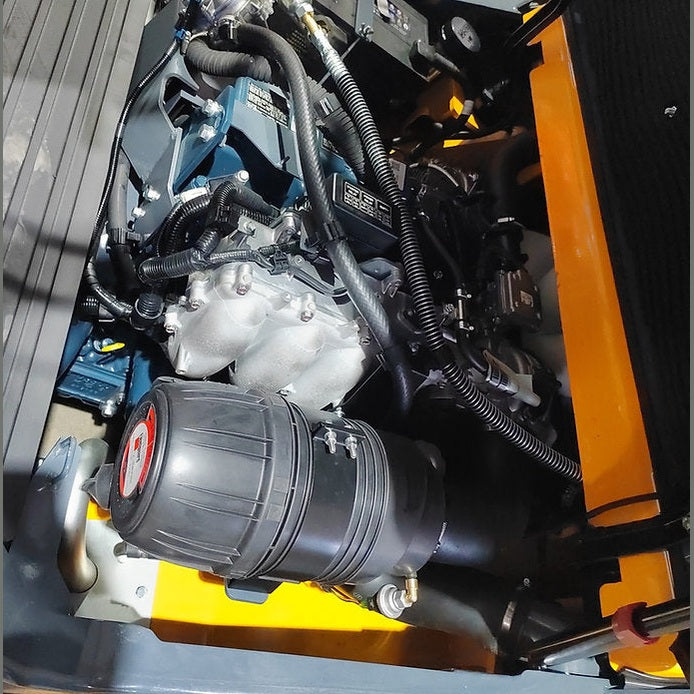

Under the hood, the Kubota WG3800 produces 63.2 hp — sized for sustained pallet handling at 10,000 lb capacity without leaving headroom unused. Service weight is 16,250 lb, giving the truck the counterbalance mass it needs to handle full-capacity loads with stability margin. Wheelbase is 61.8 inches and overall width is 55.9 inches; overall length without forks is 109 inches, so the truck stays maneuverable inside trailers and at dock doors despite the heavier capacity class.

• 10,000 lb capacity at a 24-inch load center.
• Kubota WG3800 engine rated 63.2 hp.
• Tier 4 EPA compliant.
• Steer axle pivots to 80° for a tighter turning radius than a fixed-axle truck.
• Pattern cushion tires for sure footing on smooth indoor surfaces.
• Integral heavy-duty chassis engineered for driver protection.
• Multifunction instrument panel for at-a-glance monitoring of engine and operating status.
• Adjustable steering column reduces operator arm-and-shoulder fatigue across long shifts.
• Non-slip entrance step with wider access and leg room.
• Hydraulic floor pedal service brake.
• Mechanical hand-lever parking brake.
• Hydraulic controls for auxiliary functions.

What fuel does the EK50LP run on?

Liquid Propane (LPG). The engine is Tier 4 EPA compliant.

What engine is in the truck?

A Kubota WG3800 rated 63.2 hp.

What is the lift height and free lift?

Maximum lift height is 185 in. Free lift is 44.3 in. Mast overall lowered height is 91.9 in.

What kind of tires does it come with?

Pattern cushion tires — sized for indoor smooth-floor work, inside-trailer operation, and dock-area handling rather than outdoor yard surfaces.

How tight will it turn?

The steer axle pivots to 80°, which delivers a tighter turning radius than a standard fixed-axle truck.

What is the service weight?

16,250 lb. Confirm your floor, ramp, dock plate, and trailer floor ratings can support the loaded weight (truck + 10,000 lb payload) before commissioning.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
