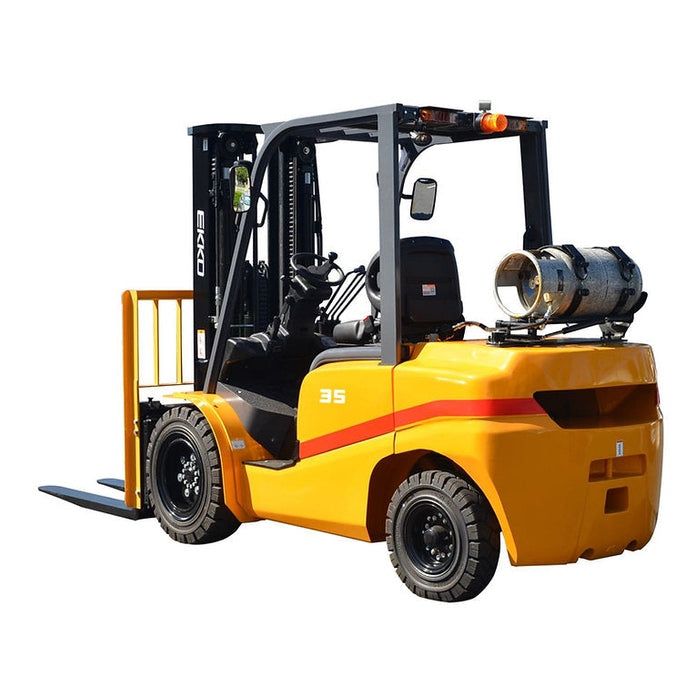

EKKO EK35TLP Forklift with solid pneumatic tires 7000 lbs., cap.

The EKKO EK35TLP is a 7,000 lb capacity LPG forklift built for everyday material handling in warehouses, distribution centers, and yards. A Kubota or PSI 2.4L engine drives the truck to a 185-inch maximum lift height and an 11 mph loaded travel speed — enough vertical reach for high-bay racking and enough ground speed to keep a pick-and-place cycle moving.

Standard equipment includes a Cascade® side shift and a pre-plumbed Shimadzu® 4-way valve, so the truck arrives ready for the attachments most LPG fleets run on day one — no aftermarket hydraulic plumbing, no installation lag.

EKKO manufactures Class I–V material handling equipment from a 50,000-plus square-foot facility in Pomona, California. The EK35TLP is Tier 4 EPA compliant and meets CARB 4 emissions regulations — clearances that matter to operators running in California and other strict-emissions jurisdictions.

Operator comfort starts with the enlarged cab footprint and the heightened overhead guard whose large arc-shaped front leg opens forward sightlines for forks-up work. A semi-suspension seat and small-diameter steering wheel pair with electro-hydraulic direction changing and an automobile-style double combined switch to reduce the physical load on long shifts. Cushion-mounted cab suspension absorbs floor vibration, and a lowering damping device inside the lifting system tames mast shock so loads set down without the noise typical of unloaded mast travel.

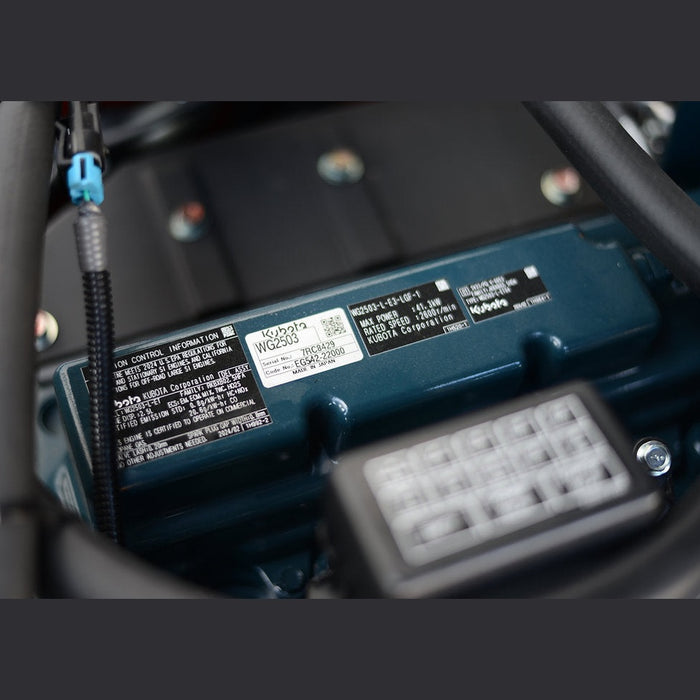

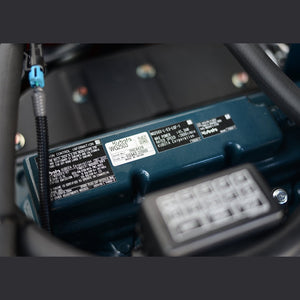

Under the hood, the engine produces 63 hp at 2,700 rpm. The optimized hydraulic system trims fuel consumption per cycle, which compounds across the equipment-life of an LPG truck running multiple shifts a week. Solid pneumatic tires (28×9-15-12PR front, 6.50-10-10PR rear) handle smooth indoor floors and rough yard surfaces alike without going flat — practical when a unit splits time between dock and yard. A small turning radius keeps the truck flexible in tight aisles and trailer doorways.

• 7,000 lb capacity at a 24-inch load center for full-pallet handling across standard warehouse loads.
• Kubota or PSI 2.4L LPG engine rated 63 hp at 2,700 rpm.
• Tier 4 EPA compliant and meets CARB 4 emissions standards.
• Cascade® side shift as standard equipment for fine pallet-position adjustment without re-steering the truck.
• Shimadzu® 4-way valve, pre-plumbed from the factory — ready for clamps, rotators, sideshifters, or other auxiliary-circuit attachments.
• Enlarged operator space and heightened overhead guard with a large arc-shaped front leg for forward visibility on lifts.
• Semi-suspension seat and small-diameter steering wheel paired with electro-hydraulic direction changing.
• Automobile-style double combined switch for familiar dash ergonomics.
• Cushion-mounted cab and whole-cab suspension to absorb truck vibration across the operator station.
• Lowering damping device inside the lifting system reduces mast shock, vibration, and load-set noise.
• Optimized hydraulic system tuned for lower fuel consumption per duty cycle.
• Solid pneumatic tires for indoor and yard versatility without flat-tire downtime.
• Hydraulic floor pedal service brake.
• Small turning radius for tight aisles and trailer-loading.

• Cascade® side shift (standard)
• Shimadzu® 4-way valve, pre-plumbed (standard)

What fuel does the EK35TLP run on?

Liquid Propane (LPG). The engine is Tier 4 EPA compliant and meets CARB 4 emissions regulations.

What engine is in the truck?

A Kubota or PSI 2.4L engine rated 63 hp at 2,700 rpm.

What is the lift height and free lift?

Maximum lift height is 185 in. Free lift is 37.9 in. With forks fully raised, overall height is 234 in.

Does it ship with a side shift?

Yes — Cascade® side shift is standard, and the Shimadzu® 4-way valve comes pre-plumbed from the factory for additional auxiliary-circuit attachments.

What kind of tires are fitted?

Solid pneumatic tires — 28×9-15-12PR on the drive axle and 6.50-10-10PR on the steer axle.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
