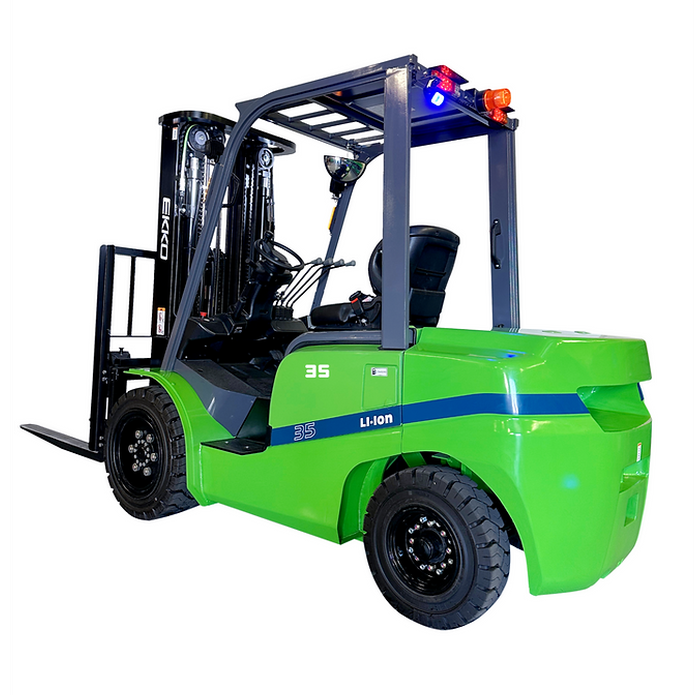

EKKO EK35GT-Li Lithium-Powered Forklift, 7,000 lbs Capacity, 185" Lift Height

The EKKO EK35GT-Li is a 7,000 lb capacity 4-wheel lithium-battery forklift built for material handling across warehouses, distribution centers, stock rooms, manufacturing floors, and loading docks. An 80V / 280Ah lithium battery drives the chassis to a 185-inch (15.4 ft) maximum lift height — vertical reach more often associated with IC forklifts at this capacity tier, on an electric chassis with no engine emissions, no fuel handling, and lithium's fast-charge and partial-cycle tolerance.

EKKO manufactures Class I–V material handling equipment from a 50,000-plus square-foot facility in Pomona, California, and lithium technology is a meaningful part of the EKKO identity — lithium models are labeled with the "-Li" suffix you see on this SKU's part number, and the chassis itself carries a visible "Li-ion" badge. The EK35GT-Li ships with the lithium battery, a 3-Phase 480V charger (220V and 110V input options available), a Cascade® side shift, and a pre-plumbed Shimadzu® 4-way valve — no separate purchases, no aftermarket plumbing, no waiting on accessories before commissioning.

The chassis runs an InMotion® controller, with hydraulic foot-pedal service braking and solid pneumatic tires that handle smooth indoor floors and inside-trailer surfaces. Symmetric mast tilt at 6° forward and 6° backward gives the operator equal pickup and stack geometry on both sides of vertical. Travel speed is electronically governed to 9.3 mph in both laden and unladen operation, with the controller managing smooth acceleration under load.

Steel construction with robotic welding holds dimensional tolerances across the chassis, mast, and counterweight assemblies. Service weight is 10,648 lb with the battery installed, paired with a 66.9-inch wheelbase and 50.5-inch overall width — purposefully sized for the 7,000 lb capacity rating on a 4-wheel platform, with enough counterbalance to handle full-rated loads.

The unit ships with a 3-year limited warranty. Confirm coverage scope, parts-and-labor breakdown, and any duty-cycle or hour-meter conditions directly with the supplier before commissioning.

• 7,000 lb capacity at a 24-inch load center.
• 185-inch (15.4 ft) maximum lift height with a 37.9-inch free lift.
• 80V / 280Ah lithium battery for fast-charge and partial-cycle operation.
• 3-Phase 480V charger standard; 220V and 110V input options available.
• InMotion® controller for smooth acceleration and consistent speed under load.
• Cascade® side shift as standard equipment for fine pallet-position adjustment without re-steering.
• Shimadzu® 4-way valve, pre-plumbed from the factory — ready for clamps, rotators, sideshifters, or other auxiliary-circuit attachments.
• Symmetric mast tilt: 6° forward and 6° backward.
• Solid pneumatic tires for indoor and inside-trailer operation without flat-tire downtime.
• Hydraulic foot-pedal service brake.

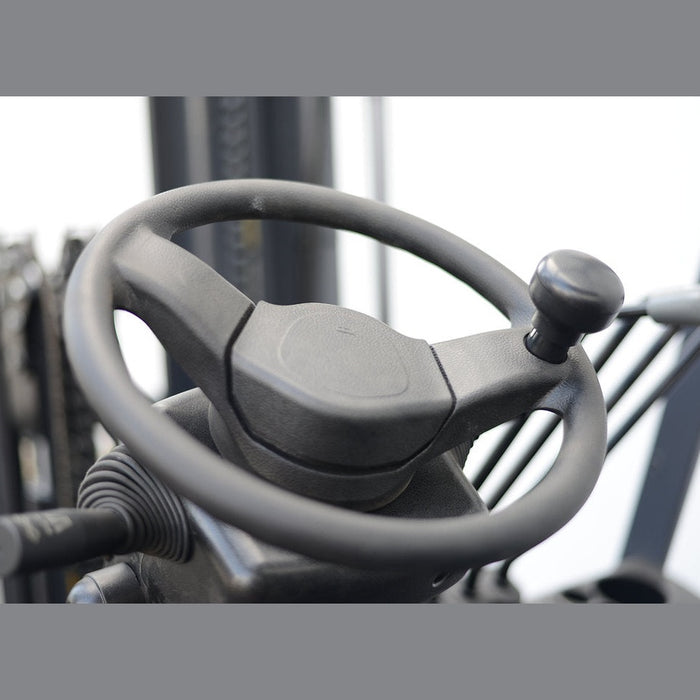

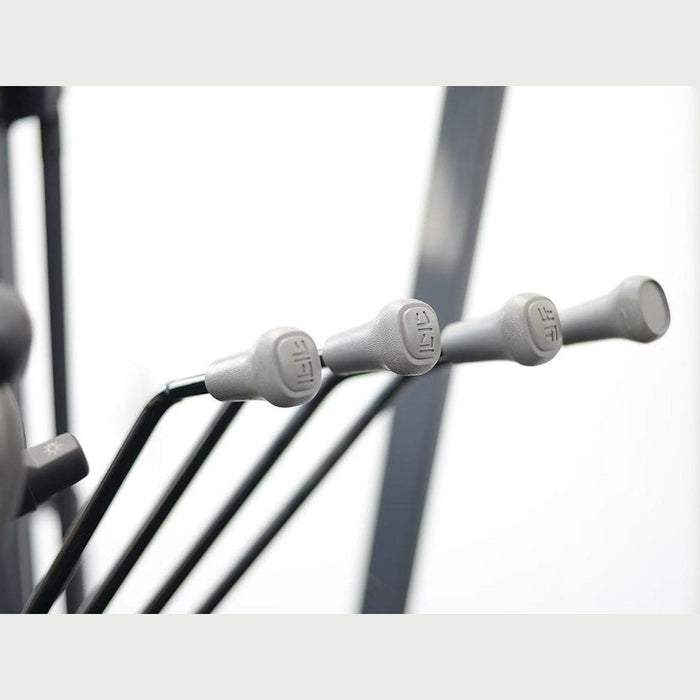

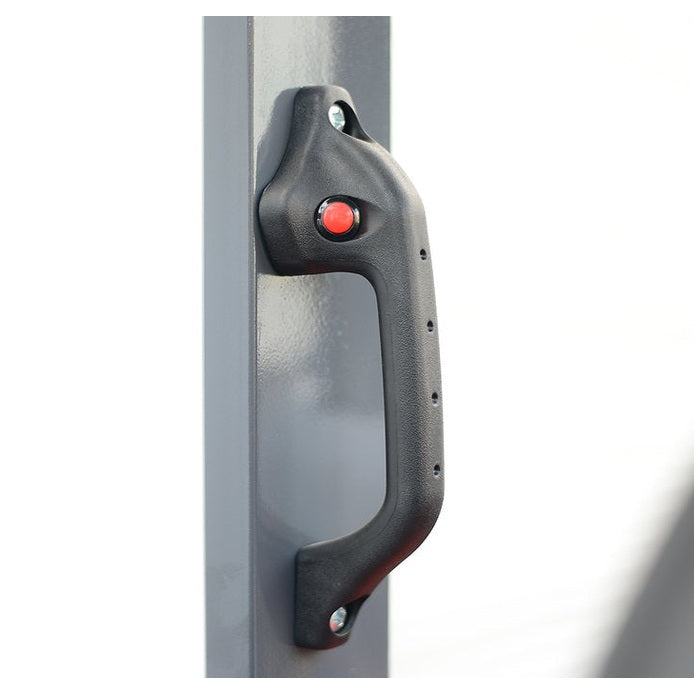

• Ergonomic handle and controls across the operator station.
• Steel construction with robotic welding.
• 3-year limited warranty.

Use cases the supplier highlights:

• Loading and unloading trucks
• Loading docks
• Stock rooms
• Manufacturing floors
• Warehousing

The 50.5-inch overall width, 66.9-inch wheelbase, and 98.2-inch minimum outside turning radius fit standard counterbalanced-forklift aisle layouts. Confirm aisle, doorway, dock-door, and trailer-door clearances against the truck's overall dimensions before specifying.

• 80V / 280Ah lithium battery
• 3-Phase 480V charger (220V and 110V input options available)
• Cascade® side shift (standard)
• Shimadzu® 4-way valve, pre-plumbed (standard)

The EK35GT-Li ships with a 3-year limited warranty from EKKO. Confirm coverage scope, parts-and-labor breakdown, and any duty-cycle or hour-meter conditions directly with the supplier before commissioning.

What is the rated capacity and lift height?

7,000 lb at a 24-inch load center. Maximum lift height is 185 in (15.4 ft) with a 37.9-inch free lift.

What battery and charger ship with the truck?

An 80 V / 280 Ah lithium battery and a 3-Phase 480 V charger ship with the truck. 220 V and 110 V input variants are available — specify which input voltage matches your facility when ordering.

What standard attachments come with it?

A Cascade® side shift comes as standard equipment, and a Shimadzu® 4-way valve is pre-plumbed from the factory. The 4-way valve gives a direct factory-ready connection for clamps, rotators, sideshifters, or other auxiliary-circuit attachments.

What is the travel speed?

9.3 mph in both laden and unladen operation — the InMotion® controller governs speed for predictability across the load envelope.

What kind of tires does it come with?

Solid pneumatic tires — sized for smooth indoor floors and inside-trailer operation rather than rough outdoor yard surfaces.

What is the warranty?

The unit ships with a 3-year limited warranty from EKKO. Coverage specifics — what is included, what is excluded, parts vs labor split, hour-meter limits — confirm with the supplier before commissioning.

What overall dimensions should I confirm against my space?

Overall length with forks is 150 in; overall length without forks is 108 in; overall width is 50.5 in; wheelbase is 66.9 in. Lowered mast height is 86.2 in. Minimum outside turning radius is 98.2 in. Confirm doorway, aisle, dock-door, and trailer-door clearances against these dimensions before specifying.

Manual and technical documents available on request — contact support@forkliftking.com or call +1 (307) 441-9566.
