Description
+-

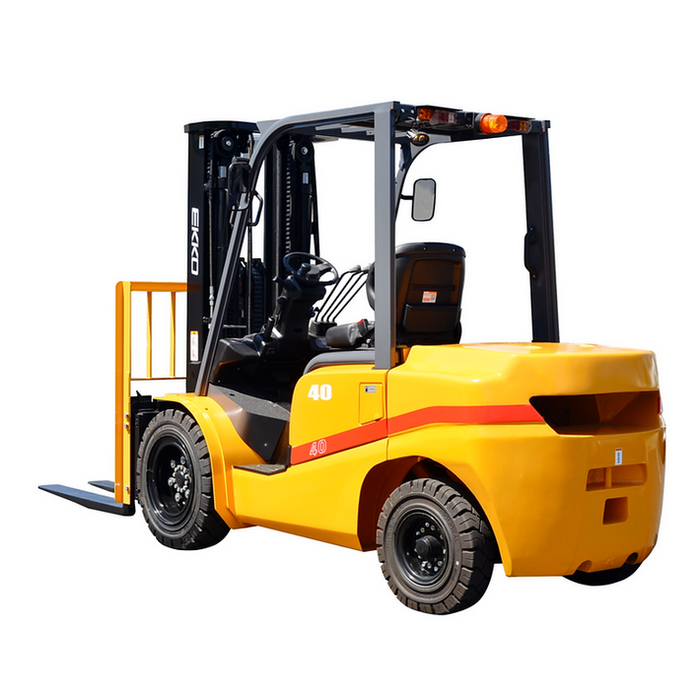

The EKKO EK35D is a four-wheel 7,000 lb capacity diesel forklift built for outdoor material handling, warehousing, distribution yards, and construction logistics. Power comes from a Mitsubishi 4EG diesel engine rated at 49 HP at 2,250 rpm, Tier 4 EPA compliant out of the box.
The truck is rated at a 24-inch load center with a 185-inch maximum lift height and 37.9-inch free lift. Mast overall height collapsed is 86.2 inches; overall height with forks fully lifted reaches 234 inches. Service weight is 10,967 lb; overall length without forks measures 108 inches and overall width is 50.5 inches. Maximum travel speed is 11 mph loaded and 12.1 mph unloaded.
EKKO has engineered the operator station to keep the driver supported through long outdoor shifts. The overhead guard is enlarged and heightened, with large arc-shaped front legs that widen the field of view from the seat. A multifunctional suspended seat carries the operator’s weight, dampens vibration from rough yard surfaces, and balances against side loading. The steering column carries an adjustment mechanism within easy reach so operators of different heights can position the wheel without leaving the seat.

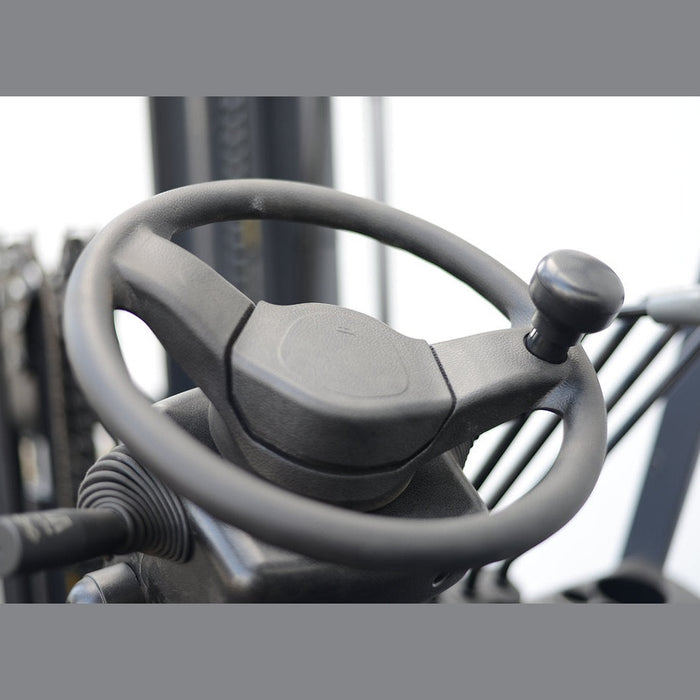

EK35D steering wheel with palm-grip spinner.
EKKO addresses one of the common complaints about diesel forklift operation directly: noise. The EK35D uses an impedance composited muffler that drops sound output over the cycle — meaningful for operators on full-shift duty and for facilities adjacent to noise-sensitive zones.
The truck rolls on solid pneumatic tires — 28x9-15-12PR drive wheels and 6.50-10-10PR steer wheels. Solid pneumatics combine the tread profile of pneumatic tires (grip on uneven outdoor surfaces) with the puncture immunity of solid construction (no air loss, no flat-tire downtime in a yard where nails and screws are part of the floor). Service braking is a hydraulic floor pedal, the layout the operator already knows from automotive driving.
EKKO Lifts manufactures the EK35D at its facility in Pomona, California, and backs it with the EKKO Advantage Warranty: three-year frame, fork, and mast coverage (or 6,000 hours, whichever comes first) and two-year engine coverage (or 4,000 hours). Forklift King is an authorized EKKO Lifts dealer and handles US delivery, freight scheduling, and post-sale support.
Features
+-
7,000 lb capacity at 24-inch load center. Rated for heavy industrial loads and outdoor yard work.
185-inch maximum lift height, 37.9-inch free lift. Clears standard pallet rack and stacks high in outdoor storage.
Mitsubishi 4EG diesel engine, 49 HP at 2,250 rpm. Tier 4 EPA compliant.
Solid pneumatic tires — 28x9-15-12PR drive, 6.50-10-10PR steer. Tread grip with puncture-proof construction for yard duty.
Adjustable steering column — column adjusts within easy reach to fit operator height.
Hydraulic floor-pedal service brake.
Specifications
+-
EKKO EK35D Specifications
Model
EK35D
Drive type
Diesel
Load capacity
7,000 lb
Load center
24 in
Maximum lift height
185 in
Free lift height
37.9 in
Overall height with forks lifted
234 in
Mast overall height (collapsed)
86.2 in
Wheelbase
66.9 in
Overall width
50.5 in
Overall length with forks
153 in
Overall length without forks
108 in
Min ground clearance (at mast)
4.7 in
Service weight
10,967 lb
Maximum travel speed (loaded / unloaded)
11 / 12.1 mph
Tires
Solid pneumatic
Drive wheel
28x9-15-12PR
Steer wheel
6.50-10-10PR
Service brake
Hydraulic floor pedal
Fork size (L × W × T)
42" × 4.9" × 1.9"
Engine
Mitsubishi 4EG
Engine rated power (diesel)
49 HP at 2,250 rpm
Emissions compliance
Tier 4 EPA
Starter battery
12V / 80 Ah
Specifications subject to change without notice. Confirm current build details with Forklift King before order.
Warranty
+-
The EK35D is covered by the EKKO Advantage Warranty:
Frame, fork, and mast: 3 years or 6,000 hours, whichever comes first
Engine: 2 years or 4,000 hours, whichever comes first
Coverage runs from initial delivery date. Specific terms, exclusions, and service procedures are documented in EKKO’s published warranty terms.
FAQ
+-
Can the EK35D be used indoors?
Diesel forklifts are generally designed for outdoor use — yards, lumber operations, construction sites, and loading docks. Indoor use of diesel equipment is restricted in most jurisdictions because of exhaust emissions, even with Tier 4 compliance. If you need indoor lift capability, an LPG or electric forklift is the right choice. The EK35D is best matched to outdoor yards, paved aprons, and well-ventilated covered structures.
Is the EK35D emissions-compliant?
Yes. The Mitsubishi 4EG diesel engine is certified to Tier 4 EPA emissions standards, which is the current US federal compliance level for non-road diesel engines in this displacement class.
What does “solid pneumatic” mean for the tires?
Solid pneumatic tires have the same tread shape and outer dimensions as standard pneumatic tires, but the inside is solid molded rubber instead of an air-filled chamber. The result is grip on uneven outdoor surfaces (gravel, broken asphalt, lumber yards) without the flat-tire risk that air-filled pneumatics carry. Useful for yards where punctures are routine.
What’s the engine, and is it serviceable in the US?
The EK35D ships with a Mitsubishi 4EG diesel engine, rated at 49 HP at 2,250 rpm. Mitsubishi industrial engines are widely supported in the US for parts and service.
How is it delivered?
The EK35D ships by LTL freight from the US. Contact us for freight scheduling, liftgate availability, and delivery details specific to your destination.
