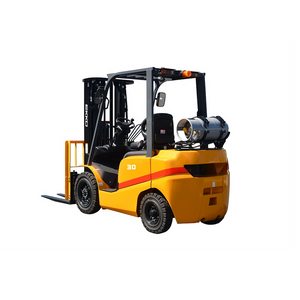

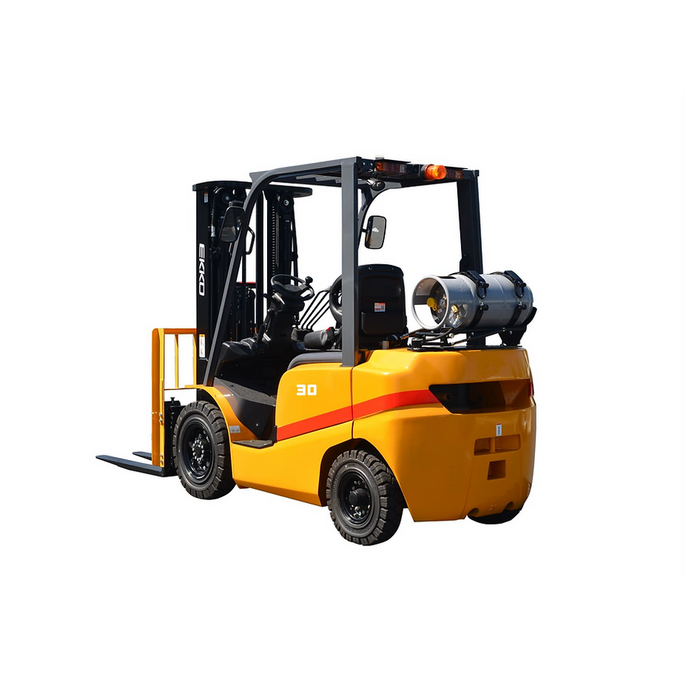

EKKO EK30TLP Forklift with solid pneumatic tires 6000 lbs., cap.

The EKKO EK30TLP is a 6,000 lb capacity LPG counterbalanced forklift built for warehousing, distribution, and mixed indoor-and-outdoor material handling. It runs on a Kubota or PSI 2.4L engine that meets Tier 4 EPA standards and the CARB 4 regulation, rated 63 HP at 2,700 rpm. Maximum lift height is 185 inches with 37.9 inches of free lift, and the truck rolls on solid pneumatic tires sized for a long working life on a mix of warehouse concrete and yard surfaces.

EKKO sized the operator station for full-shift comfort. A semi-suspension seat, small-diameter steering wheel, electro-hydraulic direction control, and an automotive-style dual combined switch are standard. A cushion-mounted, full-suspension cab absorbs vibration through the chassis, and a lowering damping device inside the lift system softens mast oscillation when forks return to the ground — both reduce operator fatigue and quiet the noise of goods settling on the floor.

Two attachment-grade features are pre-installed: a Cascade® side shift carriage and a Shimadzu® 4-way valve, pre-plumbed for auxiliary hydraulic attachments. The side shift handles lateral pallet placement without re-steering the truck, and the 4-way valve leaves the EK30TLP ready for attachment swaps later without re-piping the hydraulic system.

The chassis is sized to navigate the kind of mixed-use warehouse aisle that still has to accommodate a propane counterbalanced truck. Wheelbase is 66.9 inches, overall length with forks is 151 inches (106 inches without forks), and overall width is 48.2 inches. Maximum travel speed is 11 mph loaded and 12.1 mph unloaded. The enlarged, raised overhead guard uses a large arc-shape front leg to open the operator's line of sight through the mast.

• 6,000 lb load capacity at a 24-inch load center
• 185-inch maximum lift height with 37.9-inch free lift

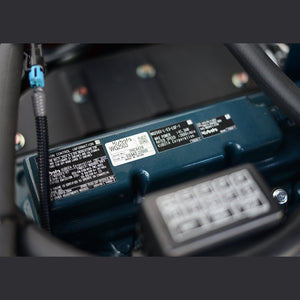

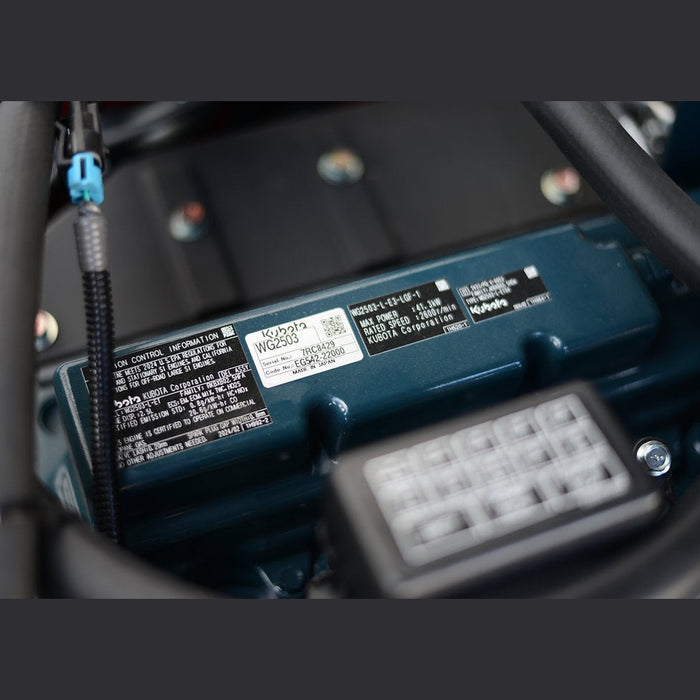

• Kubota or PSI 2.4L engine — 63 HP at 2,700 rpm, Tier 4 EPA and CARB 4 compliant
• Cascade® side shift carriage — factory-installed

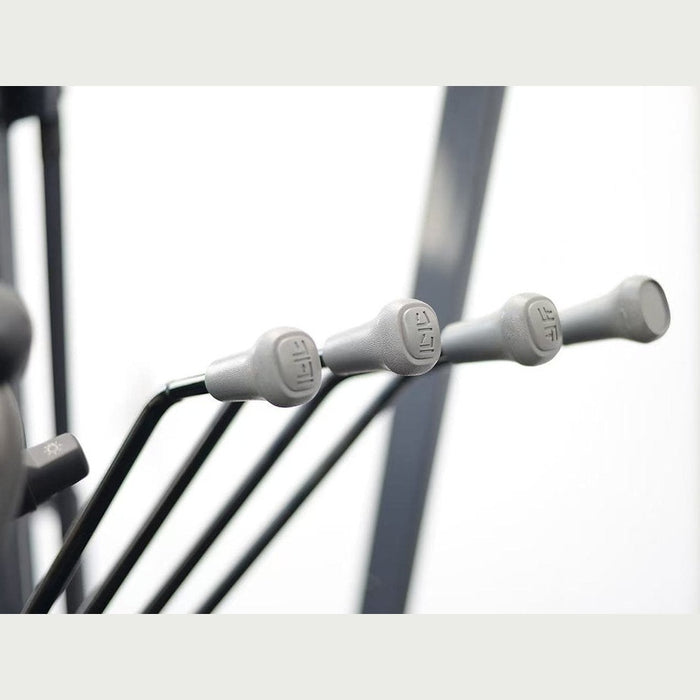

• Shimadzu® 4-way valve — pre-plumbed for auxiliary hydraulic attachments
• Solid pneumatic tires — 28×9-15-12PR front, 6.50-10-10PR rear

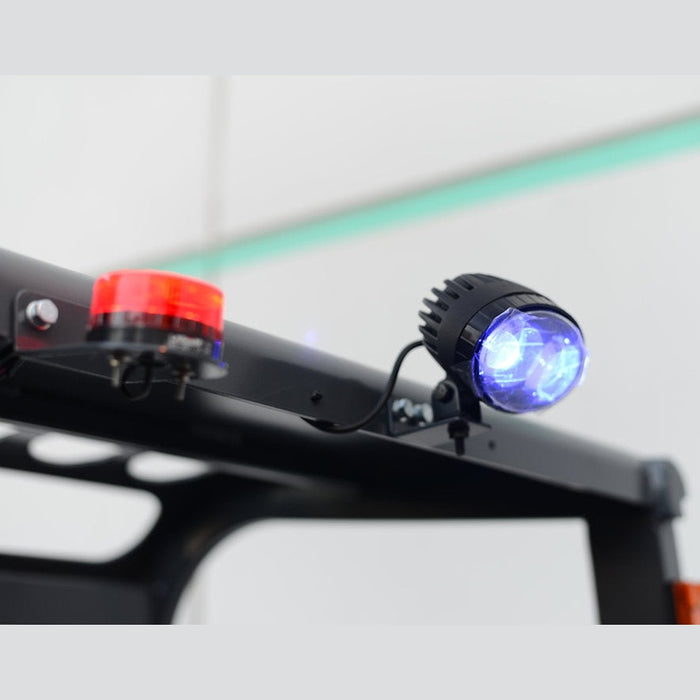

• Enlarged, raised overhead guard with large arc-shape front leg for through-mast visibility
• Semi-suspension seat, small-diameter steering wheel, electro-hydraulic direction switch
• Cushion-connected, full-suspension cab — absorbs chassis vibration
• Lowering damping device inside the lift system — reduces mast shock when forks descend
• Optimized hydraulic system for lower fuel consumption

• Cascade® side shift carriage (factory-installed)
• Shimadzu® 4-way valve, pre-plumbed for auxiliary hydraulics
• 42 × 4.9 × 1.7-inch forks
• 12V / 60Ah ignition battery

What's the rated capacity and load center?

The EK30TLP is rated to lift 6,000 lb at a 24-inch load center.

What's the lift height and free lift?

Maximum lift height is 185 inches. Free lift height is 37.9 inches — the distance the forks travel before the inner mast begins to extend.

What engine does it use, and is it indoor-rated?

The EK30TLP runs on a Kubota or PSI 2.4L LPG engine rated 63 HP at 2,700 rpm. The engine meets Tier 4 EPA standards and the CARB 4 regulation — the emissions baseline most operators look for when running a propane forklift in mixed indoor-and-outdoor environments.

What attachments come standard?

A Cascade® side shift carriage is factory-installed, and a Shimadzu® 4-way valve is pre-plumbed for auxiliary hydraulic attachments — so the truck is ready for a side shift workflow out of the box and ready to accept additional attachments later without re-piping.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
