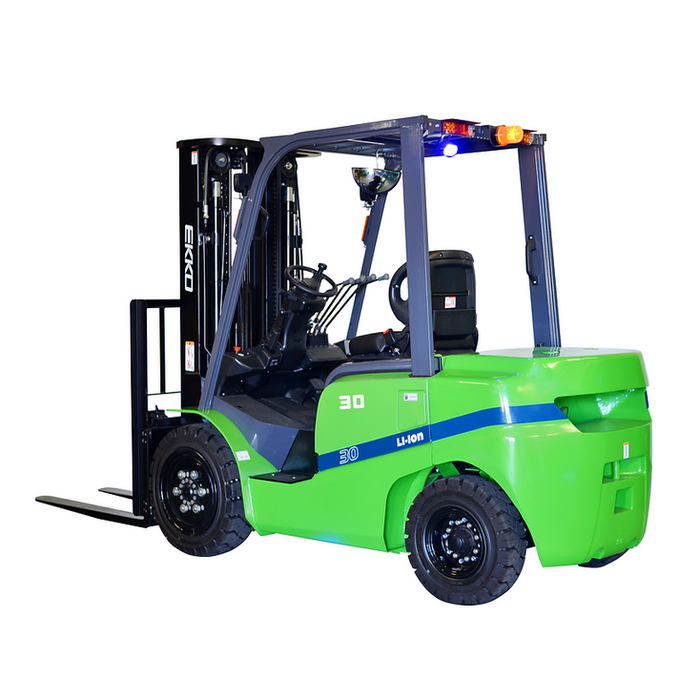

The EKKO EK30GT-Li is a 6,000 lb capacity four-wheel lithium-ion electric counterbalanced forklift sized for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Maximum lift height is 185 inches (15.4 feet) with 37.9 inches of free lift. The truck ships with an 80V / 230 Ah lithium-ion battery and a 3-phase 480V charger (220V and 110V chargers optional), rolling on solid pneumatic tires for warehouse and yard use.
EKKO drives the EK30GT-Li with an InMotion® controller and pre-installs two attachment-grade features at the carriage: a Cascade® side shift and a Shimadzu® 4-way valve, pre-plumbed for auxiliary hydraulic attachments. The side shift handles lateral pallet placement without re-steering the truck; the 4-way valve leaves the EK30GT-Li ready for attachment swaps later without re-piping the hydraulic system.

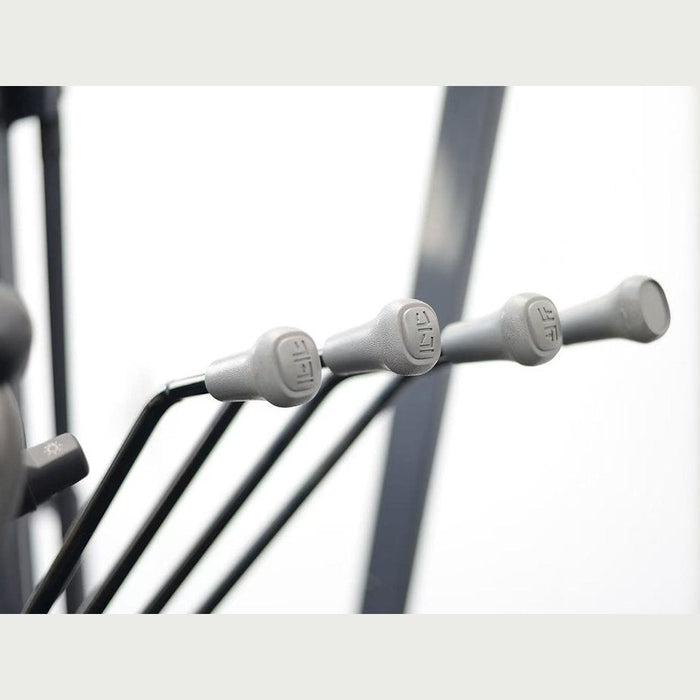

Hydraulic function levers drive the Cascade® side shift and Shimadzu® 4-way valve on the EK30GT-Li.
The chassis and mast use robotic welding for consistent weld quality at the structural joints. Wheelbase is 66.9 inches, overall length with forks is 148 inches (106 inches without forks), and overall width is 48.2 inches. Service weight is 9,788 lb — confirm dock plate, ramp, and floor load ratings against that figure before scheduling delivery. The lowered mast height is 86.2 inches.

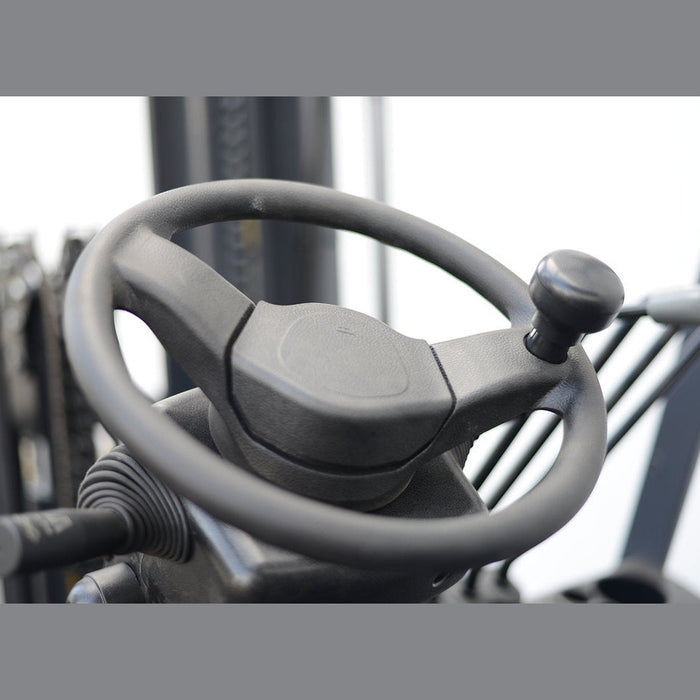

EK30GT-Li steering wheel with a single-hand spinner knob for one-handed maneuvering.
Travel speed is 9.3 mph laden and 9.3 mph unladen — the laden and unladen speeds are identical, so loaded throughput matches empty-truck handling time. Tilt is 6 degrees forward and 6 degrees back. Minimum outside turning radius is 96.2 inches; ground clearance at the mast is 4.7 inches. The service brake is a hydraulic foot pedal.
Charger note: the standard charger is 3-phase 480V — industrial-grade infrastructure that warehouses and distribution facilities typically have on hand. If your facility runs single-phase 220V or 110V instead, EKKO offers those charger variants as optional alternatives at order time.
Features
+-
6,000 lb load capacity at a 24-inch load center
185-inch (15.4 ft) maximum lift height with 37.9-inch free lift
InMotion® controller
80V / 230 Ah lithium-ion battery included
3-phase 480V charger included (220V and 110V chargers available as optional alternatives)
Cascade® side shift — factory-installed
Shimadzu® 4-way valve — pre-plumbed for auxiliary hydraulic attachments
Solid pneumatic tires sized for warehouse and yard surfaces
Hydraulic foot-pedal service brake
Steel construction with robotic welding

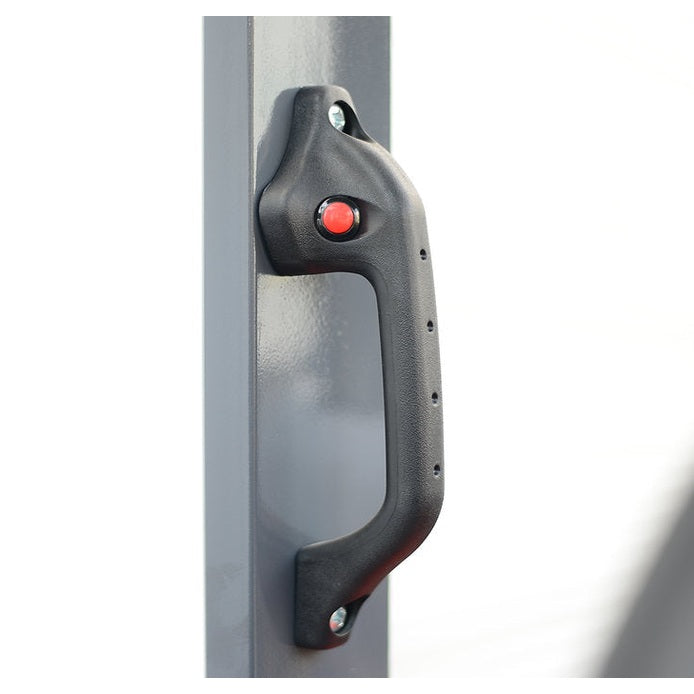

Ergonomic handle and controls
9.3 mph travel speed, identical laden and unladen
Tilt 6° forward / 6° back
What's Included
+-
80V / 230 Ah lithium-ion battery
3-phase 480V charger (with optional 220V and 110V alternatives at order time)
Cascade® side shift (factory-installed)
Shimadzu® 4-way valve, pre-plumbed for auxiliary hydraulics
42.1-inch forks
Specifications
+-
EKKO EK30GT-Li Specifications
Model
EK30GT-Li
Drive type
Lithium electric
Driving mode
Seated
Load capacity
6,000 lb
Load center distance
24 in
Lift height
185 in (15.4 ft)
Free lift
37.9 in
Lowered mast height
86.2 in
Wheelbase
66.9 in
Overall length with forks
148 in
Overall length without forks
106 in
Overall width
48.2 in
Minimum outside turning radius
96.2 in
Ground clearance (at mast)
4.7 in
Service weight
9,788 lb
Travel speed (laden / unladen)
9.3 / 9.3 mph
Tilt (forward / backward)
6° / 6°
Fork length
42.1 in
Tire material
Solid pneumatic
Service brake
Hydraulic foot pedal
Battery
80V / 230 Ah lithium-ion
Charger (standard)
3-phase 480V
Charger (optional)
220V or 110V
Controller
InMotion®
Side shift
Cascade® (factory-installed)
4-way valve
Shimadzu® (pre-plumbed)
Warranty
+-
The EK30GT-Li ships with a 3-year limited warranty as published by EKKO. Specific coverage terms are documented in the EKKO warranty packet that accompanies the unit.
FAQ
+-
What's the rated capacity and load center?
The EK30GT-Li is rated to lift 6,000 lb at a 24-inch load center.
What's the lift height and free lift?
Maximum lift height is 185 inches (15.4 feet). Free lift height is 37.9 inches — the distance the forks travel before the inner mast begins to extend.
Does the battery and charger come with the truck?
Yes — the 80V / 230 Ah lithium-ion battery is included. The standard charger is 3-phase 480V. If your facility runs single-phase 220V or 110V instead, those charger variants are available as optional alternatives at order time.
Will my facility's electrical service support the standard charger?
The standard 3-phase 480V charger is industrial-grade — typical of warehouses, distribution centers, and manufacturing facilities. Smaller shops, residential-adjacent buildings, and many light-commercial spaces only have single-phase 220V or 110V service. Confirm your panel rating with an electrician before ordering, and request the 220V or 110V optional charger if your service is single-phase.
What attachments come standard?
A Cascade® side shift carriage is factory-installed, and a Shimadzu® 4-way valve is pre-plumbed for auxiliary hydraulic attachments. The truck is ready for side-shift workflow out of the box and ready to accept additional attachments later without re-piping.
