EKKO EK25D Forklift with solid pneumatic tires 5000 lbs., cap.

The EKKO EK25D is a 5,000 lb capacity diesel forklift built for everyday material handling in warehouses, distribution centers, and outdoor yards. A Mitsubishi 4EG engine drives the truck to a 185-inch maximum lift height and a 10.6 mph loaded travel speed — vertical reach for high-bay racking and the diesel torque profile to handle full-capacity loads across uneven yard surfaces.

Solid pneumatic tires (7.00-12 front, 6.00-9 rear) handle smooth indoor floors and rough outdoor surfaces alike without going flat. Service weight is 8,465 lb, paired with a 45.2-inch overall width and 62.9-inch wheelbase, so the truck stays maneuverable inside trailers and at dock doors without giving up stability margin at the 5,000 lb capacity tier.

EKKO manufactures Class I–V material handling equipment from a 50,000-plus square-foot facility in Pomona, California. The EK25D is Tier 4 EPA compliant — clearance that matters to operators running in jurisdictions with strict on-site emissions thresholds.

The operator station is built around long-shift comfort. An enlarged cab footprint pairs with a heightened overhead guard whose large arc-shaped front leg opens forward sightlines for forks-up work. A multifunctional suspended seat increases driver support, reduces vibration, and balances the operator's weight across the workday. The steering-wheel adjustment mechanism is positioned for one-handed reach, so the operator can dial in the right driving posture without leaving the seat. An impedance-composited muffler trims operating sound output for environments where noise compliance matters.

Under the hood, the Mitsubishi 4EG produces 49 hp at 2,250 rpm — sized for sustained pallet handling at the 5,000 lb capacity tier without leaving headroom unused. A 12 V / 80 Ah starter battery handles cold starts.

• 5,000 lb capacity at a 24-inch load center.
• Mitsubishi 4EG diesel engine rated 49 hp at 2,250 rpm.
• Tier 4 EPA compliant.
• Solid pneumatic tires (7.00-12 front, 6.00-9 rear) for indoor and outdoor versatility without flat-tire downtime.
• Enlarged operator space with heightened overhead guard and a large arc-shaped front leg for forward visibility on lifts.
• Multifunctional suspended seat for vibration damping and operator-weight balancing across long shifts.

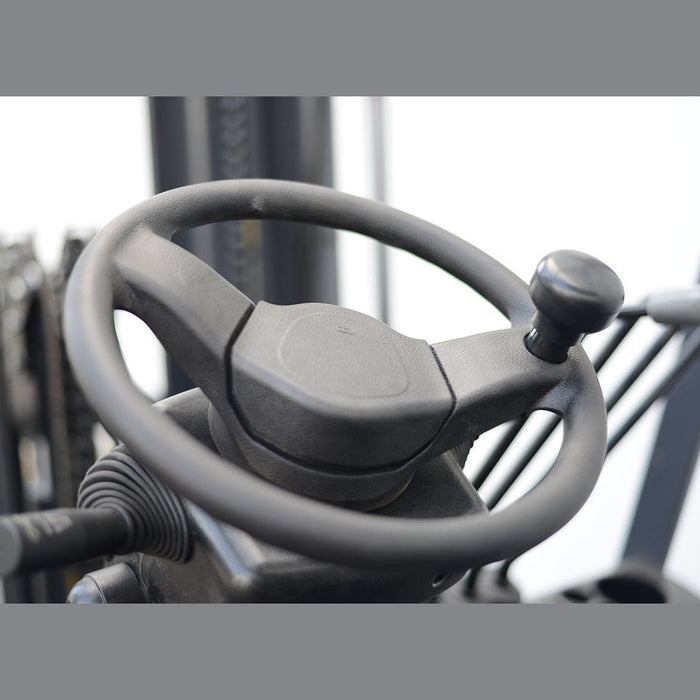

• Adjustable steering-wheel mechanism positioned for in-seat adjustment.
• Impedance-composited muffler reduces sound output.
• Hydraulic floor pedal service brake.
• 12 V / 80 Ah starter battery.

What fuel does the EK25D run on?

Diesel. The engine is Tier 4 EPA compliant.

What engine is in the truck?

A Mitsubishi 4EG diesel rated 49 hp at 2,250 rpm.

What is the lift height and free lift?

Maximum lift height is 185 in. Free lift is 43.7 in. With forks fully raised, overall height is 225 in.

What kind of tires does it come with?

Solid pneumatic tires — 7.00-12-12PR on the drive axle and 6.00-9-10PR on the steer axle. Solid pneumatic construction handles indoor smooth-floor work and outdoor yard surfaces without going flat.

What is the service weight?

8,465 lb. Confirm your floor, ramp, dock plate, and trailer floor ratings can support the loaded weight (truck + 5,000 lb payload) before commissioning.

What does the operator station include?

An enlarged cab with a heightened overhead guard, a multifunctional suspended seat for vibration damping and operator-weight balancing, an adjustable steering-wheel mechanism positioned for one-handed reach, and an impedance-composited muffler to trim operating sound.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
