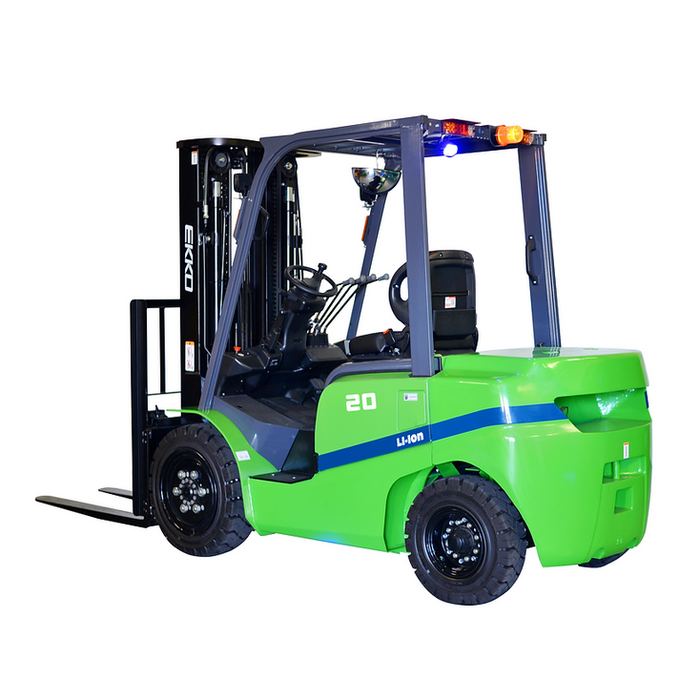

EKKO EK20GT-Li Lithium-Powered Forklift

The EKKO EK20GT-Li is a 4-wheel lithium-ion electric forklift built for 4,000 lb material handling work in loading docks, stock rooms, manufacturing floors, and warehousing. It lifts to 185 in, runs on an InMotion® AC controller with an 80 V / 205 Ah lithium battery, and ships with a matching 3-Phase 480V charger plus the Cascade® Side Shift and a pre-plumbed Shimadzu® 4-Way Valve.

EKKO Lifts has manufactured Class I–V material handling equipment from its 50,000+ sq ft facility in Pomona, California since 2008. Lithium-ion battery technology is a meaningful part of EKKO’s identity — lithium models carry the -Li suffix on the model number, signalling the faster charging, lower maintenance, and longer cycle life that lithium chemistry provides over lead-acid. The EK20GT-Li is covered by EKKO’s 3-year limited warranty.

The 4-wheel counterbalance design carries an overall width of 45.2 in and a wheelbase of 63.7 in, with an outside turning radius of 86.2 in — sized for standard warehouse aisles rather than the very-narrow-aisle work a 3-wheel truck handles. Service weight is 7,594 lb, lowered mast height is 83 in, free lift is 43.7 in, and mast tilt is 6° forward / 6° back. Solid pneumatic tires cover smooth indoor floors and lightly worn outdoor surfaces.

• 80 V / 205 Ah lithium-ion battery with a matching 3-Phase 480V charger — both included; 220V and 110V chargers available as optional configurations.
• InMotion® AC controller for smooth speed control and energy-efficient operation.
• Cascade® Side Shift integrated; Shimadzu® 4-Way Valve pre-plumbed for additional hydraulic attachments.
• 4-wheel counterbalance design with an 86.2 in outside turning radius and 45.2 in overall width.
• Solid pneumatic tires for mixed indoor / outdoor surfaces.
• Mast tilt 6° forward / 6° back; free lift 43.7 in; lift height 185 in (15.4 ft).
• Seated rider operation with ergonomic handle and controls.
• Hydraulic foot-pedal service brake.
• Steel construction with robotic welding.
• 3-year limited warranty.

The EK20GT-Li is positioned by the supplier for material handling in:

• Loading and unloading trucks
• Loading docks
• Stock rooms
• Manufacturing floors
• Warehousing

Solid pneumatic tires support both smooth-floor indoor work and the lightly worn paved surfaces typical at dock and yard transitions.

• EKKO EK20GT-Li 4-wheel lithium electric forklift (with ergonomic handle and controls, seated rider operation, and hydraulic foot-pedal service brake)
• 80 V / 205 Ah lithium-ion battery
• 3-Phase 480V charger (220V and 110V optional)
• Cascade® Side Shift
• Shimadzu® 4-Way Valve (pre-plumbed)

The EK20GT-Li is covered by EKKO’s 3-year limited warranty. Lithium battery and charger warranty terms may run separately from the truck warranty — contact Forklift King to confirm the per-component coverage before ordering.

What electrical service does the charger need?

The standard charger is configured for 3-Phase 480V service. EKKO also offers 220V and 110V charger options for facilities without 3-phase 480V available. Confirm your facility’s electrical service with us before ordering so the correct charger ships with the truck.

Why lithium-ion over a lead-acid battery?

Lithium-ion batteries deliver consistent power output across the full discharge cycle (no end-of-shift slowdown), accept opportunity charging during breaks without harming cycle life, and require no watering or terminal-cleaning maintenance. Cycle life is materially longer than lead-acid for comparable energy storage, which is why lithium is meaningful enough to EKKO that the truck carries the -Li suffix on the model number.

What ships with the truck?

The truck includes the 80 V / 205 Ah lithium battery, the 3-Phase 480V charger (configured for your facility), the Cascade® Side Shift, and the pre-plumbed Shimadzu® 4-Way Valve — no separate power package or attachment package to source before the truck can start working.

What aisle width should I plan around?

The 4-wheel counterbalance design has an 86.2 in outside turning radius and a 45.2 in overall width. The supplier did not publish a specific right-angle stack aisle dimension — confirm aisle and turning requirements with us before committing to a rack layout, especially if you’re comparing this truck against a 3-wheel counterpart for narrow-aisle work.

Manual and technical documents available on request — contact support@forkliftking.com or call +1 (307) 441-9566.
