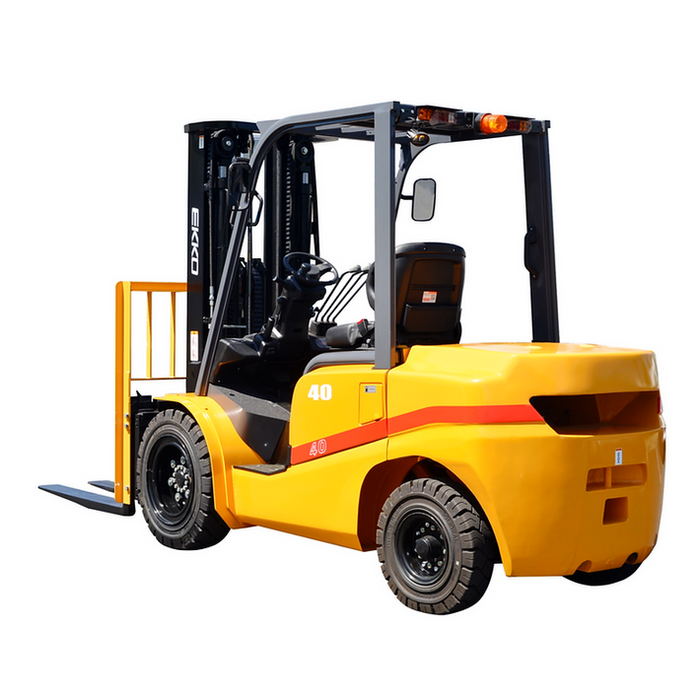

EKKO EK20D Forklift with solid pneumatic tires 4000 lbs., cap.

The EKKO EK20D is a 4,000 lb capacity diesel counterbalanced forklift built for warehousing, distribution, and outdoor-friendly material handling. It runs on a Mitsubishi 4EG engine rated 49 HP at 2,250 rpm and meets Tier 4 EPA standards. Maximum lift height is 185 inches with 43.7 inches of free lift, and the truck rolls on solid pneumatic tires sized for a long working life on mixed warehouse and yard surfaces.

EKKO designed the operator compartment around the operator's body. A multifunctional suspended seat supports the driver, dampens vibration through the chassis, and balances the operator's weight so a full shift takes less of a toll on the lower back. An impedance composited muffler reduces the cab's noise floor — a meaningful difference in indoor-adjacent work where diesel sound carries.

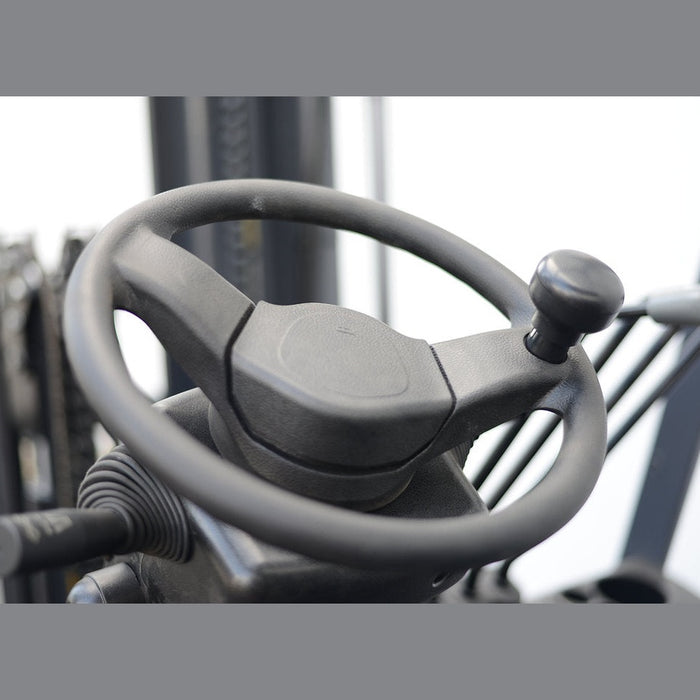

The steering wheel sits on an adjustable column so each operator can dial in their own column angle and reduce shoulder fatigue across a long shift. The overhead guard is enlarged and raised, with a large arc-shape front leg that opens up the operator's line of sight through the mast.

The chassis is sized for warehouse and yard work that calls for a diesel counterbalanced truck. Wheelbase is 62.9 inches, overall length with forks is 141.8 inches (96.8 inches without forks), and overall width is 45.2 inches. Maximum travel speed is 10.6 mph loaded and 11.8 mph unloaded.

• 4,000 lb load capacity at a 24-inch load center
• 185-inch maximum lift height with 43.7-inch free lift
• Mitsubishi 4EG diesel engine — 49 HP at 2,250 rpm, Tier 4 EPA compliant
• Multifunctional suspended seat — supports the driver, reduces vibration, balances operator weight
• Adjustable steering column to limit operator arm and shoulder fatigue
• Impedance composited muffler — reduces cab noise output

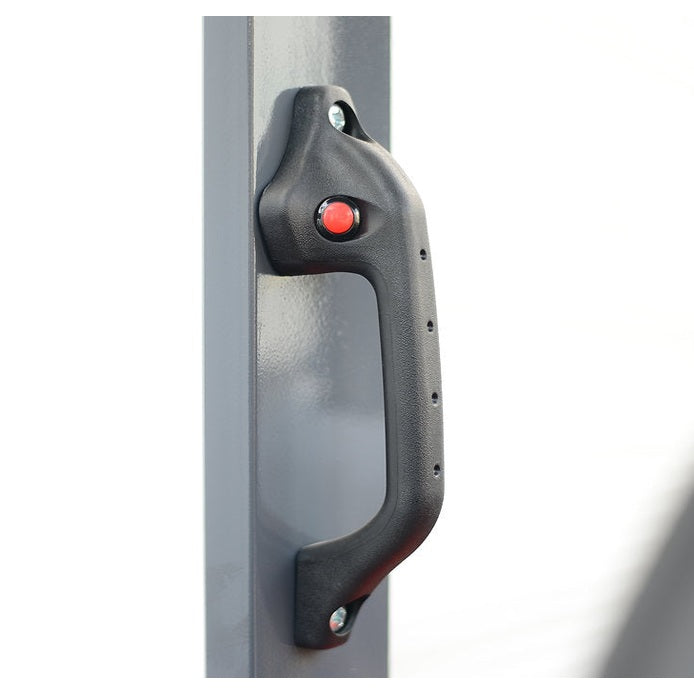

• Enlarged, raised overhead guard with large arc-shape front leg for through-mast visibility
• Hydraulic floor-pedal service brake
• Solid pneumatic tires — 7.00-12-12PR front, 6.00-9-10PR rear

What's the rated capacity and load center?

The EK20D is rated to lift 4,000 lb at a 24-inch load center.

What's the lift height and free lift?

Maximum lift height is 185 inches. Free lift height is 43.7 inches — the distance the forks travel before the inner mast begins to extend.

What engine does it use?

The EK20D runs on a Mitsubishi 4EG diesel engine rated 49 HP at 2,250 rpm. The engine is Tier 4 EPA compliant — the emissions baseline for diesel forklifts working in mixed indoor-adjacent and outdoor environments.

How loud is it in the cab?

The EK20D uses an impedance composited muffler to reduce sound output. EKKO publishes the muffler as a noise-reduction feature without a specific dB figure; the difference is most noticeable in indoor-adjacent work where diesel exhaust noise typically carries.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
