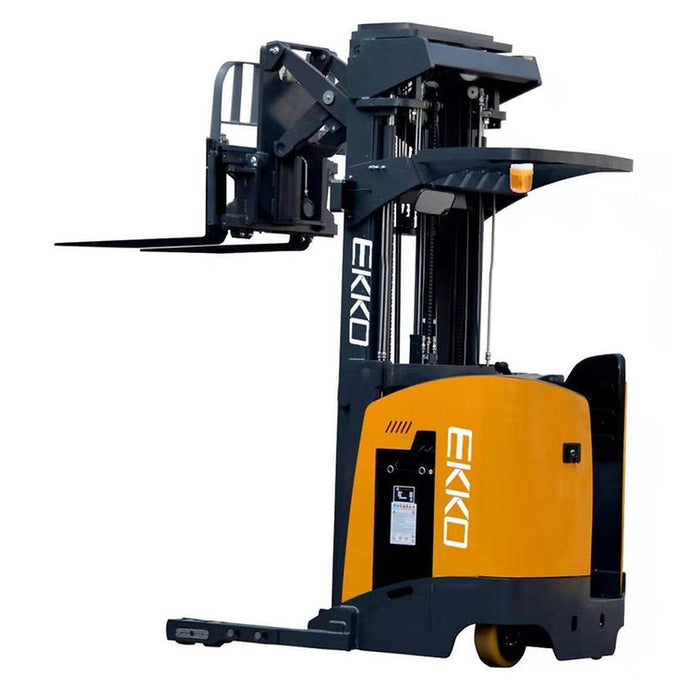

EKKO EK18RR Stand-Up NA Reach Truck 4000 lb Cap., 275"Lift Ht.

The EKKO EK18RR is a stand-up narrow-aisle reach truck rated for 4,000 lb at a 24" load center, with a 3-stage triple mast that lifts to 275 inches and a pantograph that extends 22.44 inches forward of the wheelbase. It's built for loading and unloading trucks at the dock, putaway and retrieval in selective pallet rack, and high-density warehousing where aisle width and lift height both matter.

The EK18RR pairs a 48V / 420Ah industrial battery with a 48V / 65A automatic charger — both included — and runs a German-sourced AC drive motor through a Curtis Instrument controller. Electronic Power Steering, side-shifting forks, free lift, and forward/backward tilt are standard. The chassis is robotic-welded steel; front and rear wheels are polyurethane for indoor concrete; the operator station is a stand-up compartment with ergonomic, grouped controls. EKKO Lifts backs the truck with a 3-year limited warranty.

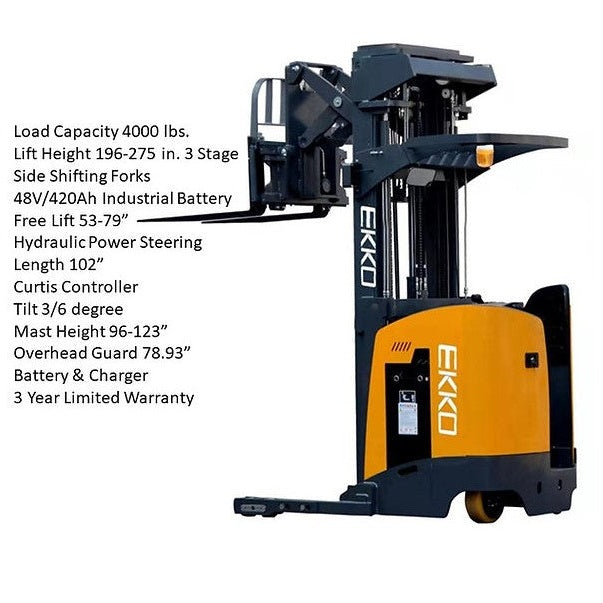

• 3-stage triple mast — 275" maximum lift height, 79.92" free lift, 123.27" lowered mast height
• 22.44" reach distance via the pantograph for selective pallet rack putaway and retrieval
• Side-shifting forks with 3-way valve for left-right load alignment without repositioning the truck
• Electronic Power Steering (EPS) to reduce operator fatigue across long shifts
• German AC drive motor at 48V / 6,000 W, paired with a 48V / 11,000 W hydraulic lifting motor
• Curtis Instrument controller for consistent travel speed across the full operating range
• Electromagnetic and drum braking for secure stopping under load
• LED head lights, turn signals, and brake lights for warehouse visibility and signaling
• Polyurethane front and rear wheels sized for indoor concrete
• Adjustable forks 7.9–35.04 inches wide, 45 inches long, 1.58" thick
• Robotic-welded steel chassis with heavy-duty I-beam telescoping mast
• Stand-up ergonomic operator compartment with controls grouped at the handle

• EKKO EK18RR stand-up reach truck
• 48V / 420Ah industrial battery
• 48V / 65A automatic charger (210A / 210VAC plug-in)

EKKO Lifts backs the EK18RR with a 3-year limited warranty (the EKKO Advantage Warranty), the standard coverage across EKKO’s Class I–V product lines.

Will the EK18RR fit my warehouse aisle?

The truck needs about 116.93 inches of aisle width to operate across a 1000×1200 mm pallet, or 118.9 inches along an 800×1200 mm pallet. Turning radius is 75 inches. Measure your narrowest active aisle and compare against the larger of the two figures.

Will the EK18RR clear my doorways and ceiling?

Lowered mast height is 123.27 inches (10 ft 3 in). Maximum lift is 275 inches (22 ft 11 in). Verify doorway height for transit and ceiling height above any racking the truck needs to reach.

What’s the battery runtime per charge?

The 48V / 420Ah industrial battery and 48V / 65A automatic charger ship as standard. Runtime depends on duty cycle — lifts per hour, average lift height, load weight, travel distance. Send us your shift profile and we’ll relay an estimate from EKKO.

Is the charger included in the price?

Yes. The 48V / 65A automatic charger ships with the truck and plugs into a 210A / 210VAC outlet. Battery is also included.

How does the EK18RR ship and arrive?

Reach trucks of this class ship via LTL freight in a crate, with the mast and operator components configured at the factory. Confirm freight specifics (dock-to-dock, liftgate, residential) with us before placing the order so the carrier matches your receiving setup.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
