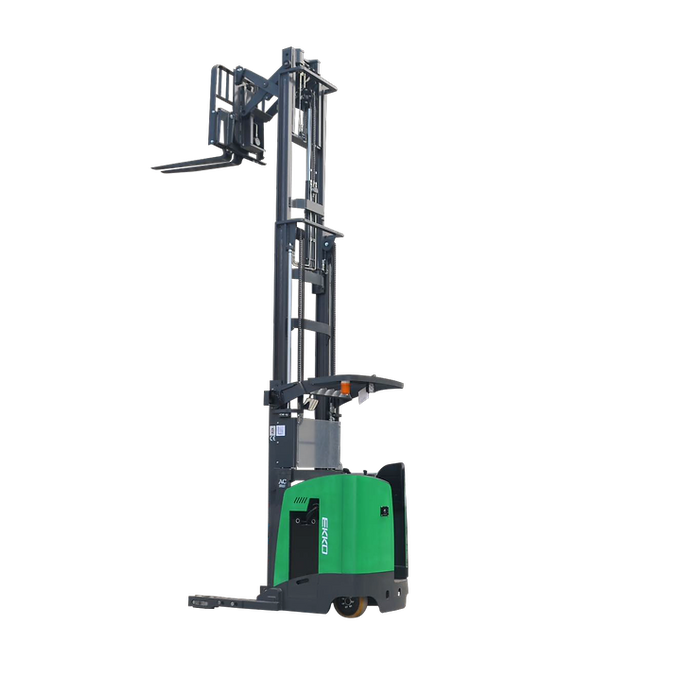

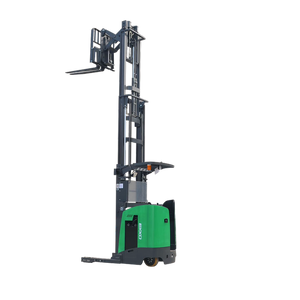

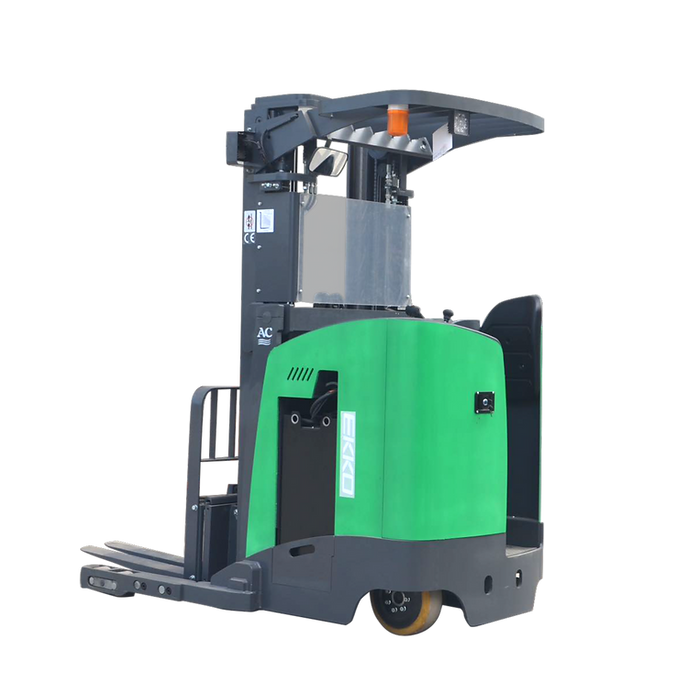

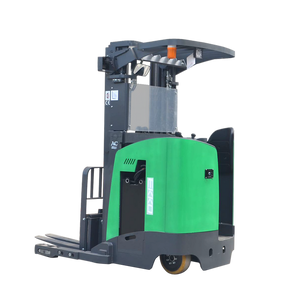

EKKO EK18RR-335Li Stand-Up NA Reach Truck 4000 lb Cap.

Name: EKKO EK18RR-335Li Stand-Up NA Reach Truck 4000 lb Cap.
Brand: EKKO Lifts
SKU: EK18RR-335Li
Price: 59999.0 USD
Availability: InStock

SKU EK18RR-335Li

In Stock

$59,999.00 - $59,999.00

$59,999.00

$59,999.00 - $59,999.00

$59,999.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EK18RR-335Li is a stand-up narrow-aisle reach truck rated for 4,000 lb at a 24-inch load center, with a triple mast that raises loads to 335 inches. It brings together the reach of a dedicated reach truck and the maneuverability of a walkie stacker, sized for loading and unloading trucks, working loading docks, and moving pallets through stock rooms, manufacturing floors, and high-bay warehouse racking.

Drive and lift are fully electric on a 48-volt system. A German AC drive motor moves the truck, an 11,000-watt lift motor runs the mast, and a Curtis instrument controller manages power delivery. Electronic power steering (EPS) cuts operator effort through the repeated directional changes that narrow-aisle work demands. The chassis is steel with robotic welding, and polyurethane wheels suit the smooth concrete of indoor warehouse floors.

A reach distance of 22.44 inches lets the operator place and retrieve pallets deep in racking from the aisle, while 53.15 inches of free lift raises the forks before the mast extends — useful inside trailers and under low door headers. Side-shifting forks on a 3-way valve, plus mast tilt, support precise load placement, and the forks adjust from 7.9 to 35.04 inches for varied pallet widths.

The EK18RR-335Li runs on a 48V/350Ah lithium-ion battery, and both the battery and a matching charger are included. It is one of several lithium-powered trucks EKKO builds for indoor material handling, and it carries a 3-year limited warranty.

Features

4,000 lb capacity at a 24-inch load center.
Triple mast with 335 inches of raised height and 53.15 inches of free lift.
22.44-inch reach distance for deep rack pick-and-place from the aisle.
Side-shifting forks (3-way valve) and mast tilt for precise load placement.
Forks adjustable from 7.9 to 35.04 inches for varied pallet widths.
48V/350Ah lithium-ion battery with charger included.
German AC drive motor and 11,000-watt lift motor managed by a Curtis instrument controller.
Electronic power steering (EPS) and polyurethane wheels for indoor maneuvering.
Steel construction with robotic welding.

What's Included

48V/350Ah lithium-ion battery
Matching charger (440V three-phase input; 48VDC/200A output)

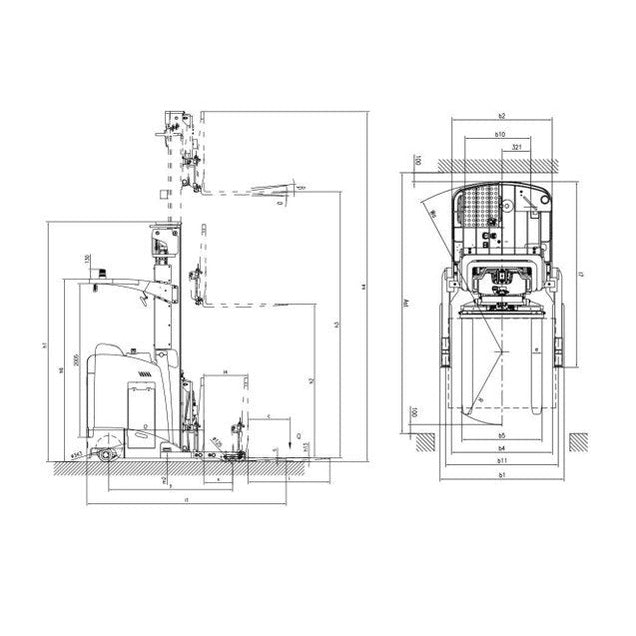

Specifications

EKKO EK18RR-335Li Specifications
Model	EK18RR-335Li
Power	Electric (drive and lift)
Load capacity	4,000 lb
Load center distance	24"
Raised (lifting) height	335"
Free lift	53.15"
Reach distance	22.44"
Lowered mast height	96.42"
Overall length (extended)	102.28"
Overall width	54.72"
Turning radius	75"
Mast	Triple
Fork size (thickness / width / length)	1.58" / 4.72" / 42"
Fork adjustment width	7.9"–35.04"
Side shift	Side-shifting forks (3-way valve)
Drive motor	48V / 6,000 W
Lift motor	48V / 11,000 W
Steering	Electronic power steering (EPS)
Battery	48V / 350Ah lithium-ion
Charger	440V three-phase input; 48VDC / 200A output
Wheels	Polyurethane
Service weight	8,700 lb

Warranty

The EK18RR-335Li is covered by a 3-year limited warranty.

FAQ

Will it work in a narrow aisle?

The EK18RR-335Li is a narrow-aisle reach truck with a 75-inch turning radius and 22.44 inches of reach, so it picks and places pallets deep in racking from the aisle. The exact aisle width it needs depends on your pallet size and load, so contact us with your rack layout to confirm the fit.

Are the battery and charger included?

Yes. The truck ships with its 48V/350Ah lithium-ion battery and a matching charger.

What power does the charger require?

The included charger takes a 440V three-phase input and outputs 48VDC at 200A. Confirm your facility's three-phase supply before installation.

Is it suitable for outdoor use?

It is built for indoor work. The electric drivetrain and polyurethane wheels are matched to the smooth concrete of warehouse and dock floors, not rough or uneven outdoor surfaces.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
